CL DH4X1-150S 1.5 INCH R/G ORG SPLI
$168.90/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Carlon
Mfg Catalog # DH4X1-150S
North Coast Part # 423607

Specifications

Ordering

  • EAN: 0791207214221
  • Customs Tariff Number: 3926909990

Dimensions

  • Product Net Weight: .22 lb99.773 g

Container Information

  • Package Level 2 Units: 150 ft
  • Package Level 2 Width: 1 in25 mm
  • Package Level 2 Height: 1 in25 mm
  • Package Level 2 Depth / Length: 1 in25 mm

Additional Information

  • Application: Riser-Gard is suitable for use in vertical runs in a shaft or between floors, as well as areas other than the plenum.
  • Brand / Label: Carlon
  • Color: Orange
  • Inside Diameter: 1.54 in
  • Material: PVC
  • Nominal Size: 1-1/2 in
  • Number of Batteries: 0
  • Outside Diameter: 1.91 in
  • Product Name: FLEXIBLE TUBING OF PVC

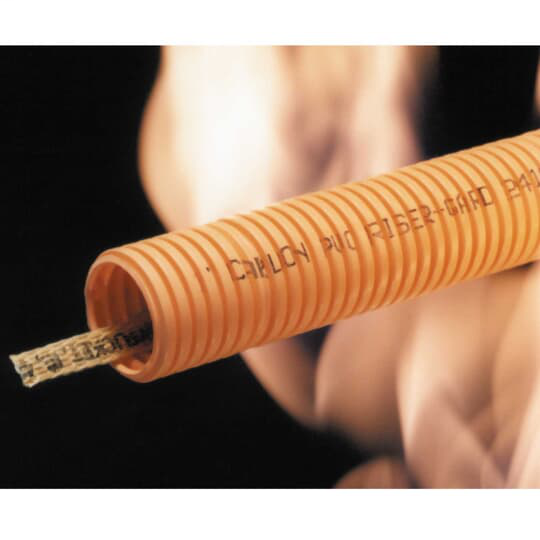

  • Product Type: Riser-Gard Flexible Raceway
  • Special Functions: UL Listed and is available with tape pre-installed.
  • Standards: UL e151168
  • UPC: 791207214221

Classifications

  • ETIM 6: EC001175 - Corrugated plastic hose
  • ETIM 7: EC001175 - Corrugated plastic hose
  • UNSPSC: 39131706
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 5535 >> Electrical conduit

Overview

UPC 79120721422
Family Brand Name Thomas & Betts
GTiN 00791207214221
Length 150 ft
Color Orange
Type Raceway
Diameter 1.54 in ID x 1.91 in OD
Material PVC
Applications Riser-Gard is Suitable for use in Vertical Runs in a Shaft or Between Floors, as Well as Areas other than the Plenum
Trade Size 1-1/2 Inch
Standard UL E151168
Temperature Rating -20 to 40 C
Outside Diameter 1.91 in
Inside Diameter 1.54 in
Standard Packaging Qty 150 ft/Coil
Wall Thickness 0.08 in
Sub Brand Carlon, Riser-Gard
