CL S289NJN 4 INCH X 2 INCH INTERMED
$178.61/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Carlon
Mfg Catalog # S289NJN
North Coast Part # 70203

Features

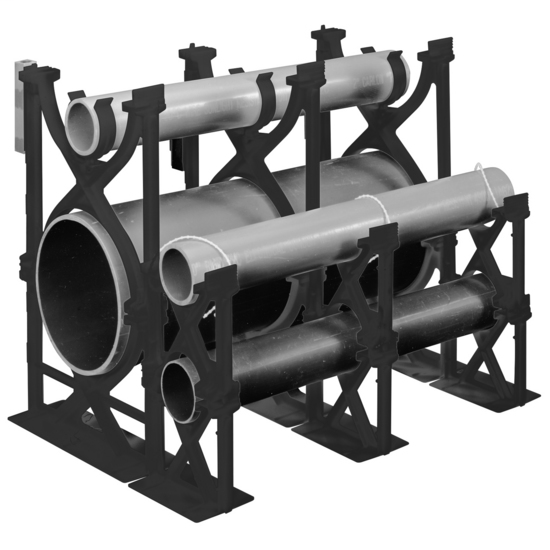

  • The locking keyways provide for the use of a beaded strap that secures the top section of the conduit.
  • Snap-Loc rebar holder provides stabilization on large banks of spacers.
  • Snap-Loc Spacers provide a side dovetail rail-and-groove design enabling side-by-side interchangeability of conduit spacer sizes while maintaining horizontal stability.
  • Locking keyways incorporated into intermediate spacers eliminate the need for costly top spacers in each size.
  • 1 in. and 2 in. Snap-Loc reducers enable fixturing of 1 in. or 2 in. conduit inside larger spacers.

Application

  • The innovative vertical and horizontal interlocking Snap-Loc design has tapered joining slots with maximum tolerances for easy jobsite assembly.
  • Non-metallic Snap-Loc Spacers are designed specifically for use with non-metallic duct, with maximum O.D. dimensions as specified in NEMA TC-2, TC-6 and 8, and ASTM F512.
  • Snap-Loc Duct Spacers provide stability, consistent separation and relieve direct stress for duct materials encased in concrete and direct-buy applications.

General

  • Material: Non-Metallic

Dimension Information

  • Dim A (inches): 6.625
  • Dim B (inches): 2.312
  • Dim C (inches): 6.51
  • Size (inches): 4 x 2

Packaging

  • T&B Weight Per UOM: 25 lbs. per 100
  • Package Length: 25.375
  • Package Height: 12.125
  • Outer Package: 60
  • Package Width: 16.875
  • T&B Sold in UOM: Each

Application Support

Notes

  • The use of duct spacers for direct burial may result in excessive point deflections unless proper design engineering is applied, such as the proper compaction of the appropriate backfill material.

Overview

UPC 03448100453
Family Brand Name Carlon
GTiN 00034481004530
Size 4 X 2 in
Type Snap-Loc Spacers & Accessories
Material Non-Metallic
Material Type Non-Metallic

Substitutes (1)
