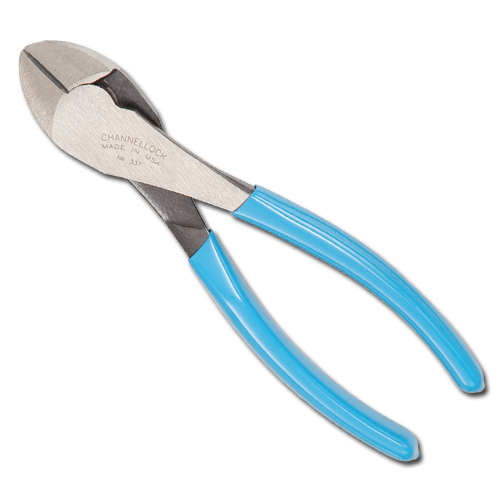

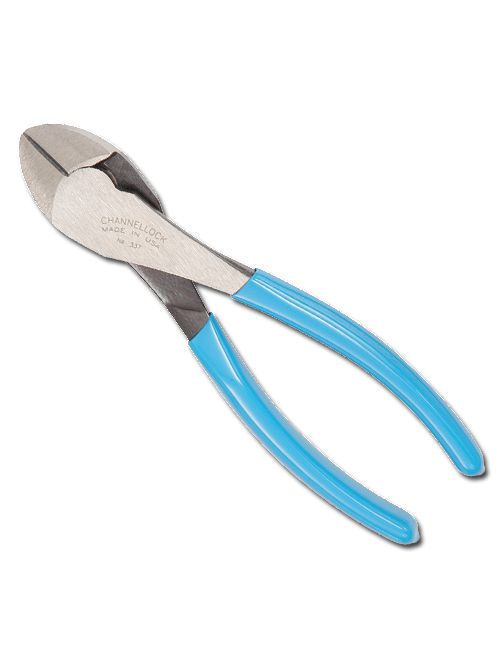

Channellock 337 7 Inch Diagonal Plier Lap Joint
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Channellock
Mfg Catalog # 337
North Coast Part # 272401


  • Weight: 259.00 g
  • (D) Joint Width: 1.18 in
  • (A) Overall Length: 175.00 mm
  • (C) Joint Thickness: 11.00 mm
  • (E) Cutting Edge: 20.00 mm
  • Weight: 0.57 lbs
  • (H) Handle Span: 48.00 mm
  • (B) Jaw Length: 20.00 mm
  • (D) Joint Width: 30.00 mm
  • (C) Joint Thickness: 0.43 in
  • (H) Handle Span: 1.89 in
  • (E) Cutting Edge: 0.79 in
  • (A) Overall Length: 7.00 in
  • (B) Jaw Length: 0.79 in

Features & Benefits

Blue Grips

  • CHANNELLOCK BLUE grips for comfort

C1080 Steel

  • CHANNELLOCK uses high-carbon C1080 steel for superior performance on the job and specially coated for ultimate rust prevention

Knife-And-Anvil Cutting Edge

  • Only CHANNELLOCK uses a knife and anvil style cutting edge to ensure perfect mating and superior cutting edge life

Cutting Edges

  • Laser heat-treated cutting edges last longer

Joint Type

  • High leverage lap joint diagonal


UPC 02558213327
Item Long Description Not all cutting edges are the same -- only CHANNELLOCK uses precision machined knife and anvil style cutting edges to ensure perfect mating and superior cutting edge life. The CHANNELLOCK knife and anvil cutters ensure proper cutting edge alignment, resulting in a clean cut every time. Most manufacturers use two sharp edges which can become misaligned, losing their cutting effectiveness. Experience the difference for yourself. Made in the USA
GTiN 00025582133274
Finish Electronic Coating
Type High-Leverage, Lap Joint
Material CHANNELLOCK Uses High-carbon C1080 Steel For Superior Performance On The Job And Electronic Coating For Ultimate Rust Prevention
Applications Electrical, Home Repair, Auto
Weight 0.57 lb
Handle Type Channellock Blue Grips
Jaw Length 0.79 in
Family Brand Name Channellock
Joint Thickness 0.43 in
Overall Length 7 in
Construction Features Only CHANNELLOCK Uses A Knife And Anvil Style Cutting Edge To Ensure Perfect Mating And Superior Cutting Edge Life
