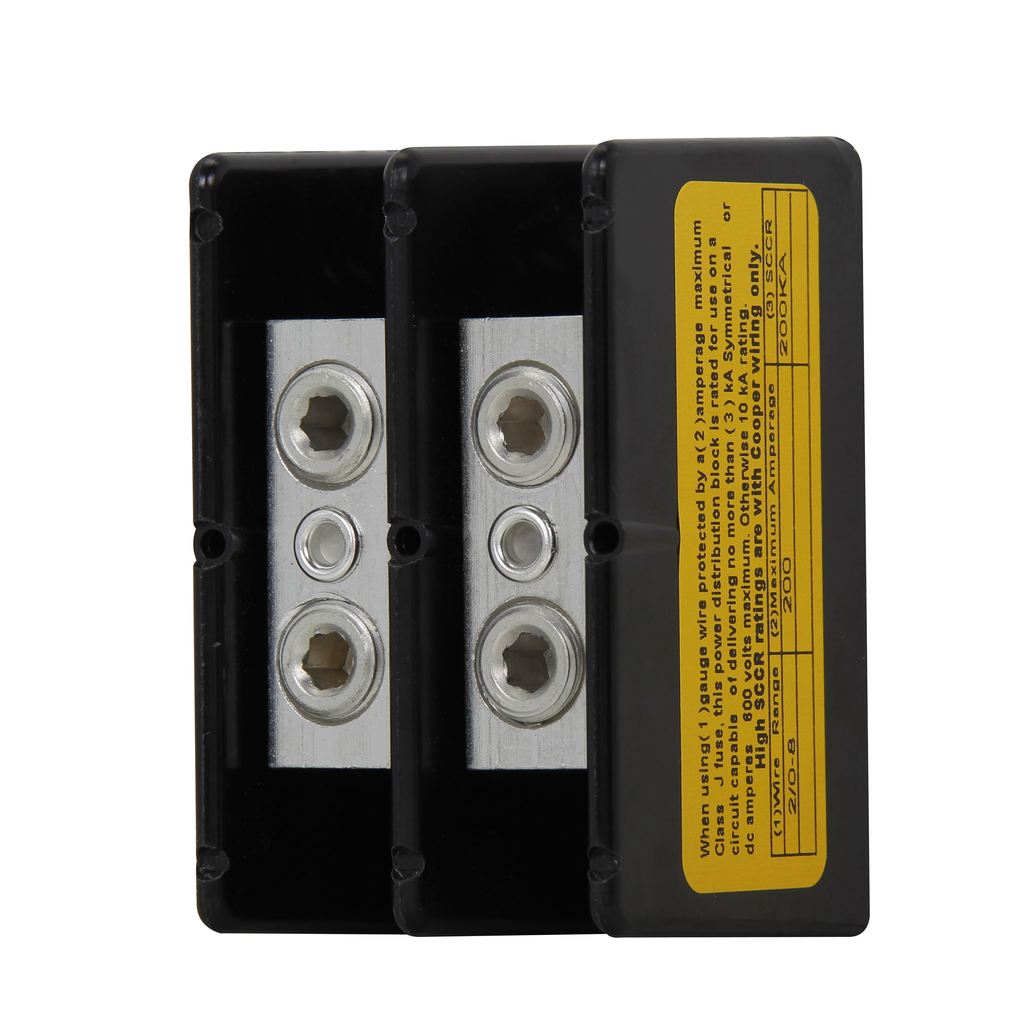

Bussmann Series 16204-2 Power Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$33.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 16204-2
North Coast Part # 879449

Specifications

  • Short Circuit Rating: SCCR: 200 kA
  • Type: Power splicer block
  • Color: Black
  • Connection: Splicer
  • Material: Molded Thermoplastic Base, Tin-plated aluminum connector
  • Voltage Rating: 600 Vac, 600 Vdc
  • Amperage Rating: 175A
  • Number Of Poles: Two-pole

General

  • UPC: 051712148641
  • Product Length/Depth: 2 IN
  • Product Height: 1 IN
  • Product Width: 1 IN
  • Product Weight: .116 LB
  • Warranty: Not Applicable
  • Compliances: Contact factory
  • Certifications: Contact Manufacturer

Overview

UPC 05171214864
GTiN 00051712148641
Length 2 in
Width 1 in
Size 1.88 In Length X 2.88 In Width X 1.75 In Height
Color Black
Voltage 600 Volt
Type Power Splicer Block
Material Molded Thermoplastic Base, Tin-plated Aluminum Connector
Height 1 in
Weight .116 lb
Wire Size 8-00 AWG
Connection Type Splicer
Family Brand Name Bussmann Series
TC Connection Splicer
Amperage 175 Amp
Number of Poles 2 Pole
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Blade Dimensions 2.0000 IN X 1.0000 IN X 1.0000 IN
Sub Brand Bussmann Series
