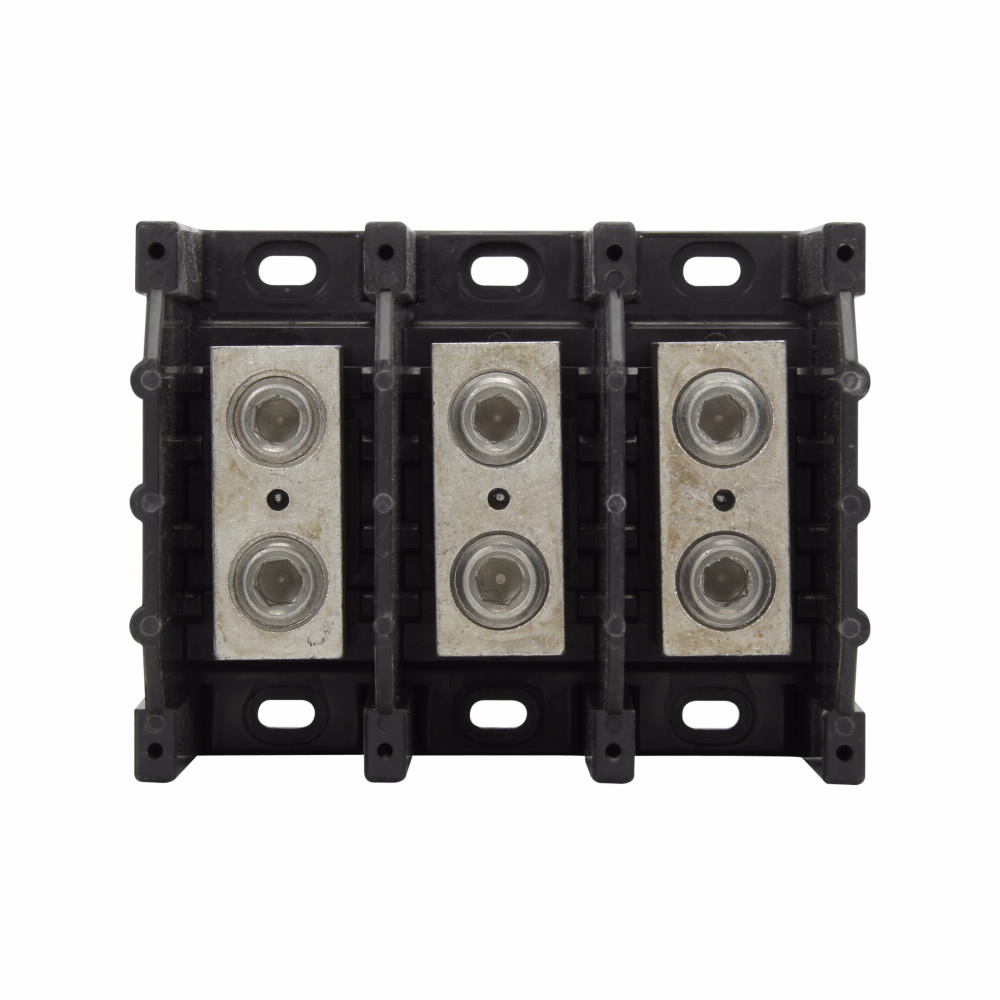

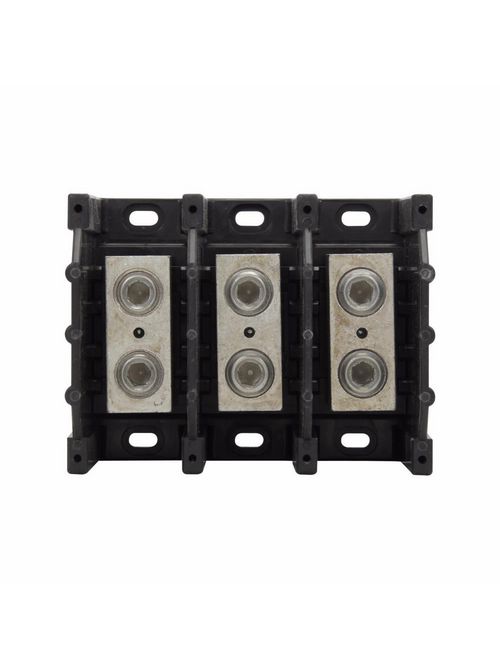

Bussmann Series 16303-3 Power Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$143.38/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 16303-3
North Coast Part # 681340

Specifications

  • Short Circuit Rating: SCCR: 10 kA
  • Type: Power splicer block
  • Color: Black
  • Connection: Splicer
  • Material: Molded Thermoplastic Base, Tin-plated aluminum connector
  • Voltage Rating: 600 Vac, 600 Vdc
  • Amperage Rating: 310A
  • Number Of Poles: Three-pole

General

  • UPC: 051712148719
  • Product Length/Depth: 3.98 IN
  • Product Height: 3.22 IN
  • Product Width: 5 IN
  • Product Weight: 1.49 LB
  • Warranty: Not Applicable
  • Compliances: Contact factory
  • Certifications: Contact Manufacturer

Categories

Overview

UPC 05171214871
Item Long Description Eaton Bussmann series power splicer block, 600 Vac, 600 Vdc, 310A, Power splicer block, Three-pole, Splicer, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
GTiN 00051712148719
Length 3.98 in
Width 5 in
Size 5.21 In Length X 4.00 In Width X 3.32 In Height
Color Black
Voltage 600 Volt
Type Power Splicer Block
Material Molded Thermoplastic Base, Tin-plated Aluminum Connector
Height 3.22 in
Weight 1.49 lb
Wire Size 6 AWG-350 kcmil
Standard CSA,UL
Connection Type Splicer
Family Brand Name Bussmann Series
TC Connection Splicer
Amperage 310 Amp
Number of Poles 3
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Blade Dimensions 3.9800 IN X 5.0000 IN X 3.2200 IN
Sub Brand Bussmann Series
