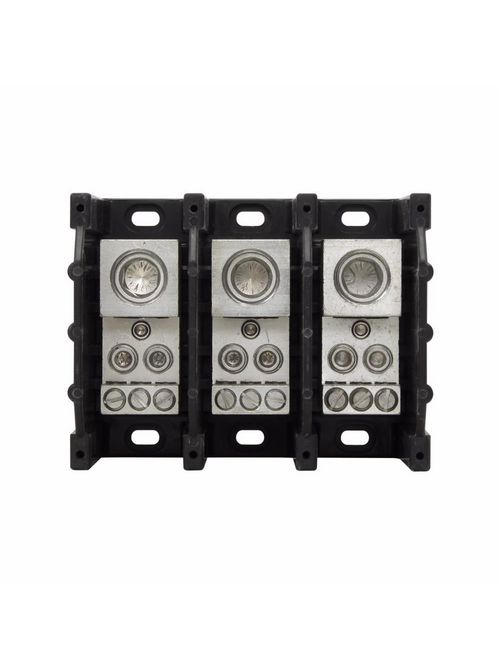

Bussmann Series 16335-3 3-Pole 6 AWG to 500 MCM Thermoplastic Power Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$183.49/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 16335-3
North Coast Part # 679330

Specifications

  • Short Circuit Rating: SCCR: 10 kA
  • Type: Power distribution block
  • Color: Black
  • Material: Molded Thermoplastic Base, Tin-plated aluminum connector
  • Voltage Rating: 600 Vac, 600 Vdc
  • Amperage Rating: 380A
  • Number Of Poles: Three-pole

General

  • UPC: 051712269056
  • Product Length/Depth: 6.5 IN
  • Product Height: 4 IN
  • Product Width: 4.25 IN
  • Product Weight: 1.61 LB
  • Warranty: Not Applicable
  • Compliances: RoHS Compliant

Overview

UPC 05171226905
GTiN 00051712269056
Length 6.5 in
Width 4.25 in
Size 5.21 In Length X 4.00 In Width X 3.32 In Height
Color Black
Voltage 600 Volt
Type Power Distribution Block
Material Molded Thermoplastic Base, Tin-plated Aluminum Connector
Height 4 in
Weight 1.61 lb
Wire Size 6 AWG-350 KCMIL (Copper/Aluminum) Line, (3) 14-2 AWG (Copper) or 8-2 AWG (Aluminum) or (2) 14-1/0 AWG (Copper) or 8-1/0 AWG (Aluminum) Load
Standard CSA,UL
Family Brand Name Bussmann Series
Amperage 380 Amp
Number of Poles 3
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Blade Dimensions 6.5000 IN X 4.2500 IN X 4.0000 IN
Sub Brand Bussmann Series
