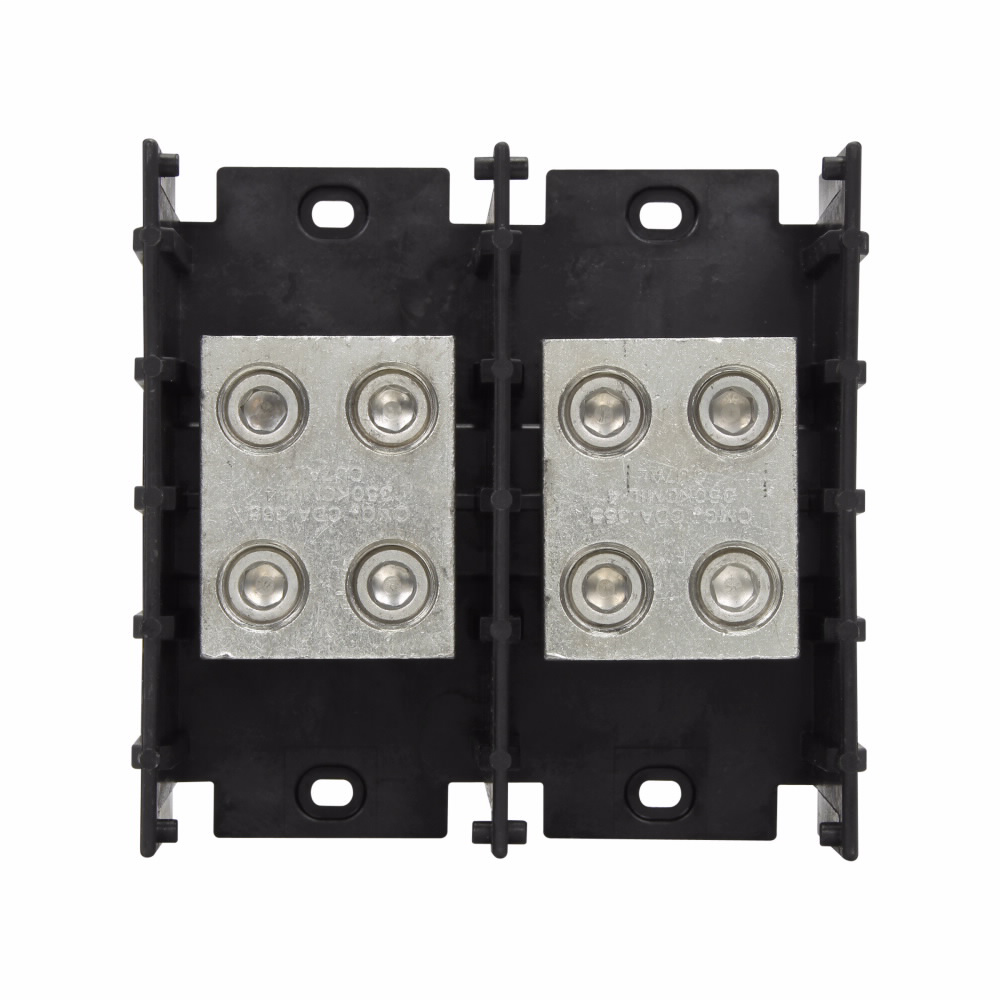

Bussmann Series 16500-2 Power Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$217.02/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 16500-2
North Coast Part # 760184

Specifications

  • Short Circuit Rating: SCCR: 10 kA
  • Type: Power splicer block
  • Color: Black
  • Connection: Splicer
  • Material: Molded Thermoplastic Base, Tin-plated aluminum connector
  • Voltage Rating: 600 Vac, 600 Vdc
  • Amperage Rating: 620A
  • Number Of Poles: Two-pole

General

  • UPC: 051712148900
  • Product Length/Depth: 5.43 IN
  • Product Height: 2.89 IN
  • Product Width: 5.74 IN
  • Product Weight: 1.72 LB
  • Warranty: Not Applicable
  • Compliances: RoHS Compliant
  • Certifications: Contact Manufacturer

Categories

Overview

UPC 05171214890
GTiN 00051712148900
Length 5.43 in
Width 5.74 in
Size 5.79 In Length X 5.50 In Width X 2.93 In Height
Color Black
Voltage 600 Volt
Type Power Splicer Block
Material Molded Thermoplastic Base, Tin-plated Aluminum Connector
Height 2.89 in
Weight 1.72 lb
Wire Size 4 AWG-350 kcmil
Standard UL,CSA
Connection Type Splicer
Family Brand Name Bussmann Series
TC Connection Splicer
Amperage 620 Amp
Number of Poles 2 Pole
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Blade Dimensions 5.4300 IN X 5.7400 IN X 2.8900 IN
Sub Brand Bussmann Series
