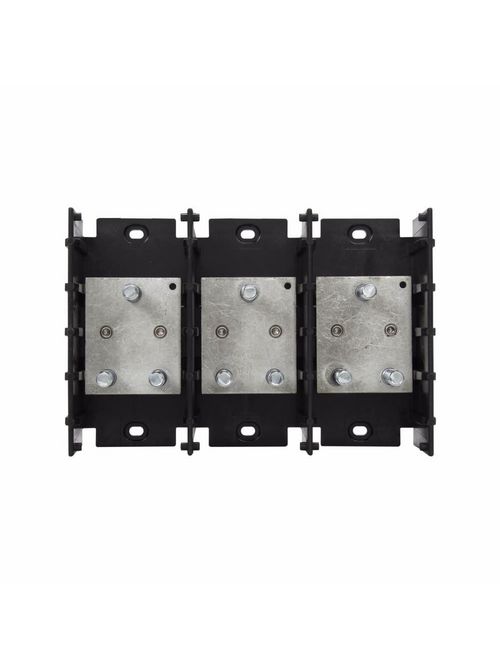

Bussmann Series 16591-3 1-7/16 x 3/8-16 Inch 3-Pole 400 Amp 600 Volt Power Distribution Stud Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$285.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 16591-3
North Coast Part # 484726

Specifications

  • Short Circuit Rating: SCCR: 10 kA
  • Type: Power terminal block
  • Color: Black
  • Connection: 3/8 In-16 TPI X 1-7/16 In Stud (Line), (2) 3/8 In-16 TPI X 1-7/16 In Stud (Load)
  • Material: Molded Thermoplastic Base, Tin-plated aluminum connector
  • Voltage Rating: 600 Vac, 600 Vdc
  • Amperage Rating: 400A
  • Number Of Poles: Three-pole

General

  • UPC: 051712208574
  • Product Length/Depth: 9.5 IN
  • Product Height: 6 IN
  • Product Width: 3.5 IN
  • Product Weight: 2.8 LB
  • Warranty: Not Applicable
  • Compliances: Contact factory
  • Certifications: Contact Manufacturer

Overview

UPC 05171220857
GTiN 00051712208574
Length 9.5 in
Width 3.5 in
Size 8.48 In Length X 5.50 In Width X 2.93 In Height
Color Black
Voltage 600 Volt
Type Power Terminal Block
Material Molded Thermoplastic Base, Tin-plated Aluminum Connector
Height 6 in
Weight 2.8 lb
Standard CSA,UL
Connection Type 3/8 In-16 TPI X 1-7/16 In Stud (Line), (2) 3/8 In-16 TPI X 1-7/16 In Stud (Load)
Family Brand Name Bussmann Series
TC Connection 3/8 In-16 TPI X 1-7/16 In Stud (Line), (2) 3/8 In-16 TPI X 1-7/16 In Stud (Load)
Amperage 400 Amp
Number of Poles 3
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Blade Dimensions 9.5000 IN X 3.5000 IN X 6.0000 IN
Sub Brand Bussmann Series
