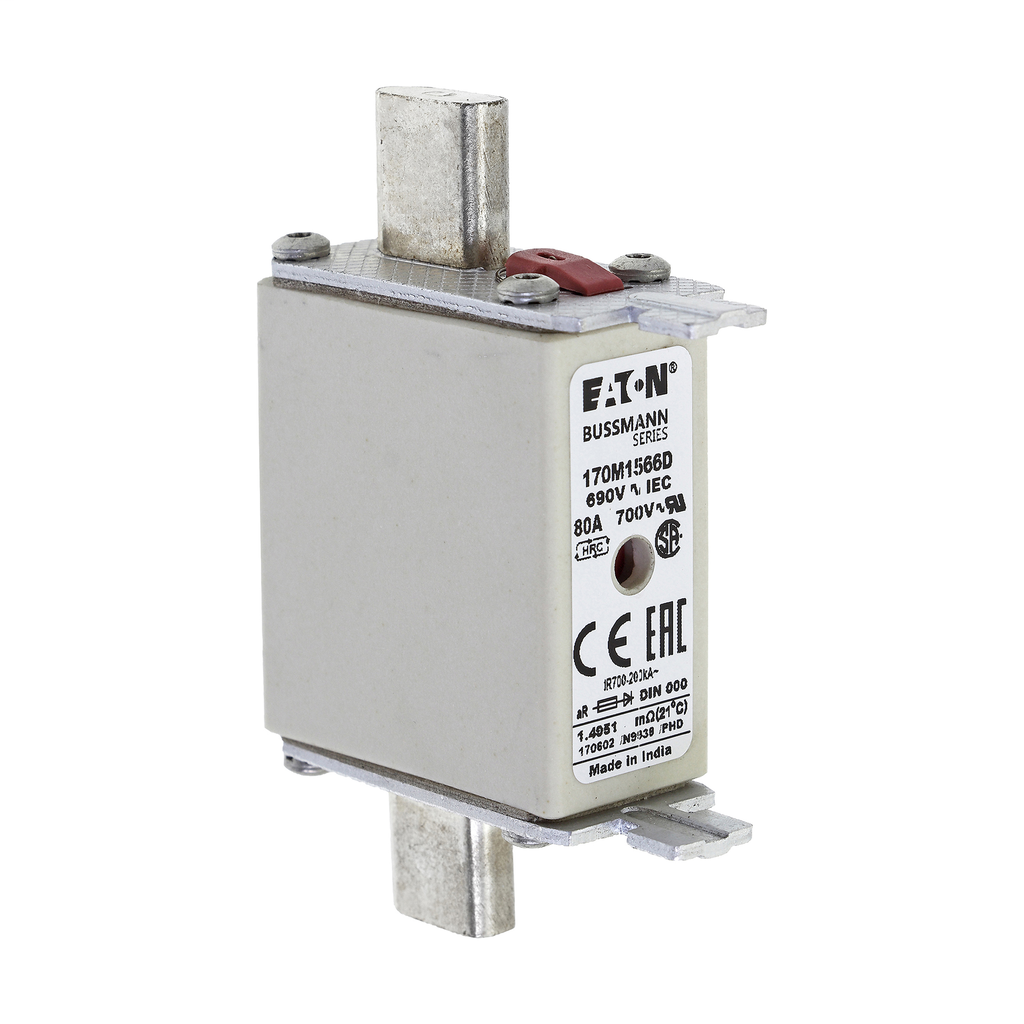

BUSS 170M1566D FUSE 80A 690V aR DIN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$139.26/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 170M1566D
North Coast Part # 1828184

Specifications

  • Height: 48 MM
  • Length: 79 MM
  • Width: 21 MM
  • Weight: 134.7 G
  • Type: Fuse
  • Application: DC common bus, DC drives, power converters/rectifiers, reduced voltage starters
  • Voltage Rating: 690V (IEC)
  • Voltage Rating Numeric: 690 V
  • Amperage Rating: 80A
  • Amperage Rating Numeric: 80 A
  • Interrupt Rating: 200 kAIC
  • Class: Class aR
  • Connection: Din 43-620 blade end X Din 43-620 blade end
  • Construction Size: Other
  • Packaging Type: Standard
  • Clearing (I2T): Clearing at 660V: 2700
  • Fuse Shape: square body with knife blade contacts
  • Fuse Indicator: Combination fuse status indicator
  • Insulated Metal Gripping Lugs (IMGL): No
  • Pre Arc (I2T): 380
  • Utilization category: aR (accompanied semiconductor protection)
  • Voltage Type: AC
  • Watt Losses: 15W

Overview

GTiN 00051712334976
Length 79 mm
Width 21 mm
Size 79 mm Length X 21 mm Width X 48 mm Height
Voltage 690 Volt
Type Fuse
Applications DC Common Bus, DC Drives, Power Converters/Rectifiers, Reduced Voltage Starters
Height 48 mm
Weight 134.7 g
Standard CE,IEC 60269,UL
Connection Type Blade
Fuse Type DIN 43-620
Family Brand Name Bussmann Series
Class Class AR
TC Connection DIN 43-620 Blade End X DIN 43-620 Blade End
Amperage 80 Amp
End Type Blade
Interrupt Rating 200 kA
Product UPC 05171233497
