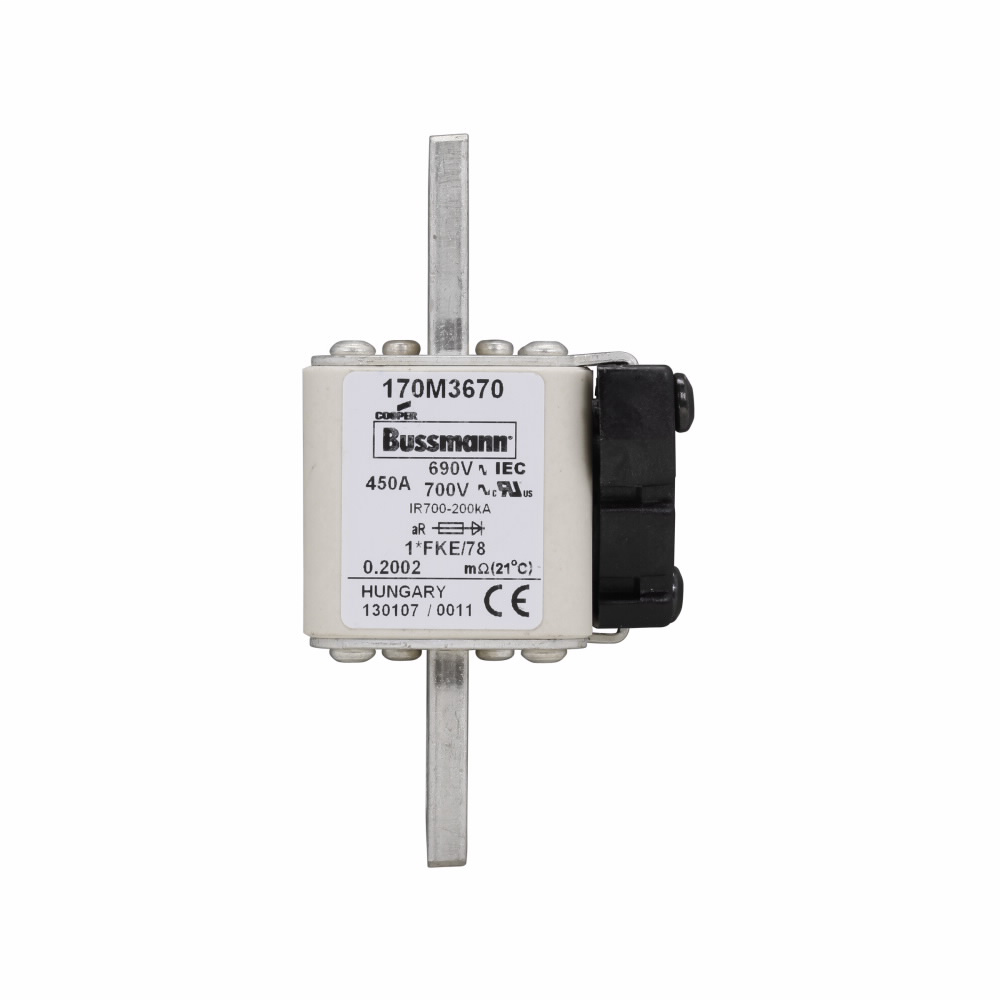

BUSS 170M3670 FUSE 450A 690V 1*FKE/
$327.12/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 170M3670
North Coast Part # 668425

Specifications

  • Fuse Indicator: Other
  • Interrupt Rating: 200 kAIC
  • Construction Size: Other
  • Clearing (I2T): Clearing at 660V: 140000
  • Connection: Blade end X blade end
  • Insulated Metal Gripping Lugs (IMGL): No
  • Amperage Rating: 450A
  • Utilization category: aR (accompanied semiconductor protection)
  • Watt Losses: 65W
  • Type: Fuse
  • Fuse Shape: square body with centre-bolted tags
  • Amperage Rating Numeric: 450 A
  • Class: Class aR
  • Pre Arc (I2T): 21000
  • Voltage Rating: 700V (UL), 690V (IEC)
  • Application: semiconductor protection
  • Voltage Rating Numeric: 690 V
  • Voltage Type: AC
  • Packaging Type: Standard

General

  • UPC: 051712799645
  • EAN: 5027590449090
  • Product Length/Depth: 110 MM
  • Product Height: 59 MM
  • Product Width: 45 MM
  • Product Weight: 66 G
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: UL Recognized

Overview

UPC 05171279964
GTiN 00051712799645
Length 110 mm
Width 0.315 in
Size 110 mm Length X 45 mm Width X 59 mm Height
Voltage 690 Volt
Type Fuse
Applications DC Common Bus, DC Drives, Power Converters/Rectifiers, Reduced Voltage Starters
Height 2.087 in
Weight 66 g
Connection Type Blade
Family Brand Name Bussmann Series
TC Connection Blade End X Blade End
Amperage 450 Amp
End Type Blade
Interrupt Rating 200 kA
