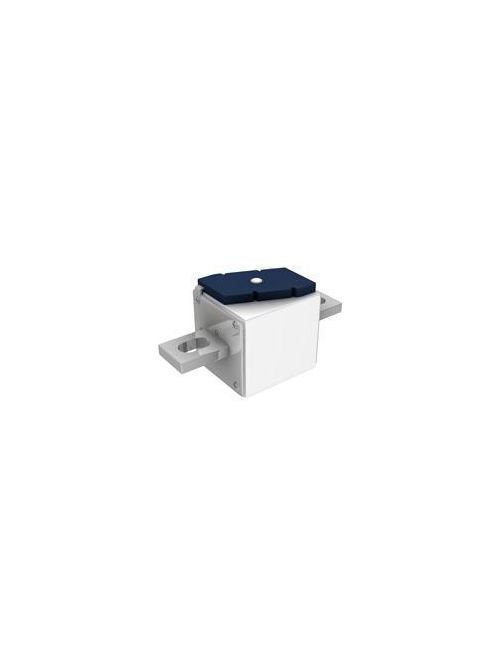

Bussmann Series 170M5610 500 Amp Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$398.46/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 170M5610
North Coast Part # 605024

Specifications

  • Fuse Indicator: None
  • Interrupt Rating: 200 kAIC
  • Construction Size: Other
  • Clearing (I2T): Clearing at 660V: 145000
  • Connection: Blade end X blade end
  • Insulated Metal Gripping Lugs (IMGL): No
  • Amperage Rating: 500A
  • Utilization category: aR (accompanied semiconductor protection)
  • Watt Losses: 75W
  • Type: Fuse
  • Fuse Shape: square body with centre-bolted tags
  • Amperage Rating Numeric: 500 A
  • Class: Class aR
  • Pre Arc (I2T): 21500
  • Voltage Rating: 700V (UL), 690V (IEC)
  • Application: semiconductor protection
  • Voltage Rating Numeric: 690 V
  • Voltage Type: AC
  • Packaging Type: Standard

General

  • UPC: 051712261838
  • EAN: 5027590457873
  • Product Length/Depth: 135 MM
  • Product Height: 77 MM
  • Product Width: 61 MM
  • Product Weight: 239 G
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: UL Recognized

Categories

Overview

UPC 05171226183
Item Long Description Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 500A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M5610
GTiN 00051712261838
Length 2.25 in
Width 2.25 in
Size 135 mm Length X 61 mm Width X 77 mm Height
Voltage 690 Volt
Type Fuse
Applications Ind Facilities & Factories - Facility: Safety and Security SystemsElec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMsInd Facilities & Factories - Facility: Critical PowerElec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
Height 77 mm
Weight 239 g
Standard CE,CSA,IEC 60269,UL
Connection Type Blade
Family Brand Name Bussmann Series
Class Class aR
Amperage 500 Amp
End Type Blade
Interrupt Rating 200 kA
TC Connection Blade end x blade end
Blade Dimensions 5.3150 IN X 2.4016 IN X 3.0315 IN
Sub Brand Bussmann Series
