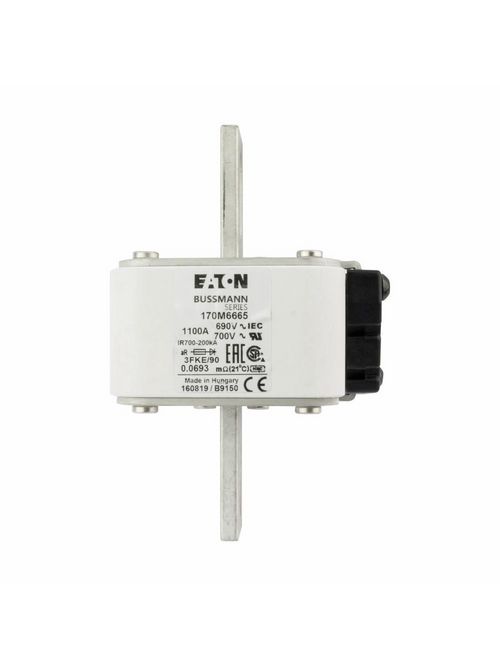

BUSS 170M6665 FUSE 1100A 690V 3FKE/
$599.70/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 170M6665
North Coast Part # 754760

Specifications

  • Fuse Indicator: Other
  • Interrupt Rating: 200 kAIC
  • Construction Size: Other
  • Clearing (I2T): Clearing at 660V: 1300000
  • Connection: Blade end X blade end
  • Insulated Metal Gripping Lugs (IMGL): No
  • Amperage Rating: 1100A
  • Utilization category: aR (accompanied semiconductor protection)
  • Watt Losses: 130W
  • Type: Fuse
  • Fuse Shape: square body with centre-bolted tags
  • Amperage Rating Numeric: 1100 A
  • Class: Class aR
  • Pre Arc (I2T): 190000
  • Voltage Rating: 700V (UL), 690V (IEC)
  • Application: semiconductor protection
  • Voltage Rating Numeric: 690 V
  • Voltage Type: AC
  • Packaging Type: Standard

General

  • UPC: 051712265041
  • EAN: 5996516020326
  • Product Length/Depth: 135 MM
  • Product Height: 92 MM
  • Product Width: 76 MM
  • Product Weight: 153.3 G
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: UL Recognized

Overview

UPC 05171226504
GTiN 00051712265041
Length 135 mm
Width 3 in
Size 135 mm Length X 76 mm Width X 92 mm Height
Voltage 690 Volt
Type Fuse
Applications DC Common Bus, DC Drives, Power Converters/Rectifiers, Reduced Voltage Starters
Height 5 in
Weight 153.3 g
Standard UL,CE,IEC 60269,CSA
Connection Type Blade
Family Brand Name Bussmann Series
Class Class AR
TC Connection Blade End X Blade End
Amperage 1100 Amp
End Type Blade
Interrupt Rating 200 kA
