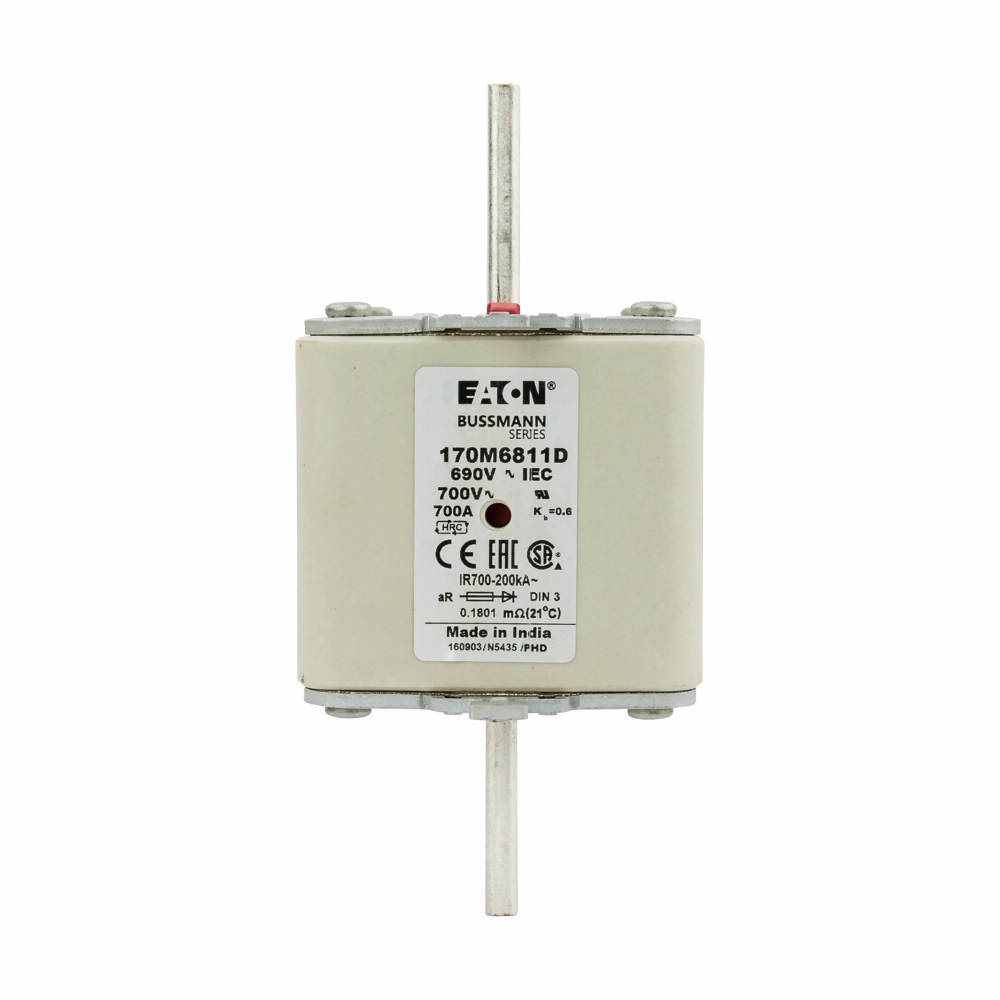

BUSS 170M6811D FUSE 700A 690V aR DI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$587.60/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 170M6811D
North Coast Part # 1833684

Specifications

  • Fuse Indicator: Combination fuse status indicator
  • Interrupt Rating: 200 kAIC
  • Construction Size: Other
  • Clearing (I2T): Clearing at 660V: 320000
  • Connection: Din 43-620 blade end X Din 43-620 blade end
  • Insulated Metal Gripping Lugs (IMGL): No
  • Amperage Rating: 700A
  • Utilization category: aR (accompanied semiconductor protection)
  • Watt Losses: 46W
  • Type: Fuse
  • Fuse Shape: square body with knife blade contacts
  • Amperage Rating Numeric: 700 A
  • Class: Class aR
  • Pre Arc (I2T): 45000
  • Voltage Rating: 690 V
  • Application: industrial
  • Voltage Rating Numeric: 690 V
  • Voltage Type: AC
  • Packaging Type: Standard

General

  • UPC: 051712335249
  • EAN: 5027590252645
  • Product Length/Depth: 150 MM
  • Product Height: 88 MM
  • Product Width: 76 MM
  • Product Weight: 110.8 G
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: UL Recognized

Overview

UPC 05171233524
GTiN 00051712335249
Length 150 mm
Width 2.75 in
Size 150 mm Length X 76 mm Width X 88 mm Height
Voltage 690 Volt
Type Fuse
Applications DC Common Bus, DC Drives, Power Converters/Rectifiers, Reduced Voltage Starters
Height 6 in
Weight 110.8 g
Standard CE,IEC 60269,UL
Connection Type Blade
Fuse Type DIN 43-620
Family Brand Name Bussmann Series
Class Class AR
TC Connection DIN 43-620 Blade End X DIN 43-620 Blade End
Amperage 700 Amp
End Type Blade
Interrupt Rating 200 kA
