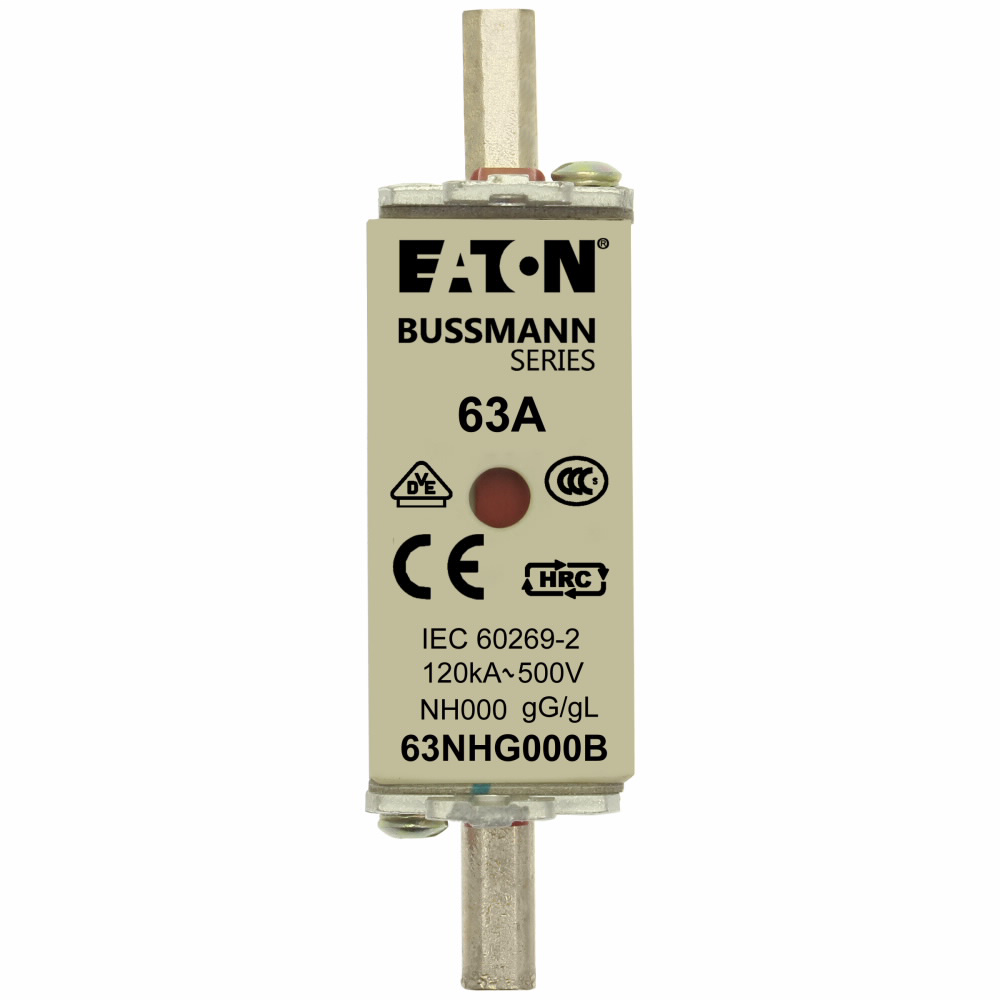

Bussmann Series 63NHG000B 63 Amp 500 VAC High Rupturing Capacity Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$43.42/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 63NHG000B
North Coast Part # 347820

Specifications

  • Interrupt Rating: 120 kAIC
  • Insulated Metal Gripping Lugs (IMGL): No
  • Amperage Rating: 63A
  • Frequency Rating Maximum: 62 HZ
  • Fuse Type: Square-body with knife blade contact
  • Rated switching capacity: 120 KA
  • Amperage Rating Numeric: 63 A
  • With Striker: No
  • Voltage Rating: 500V
  • Fuse Indicator: Combination fuse status indicator
  • Special Features: Live gripping lug
  • Construction Size: NH000
  • Construction: NH000
  • Connection: Blade end connection
  • Quantity: 3 per package
  • Material Type: Ceramic body
  • Utilization Category: gL/gG (cable protection/equipment protection)
  • Contact Material: Metal plated copper contact plate
  • Type: fuse
  • Fuse Shape: square body with knife blade contacts
  • Breaking Capacity: 120 KA
  • Frequency Rating Minimum: 45 HZ
  • Class: Class C gL/gG
  • Application: industrial
  • Voltage Rating Numeric: 500 V
  • Voltage Type: AC
  • Packaging Type: Standard

General

  • UPC: 051712625845
  • EAN: 5027590485326
  • Product Length/Depth: 79 MM
  • Product Height: 51 MM
  • Product Width: 21 MM
  • Product Weight: 130.667 G
  • Warranty: Not Applicable
  • Compliances: RoHS Compliant
  • Certifications: UL Listed

Overview

UPC 05171262584
GTiN 00051712625845
Length 79 mm
Width 21 mm
Size 78.5 mm Length X 21 mm Width
Voltage 500 Volt
Type Fuse
Applications Ind Facilities & Factories - Facility: Safety and Security SystemsInd Facilities & Factories - Facility: Power Distribution and ControlElec Assemblies, Panels & EOEM - Panel BuildersElec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - OtherElec Assemblies, Panels & EOEM - Control Panels for MachinesElec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMsElec Assemblies, Panels & EOEM - Elec Assemblies/Panels/EOEMs - Aftermarket
Height 51 mm
Weight 130.667 g
Standard CE,DIN 43620,IEC 60269,VDE0636
Frequency 62 Hz
Connection Type Blade End Connection
Family Brand Name Bussmann Series
Class GG,GL
Amperage 63 Amp
Interrupt Rating 120 kA
TC Connection Bladendetilkobling
Blade Dimensions 3.1102 IN X 0.8268 IN X 2.0079 IN
Sub Brand Bussmann Series
