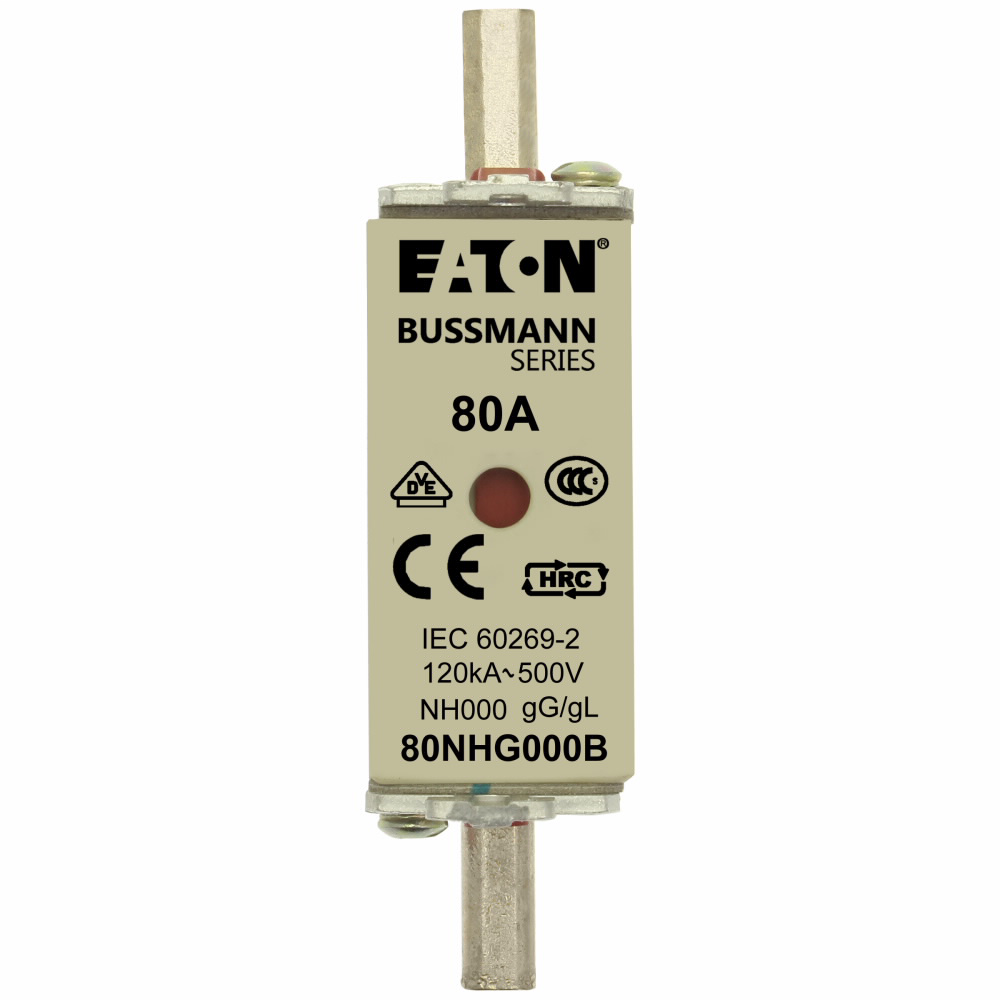

BUSS 80NHG000B NH FUSE 80A 500V GL/
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$43.42/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # 80NHG000B
North Coast Part # 344217

Specifications

  • Interrupt Rating: 120 kAIC
  • Insulated Metal Gripping Lugs (IMGL): No
  • Amperage Rating: 80A
  • Frequency Rating Maximum: 62 HZ
  • Fuse Type: Square-body with knife blade contact
  • Rated switching capacity: 120 KA
  • Amperage Rating Numeric: 80 A
  • With Striker: No
  • Voltage Rating: 500V
  • Fuse Indicator: Combination fuse status indicator
  • Special Features: Live gripping lug
  • Construction Size: NH000
  • Construction: NH000
  • Connection: Blade end connection
  • Quantity: 3 per package
  • Material Type: Ceramic body
  • Utilization Category: gL/gG (cable protection/equipment protection)
  • Contact Material: Metal plated copper contact plate
  • Type: fuse
  • Fuse Shape: square body with knife blade contacts
  • Breaking Capacity: 120 KA
  • Frequency Rating Minimum: 45 HZ
  • Class: Class C gL/gG
  • Application: industrial
  • Voltage Rating Numeric: 500 V
  • Voltage Type: AC
  • Packaging Type: Standard

General

  • UPC: 051712625852
  • EAN: 5027590490726
  • Product Length/Depth: 79 MM
  • Product Height: 51 MM
  • Product Width: 21 MM
  • Product Weight: 130.667 G
  • Warranty: Not Applicable
  • Compliances: RoHS Compliant
  • Certifications: UL Listed

Overview

UPC 05171262585
GTiN 00051712625852
Length 79 mm
Width 21 mm
Size 78.50 mm Length X 21.00 mm Width
Voltage 500 Volt
Type Fuse
Applications Ind Facilities & Factories - Facility: Safety and Security SystemsElec Assemblies, Panels & EOEM - Panel BuildersElec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - OtherElec Assemblies, Panels & EOEM - Elec Assemblies/Panels/EOEMs - AftermarketElec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMsInd Facilities & Factories - Facility: Power Distribution and ControlElec Assemblies, Panels & EOEM - Control Panels for Machines
Height 51 mm
Weight 130.667 g
Standard CE,DIN 43620,IEC 60269,VDE0636
Frequency 62 Hz
Connection Type Blade End Connection
Family Brand Name Eaton
Class Class C GL/gG
Amperage 80 Amp
Interrupt Rating 120 kA
TC Connection Bladendetilkobling
Blade Dimensions 3.1102 IN X 0.8268 IN X 2.0079 IN
Sub Brand Bussmann Series
