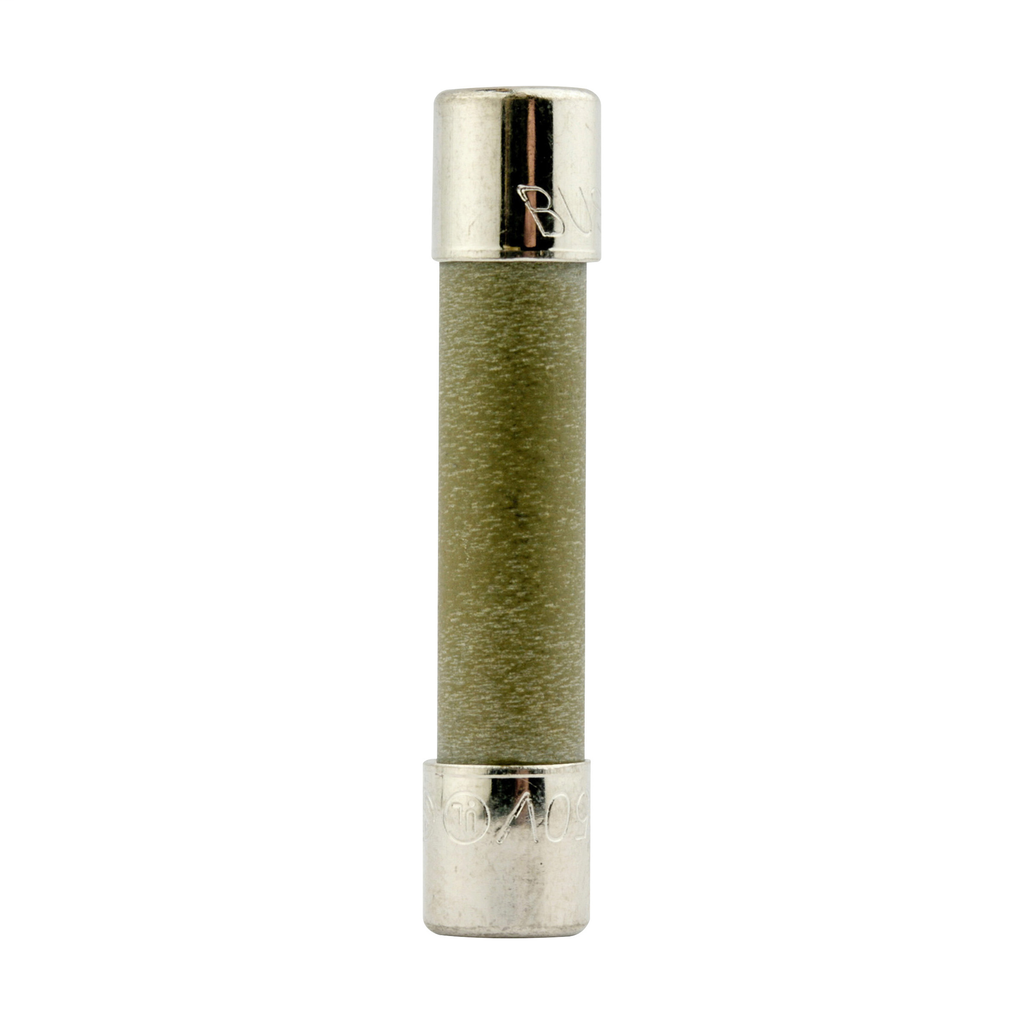

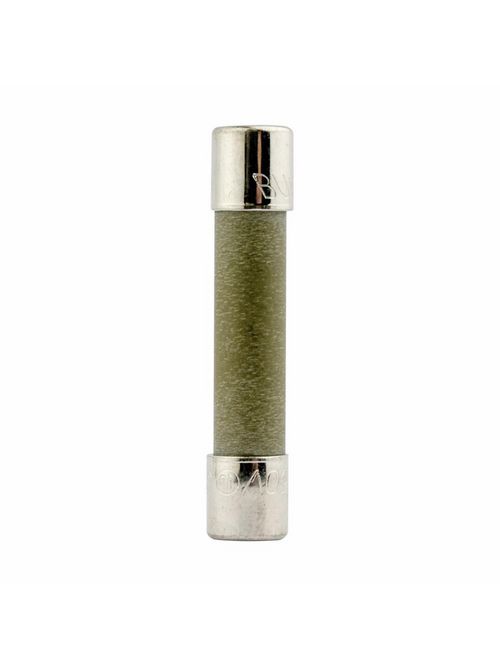

Bussmann Series ABC-5-R 1/4 x 1-1/4 Inch 5 Amp 250 VAC 125 VDC Small Dimension Fast Acting Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$127.66/c (100 ea)
Usually ships within 6 to 8 Days
ea
Adding...
Order in multiples of 5 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # ABC-5-R
North Coast Part # 419558

Specifications

  • Height: .25 IN
  • Length: 1.25 IN
  • Width: .25 IN
  • Weight: .004 LB
  • Type: Electronic
  • Application: Electronic circuits
  • Voltage Rating: 250 Vac, 125 Vdc, 32 Vac (self certified)
  • Amperage Rating: 5A
  • Interrupt Rating: 200 AIC at 250 Vac, 10 kAIC at 125 Vac/dc
  • Connection: Ferrule end X ferrule end
  • Material Type: Ceramic tube, nickel-plated brass endcaps
  • Packaging Type: Standard
  • Diameter: .25 IN
  • Melting (L2T): Typical pre-arc: 32.83
  • Resistance: Typical DC cold: .026 ohms
  • Voltage Drop: Typical: .22 mV
  • Fuse Indicator: Non Indicating
  • Response Time: 4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200%
  • Notes: Ceramic body allows for higher amp/volt rating combinations.

Overview

UPC 05171264628
Item Long Description ABC 5A BUSS FA 5-IN BOX -R
GTiN 00051712646284
Length 1.25 in
Width .25 in
Size 1/4 In Diameter X 1-1/4 In Length
Voltage 125 Volt
Type Electronic
Diameter .25 in
Applications Electronic Circuits
Height .25 in
Weight .004 lb
Standard CE,CSA,UL 248-14
Connection Type Ferrule
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 5 Amp
Response Time 120 seconds maximum at 200%,4 hours minimum at 100%,60 minutes maximum at 135%
End Type Ferrule
Interrupt Rating 10 kA
