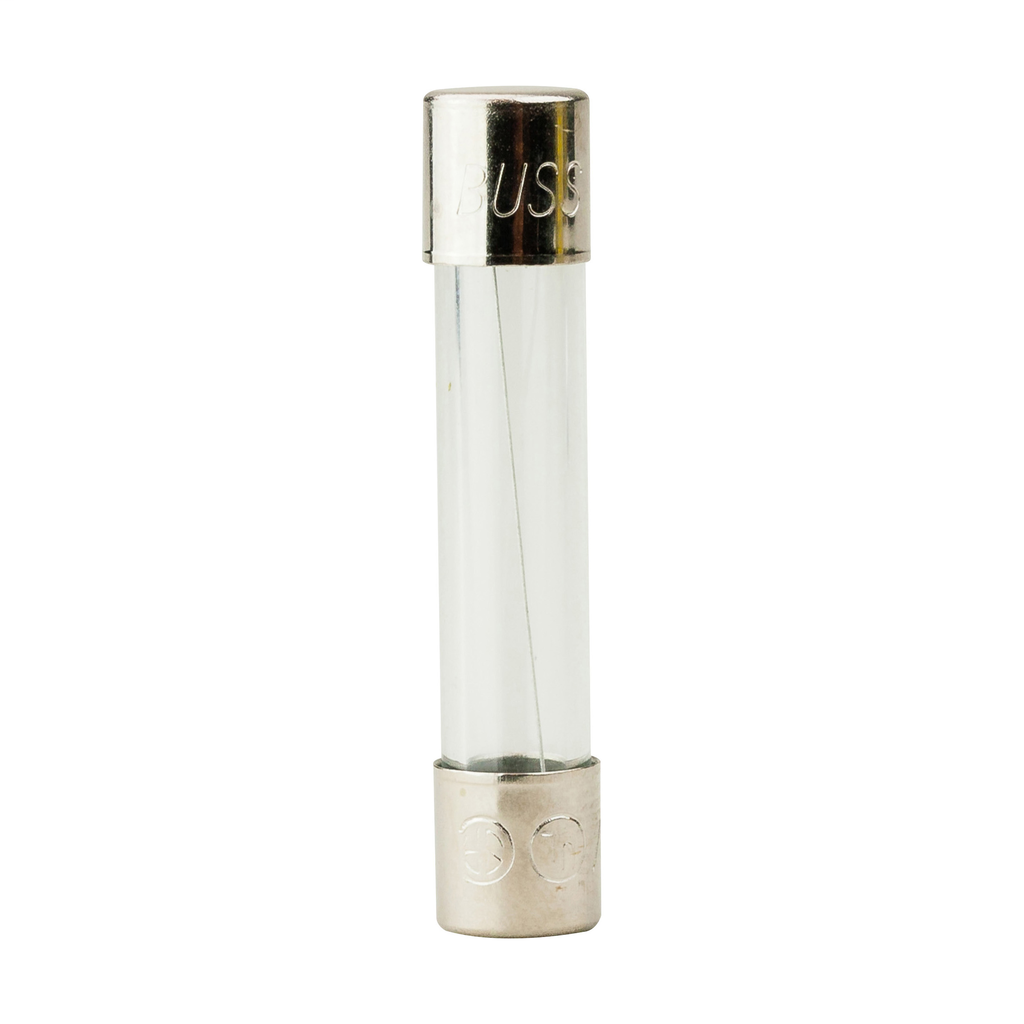

Bussmann Series AGC-1/10-R Small Dimension Fuse
$3.11/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # AGC-1/10-R
North Coast Part # 1094768

Specifications

  • Height: 1.25 IN
  • Length: .25 IN
  • Width: .25 IN
  • Weight: .006 LB
  • Application: Electronic circuits
  • Voltage Rating: 250 Vac, 32 Vdc (self certified)
  • Amperage Rating: 0.01A
  • Interrupt Rating: 35 AIC at 250 Vac, 10 kAIC at 125 Vac
  • Connection: Ferrule end X ferrule end
  • Packaging Type: Standard
  • Used With: out axial leads
  • Fuse Indicator: Non Indicating
  • Response Time: 60 min maximum at 135%, 120 s maximum at 200%

Categories

Overview

UPC 05171265488
GTiN 00051712654883
Length .25 in
Width .25 in
Size 1/4 In Diameter X 1-1/4 In Length
Voltage 250 Volt
Type Electronic,Fast Acting
Applications Electronic Circuits
Height 1.25 in
Weight .006 lb
Standard CSA,UL 248-14
Connection Type Ferrule
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 0.01 Amp
Response Time 120 S Maximum At 200%,60 Min Maximum At 135%
End Type Ferrule
Interrupt Rating 10 kA
