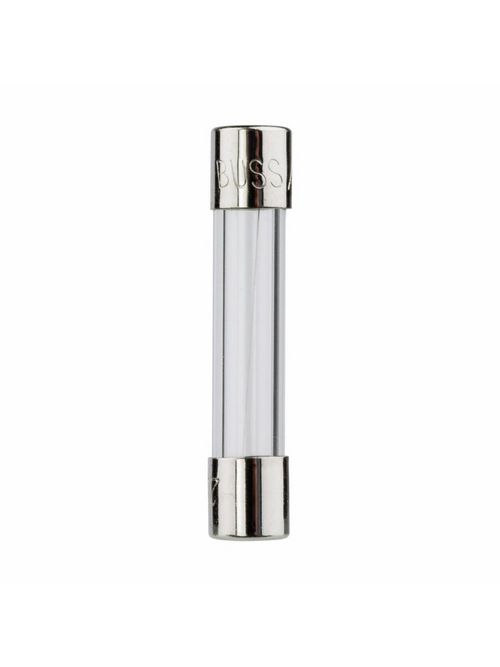

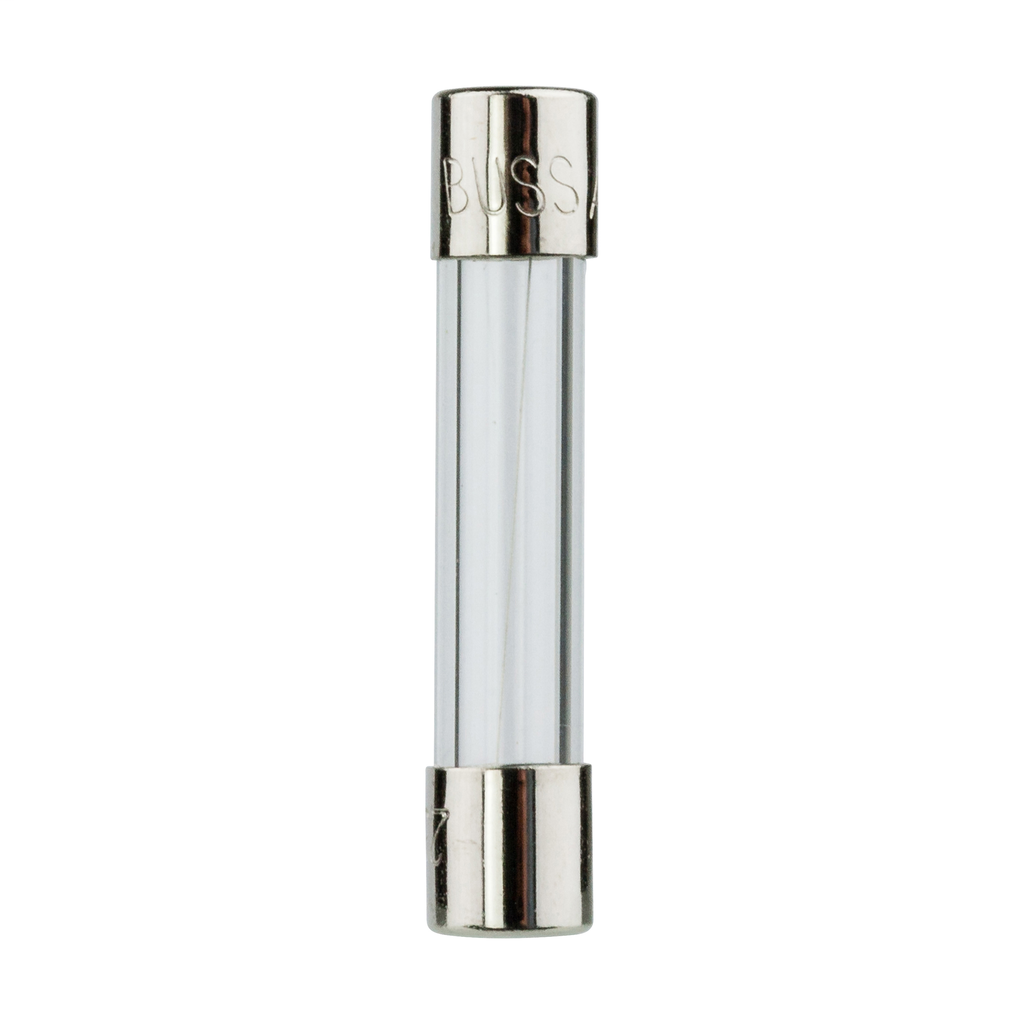

Bussmann Series AGC-2-R Small Dimension Fuse
Product image thumbnail 0
Product image thumbnail 1
$83.53/c (100 ea)
In Stock | 168 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # AGC-2-R
North Coast Part # 547781

Specifications

  • Height: .25 IN
  • Length: 1.25 IN
  • Width: .25 IN
  • Weight: .004 LB
  • Application: Electronic circuits
  • Voltage Rating: 250 Vac, 32 Vdc (self certified)
  • Amperage Rating: 2A
  • Interrupt Rating: 100 AIC at 250 Vac, 10 kAIC at 125 Vac
  • Connection: Ferrule end X ferrule end
  • Packaging Type: Standard
  • Used With: out axial leads
  • Fuse Indicator: Non Indicating
  • Response Time: 60 min maximum at 135%, 120 s maximum at 200%

Overview

UPC 05171265505
GTiN 00051712655057
Length 1.25 in
Width .25 in
Size 1/4 In Diameter X 1-1/4 In Length
Voltage 250 Volt
Type Electronic, Fast Acting
Applications Electronic Circuits
Height .25 in
Weight .004 lb
Connection Type Ferrule
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 2 Amp
Response Time 120/3.6k s
End Type Ferrule
Interrupt Rating 10 kA
