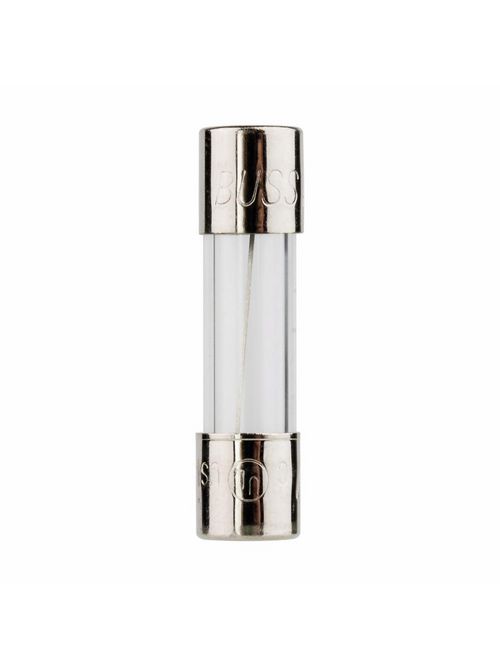

BUSS AGX-7 BUSS SMALL DIMENSION FUS
Product image thumbnail 0
Product image thumbnail 1
$62.12/c (100 ea)
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # AGX-7
North Coast Part # 487609

Specifications

  • Height: 1 IN
  • Length: .252 IN
  • Width: .252 IN
  • Weight: .02 LB
  • Type: Electronic- small dimension
  • Application: Electronic circuits
  • Voltage Rating: 250 Vac, 32 Vdc
  • Amperage Rating: 7A
  • Interrupt Rating: 10 kAIC at 125 Vac
  • Connection: Ferrule end X ferrule end
  • Packaging Type: Standard
  • Fuse Indicator: Non Indicating
  • Response Time: 4 hr minimum at 110%, 60 min maximum at 135%, 5 s maximum at 200%, 2 min maximum at 200%

Overview

UPC 05171270489
GTiN 00051712704892
Length .252 in
Width .252 in
Size 0.25 In Diameter X 1.00 In Length
Voltage 250 Volt
Type Electronic,Small Dimension
Applications Electronic Circuits
Height 1 in
Weight .02 lb
Standard CE,UL (CANADA AND US)
Connection Type Ferrule
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 7 Amp
Response Time 2 Min Maximum At 200%,4 Hr Minimum At 110%,5 S Maximum At 200%,60 Min Maximum At 135%
End Type Ferrule
Interrupt Rating 10 kA
