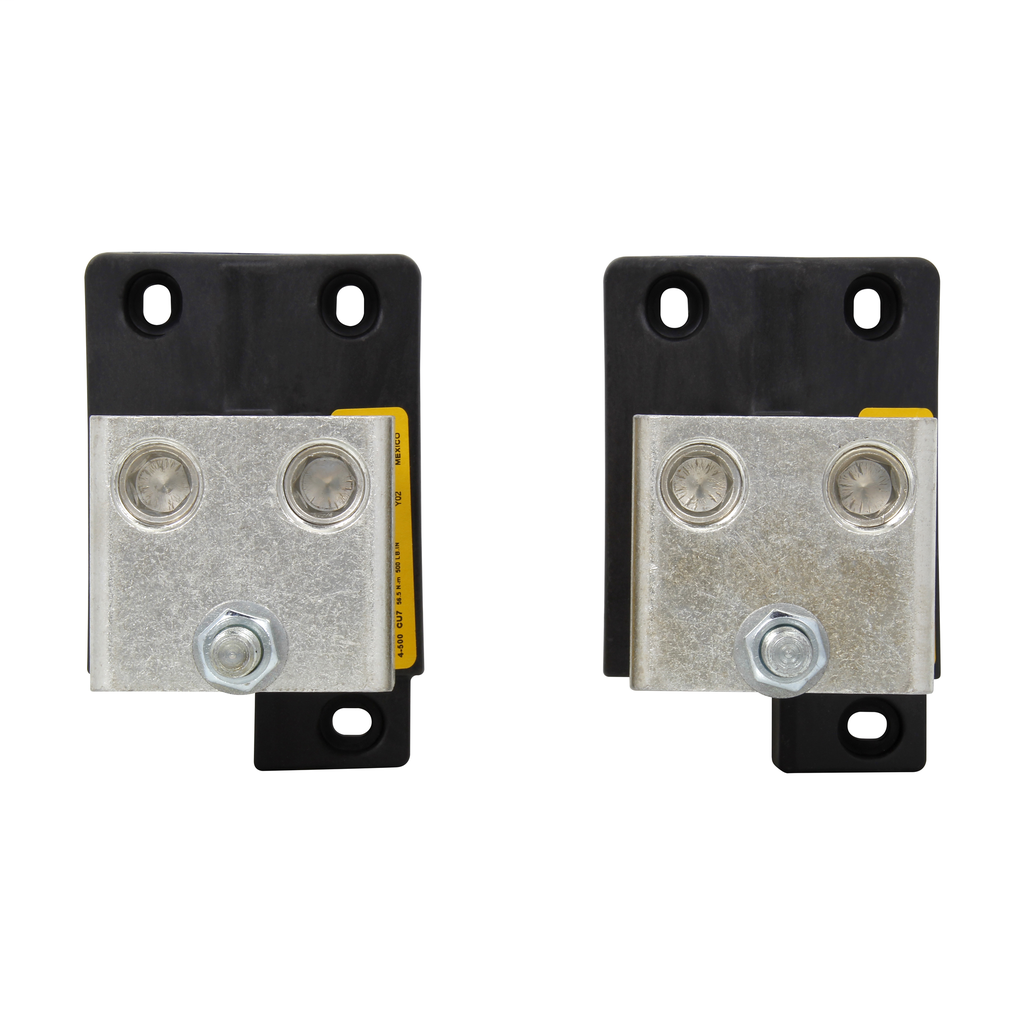

Bussmann Series BH-3144 700 Amp 1250 Volt Modular Fuse Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$275.64/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # BH-3144
North Coast Part # 160900

Specifications

  • Height: 3 IN
  • Length: 4.125 IN
  • Width: 3 IN
  • Weight: 1.044 LB
  • Type: Modular
  • Voltage Rating: 0-1200V
  • Amperage Rating: 0-700A
  • Connection: 7/16 In-14 TPI Stud
  • Material Type: High temperature thermoplastic
  • Wire Range: #4 AWG-500 kcmil Cu

Categories

Overview

UPC 05171235053
Item Long Description Fuse Block, Modular, 0-700A, 0-1200V, High temperature thermoplastic material, 7/16 in-14 TPI stud connection, 4 AWG to 500 MCM (copper) wire size
GTiN 00051712350532
Length 4.125 in
Width 3 in
Voltage 0-1200 Volt
Type Modular
Material High Temperature Thermoplastic Base,Plated Steel Studs/Nut,Spring Steel Washer,Tin Plated Aluminum Connector
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Height 3 in
Weight 1.044 lb
Standard CSA,UL
Connection Type 7/16 In-14 TPI Stud
Family Brand Name Bussmann Series
TC Connection 7/16 In-14 TPI stud
Amperage 0-700 Amp
Blade Dimensions 4.1250 IN X 3.0000 IN X 3.0000 IN
Sub Brand Bussmann Series
