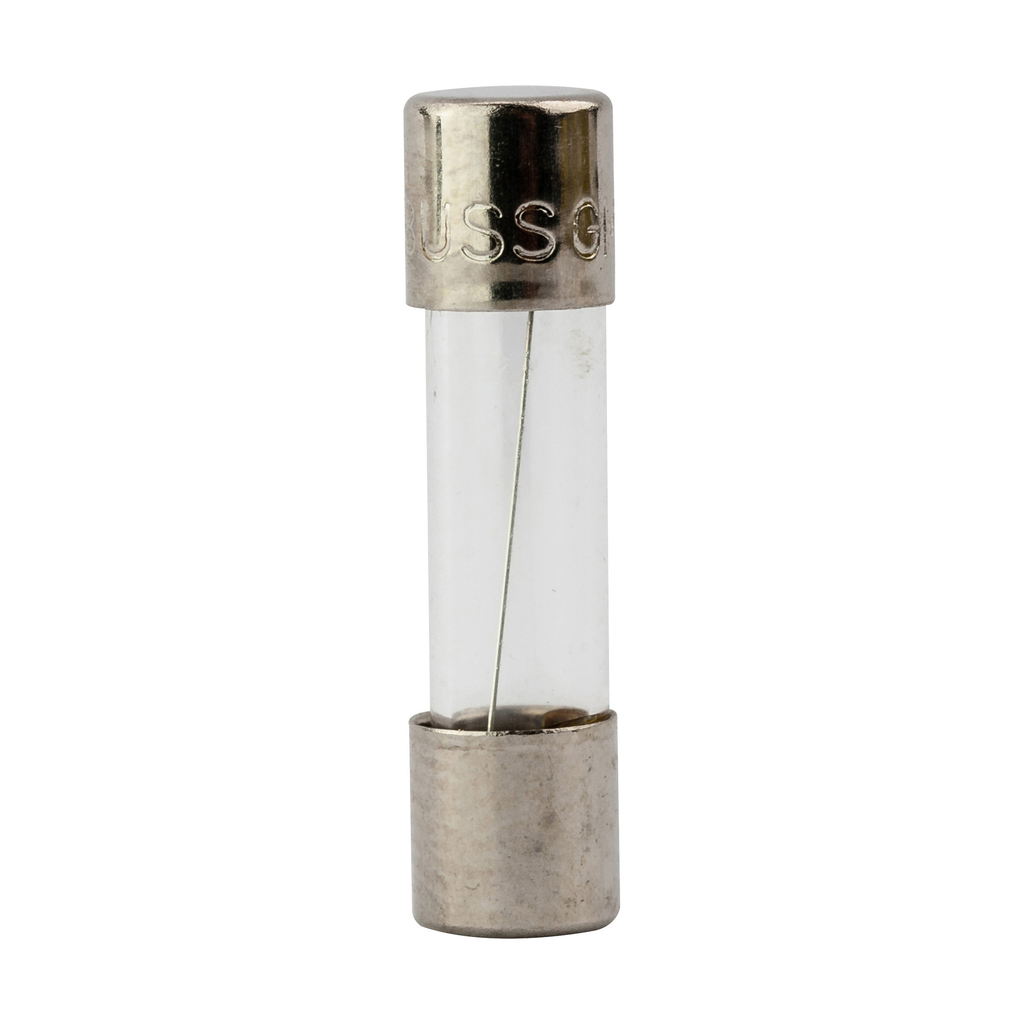

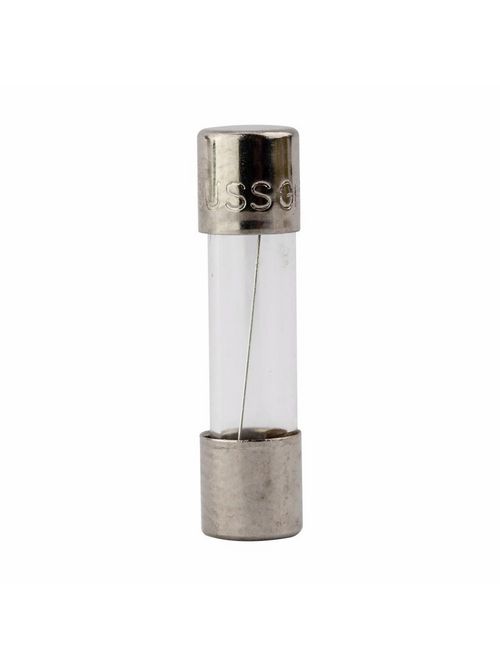

BUSS BK/GMA-1-R GMA 1A BUSS FA BK 1
Product image thumbnail 0
Product image thumbnail 1
$159.05/c (100 ea)
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # BK/GMA-1-R
North Coast Part # 878883

Specifications

  • Height: .788 IN
  • Length: .197 IN
  • Width: .197 IN
  • Weight: .002 LB
  • Type: Electronic- small dimension
  • Application: Electronic circuits
  • Voltage Rating: 250 Vac, 32 Vdc (self certified)
  • Amperage Rating: 1A
  • Interrupt Rating: 35 AIC at 250 Vac, 10 kAIC at 125 Vac
  • Connection: Ferrule end X ferrule end
  • Material Type: Glass tube, nickel-plated brass endcaps
  • Packaging Type: Standard
  • Quantity: Bulk 100
  • Used With: out axial leads
  • Fuse Indicator: Non Indicating
  • Response Time: 60 min maximum at 135%, 2 min maximum at 200%

Overview

UPC 05171264719
GTiN 00051712647199
Length .197 in
Width .197 in
Size 5 mm Diameter X 20 mm Length
Voltage 250 Volt
Type Electronic,Small Dimension
Applications Electronic Circuits
Height .788 in
Weight .002 lb
Standard CE,CSA,UL 248-14
Connection Type Ferrule
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 1 Amp
Response Time 2 minutes maximum at 200%,60 minutes maximum at 135%
End Type Ferrule
Interrupt Rating 10 kA
