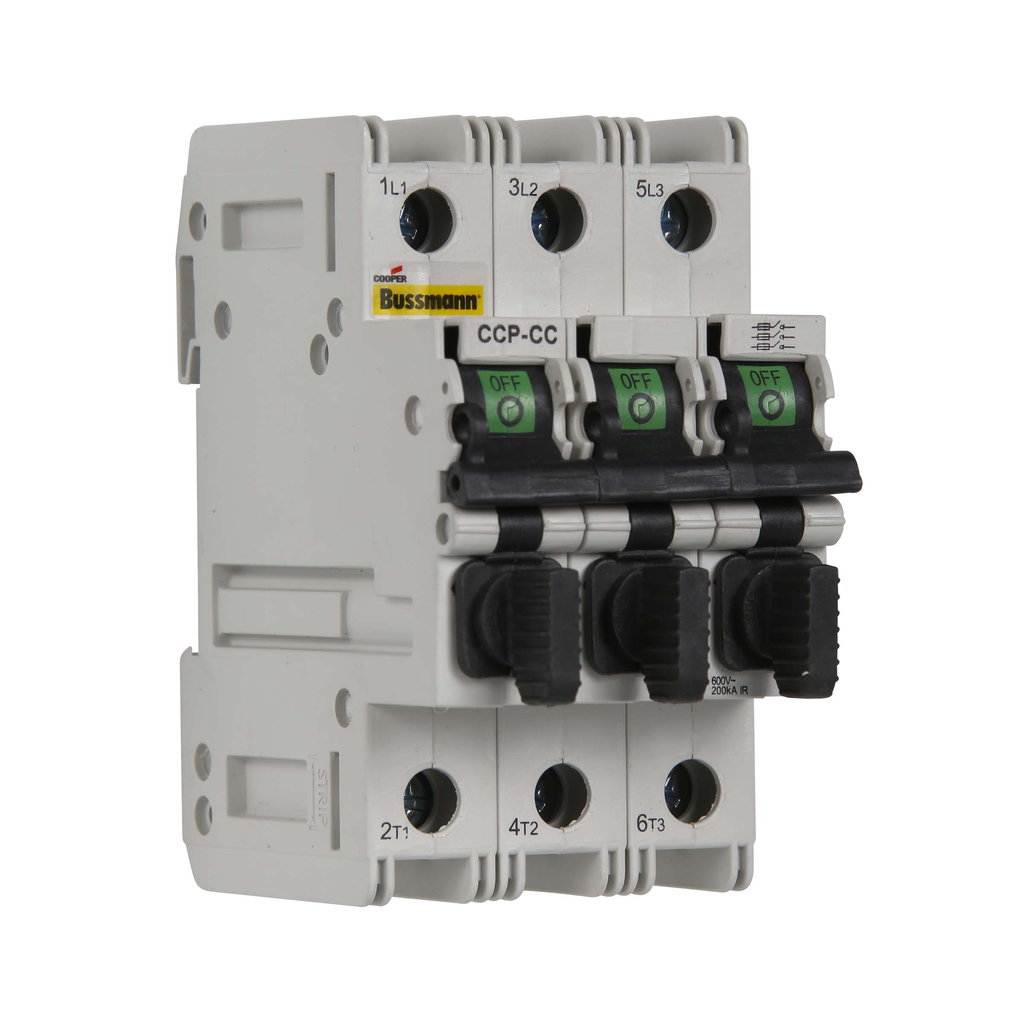

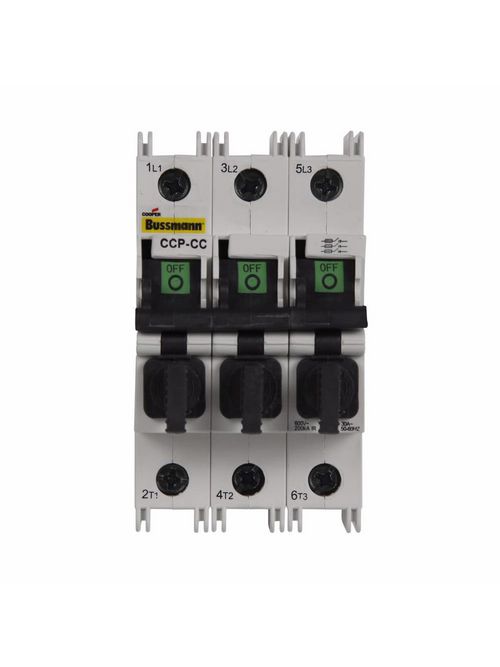

Eaton Bussmann CCP-3-30CC 3-Pole Class Compact Circuit Protector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$150.96/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # CCP-3-30CC
North Coast Part # 419499

Specifications

  • Height: 3 IN
  • Length: 3.5 IN
  • Width: 2 IN
  • Weight: .663 LB
  • Amperage Rating: 30A
  • Fuse Type: Class CC
  • Number Of Poles: Three-pole
  • Voltage Rating: 600 Vac, 125 Vdc

Overview

UPC 05171215792
GTiN 00051712157926
Length 3.5 in
Width 2 in
Size 2.10 In Width X 3.10 In Depth X 3.70 In Height
Operating Temperature -20 to 75 C
Voltage 125 Volt
Type UL98 fusible disconnect
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Mounting Type 35 Mm DIN Rail
Height 3 in
Weight .663 lb
Standard UL 98,C 22.2,CE
Connection Type Box Lug/Spade
Family Brand Name Eaton
TC Connection Box Lug/Spade
Actuator Padlockable Handle
Amperage 30 Amp
Number of Poles 3 Pole
Indicator Local Fuse Indication Light
Sub Brand Bussmann Series
Blade Dimensions 3.6500 IN X 2.0700 IN X 3.1400 IN
