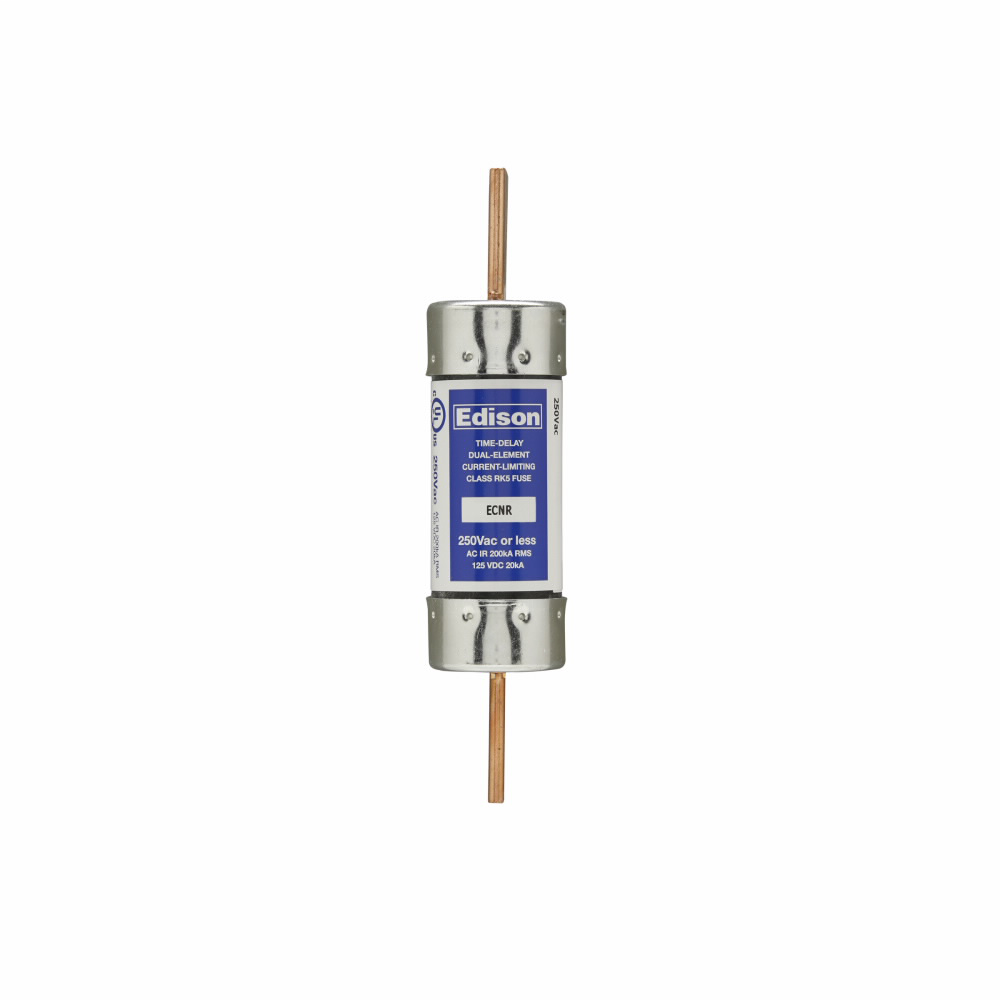

BUSS ECNR150 UL CLASS RK-5 TIME DEL
Product image thumbnail 0
Product image thumbnail 1
$115.71/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # ECNR150
North Coast Part # 1826989

Specifications

  • Fuse Indicator: Non Indicating
  • Special Features: Superior overload and cycling capabilities
  • Interrupt Rating: 200 kAIC
  • Type: Time delay, Current-limiting
  • Number Of Elements: Dual
  • Connection: Blade end X blade end
  • Response Time: 10s at 500%
  • Class: Class RK5
  • Voltage Rating: 250 Vac, 125 Vdc
  • Amperage Rating: 150A
  • Diameter: 1.56 IN
  • Packaging Type: Standard

General

  • UPC: 782634507468
  • Product Length/Depth: 2 IN
  • Product Height: .56 IN
  • Product Width: .56 IN
  • Product Weight: .5 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Categories

Overview

UPC 78263450746
Item Long Description Eaton Edison ECNR fuse, Superior overload and cycling capabilities, 250 Vac, 125 Vdc, 150A, 200 kAIC, Non Indicating, Time delay, Current-limiting, Blade end X blade end, Class RK5
GTiN 00782634507468
Size 1.56 In Diameter X 7.13 In Length
Type Time Delay, Current Limiting
Applications AC Power Distribution System Mains, Feeders and Branch Circuits, Protection of Motor and Motor Branch Circuits, Transformers and Other Inductive Loa
Family Brand Name Bussmann Series
Class RK-5
TC Connection Blade End X Blade End
Response Time 10 S at 500%
Interrupt Rating 200 kA (RMS Symmetrical)
Sub Brand Edison
Length 2 in
Diameter 1.56 in
Weight .5 lb
Connection Type Blade
Amperage 150 Amp
End Type Blade
