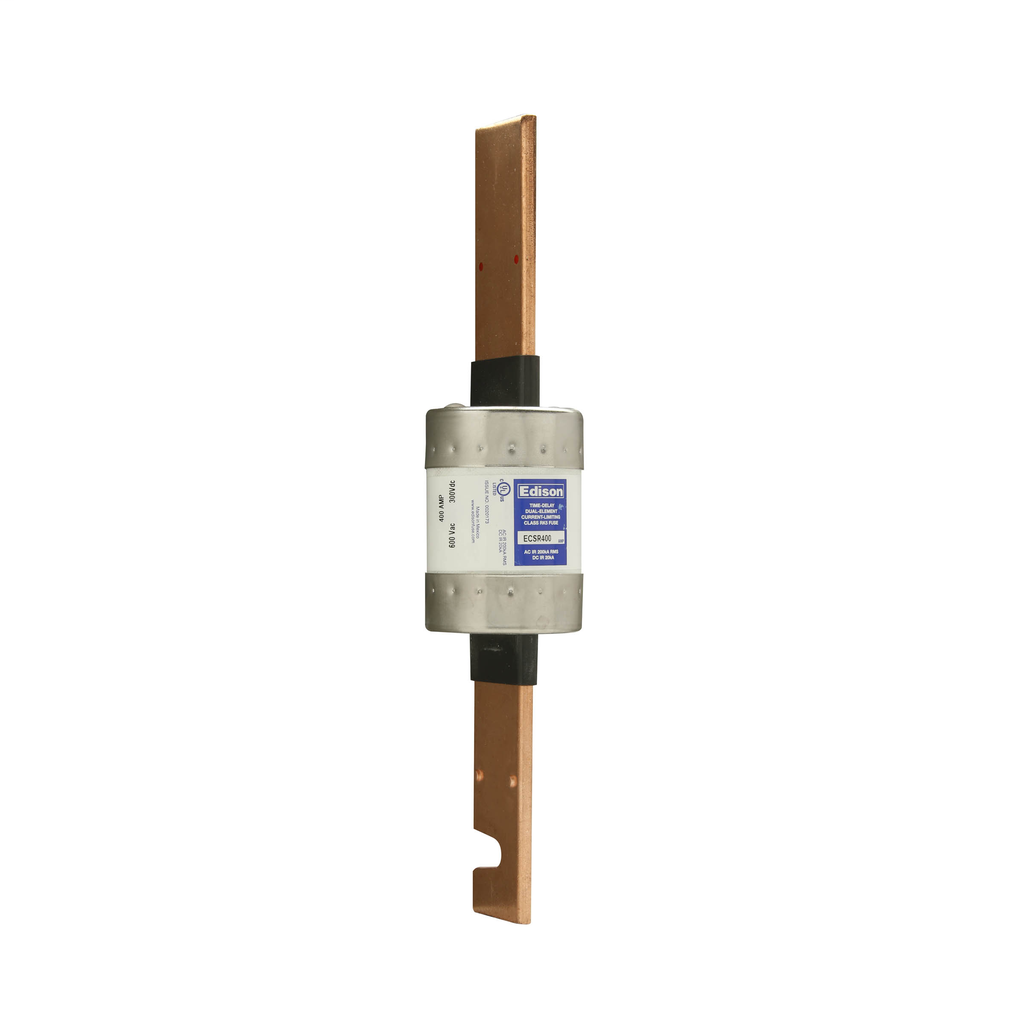

BUSS ECSR400 UL CLASS RK-5 TIME DEL
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$206.68/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # ECSR400
North Coast Part # 1679701

Specifications

  • Height: 11.63 IN
  • Length: 2.34 IN
  • Width: 2.34 IN
  • Weight: 2.35 LB
  • Type: Time delay, Current-limiting
  • Special Features: Superior overload and cycling capabilities
  • Voltage Rating: 600V
  • Amperage Rating: 400A
  • Interrupt Rating: 200 kAIC
  • Class: Class RK5
  • Connection: Blade end X blade end
  • Packaging Type: Standard
  • Diameter: 2.34 IN
  • Fuse Indicator: Non Indicating
  • Response Time: 10s at 500%
  • Number Of Elements: Dual

Overview

UPC 78263450853
GTiN 00782634508533
Length 2.34 in
Width 2.34 in
Size 2.34 In Diameter X 11.63 In Length
Voltage 600 Volt
Type Current Limiting,Time-Delay
Diameter 2.34 in
Applications AC Power Distribution System Mains, Feeders and Branch Circuits, Protection of Motor and Motor Branch Circuits, Transformers and Other Inductive Loa
Height 11.63 in
Weight 2.35 lb
Standard UL,CSA C22.2
Connection Type Blade
Family Brand Name Bussmann Series
Class Class RK5
TC Connection Blade End X Blade End
Amperage 400 Amp
Response Time 10 S At 500%
End Type Blade
Interrupt Rating 200 kA
Element Dual
Sub Brand Edison
