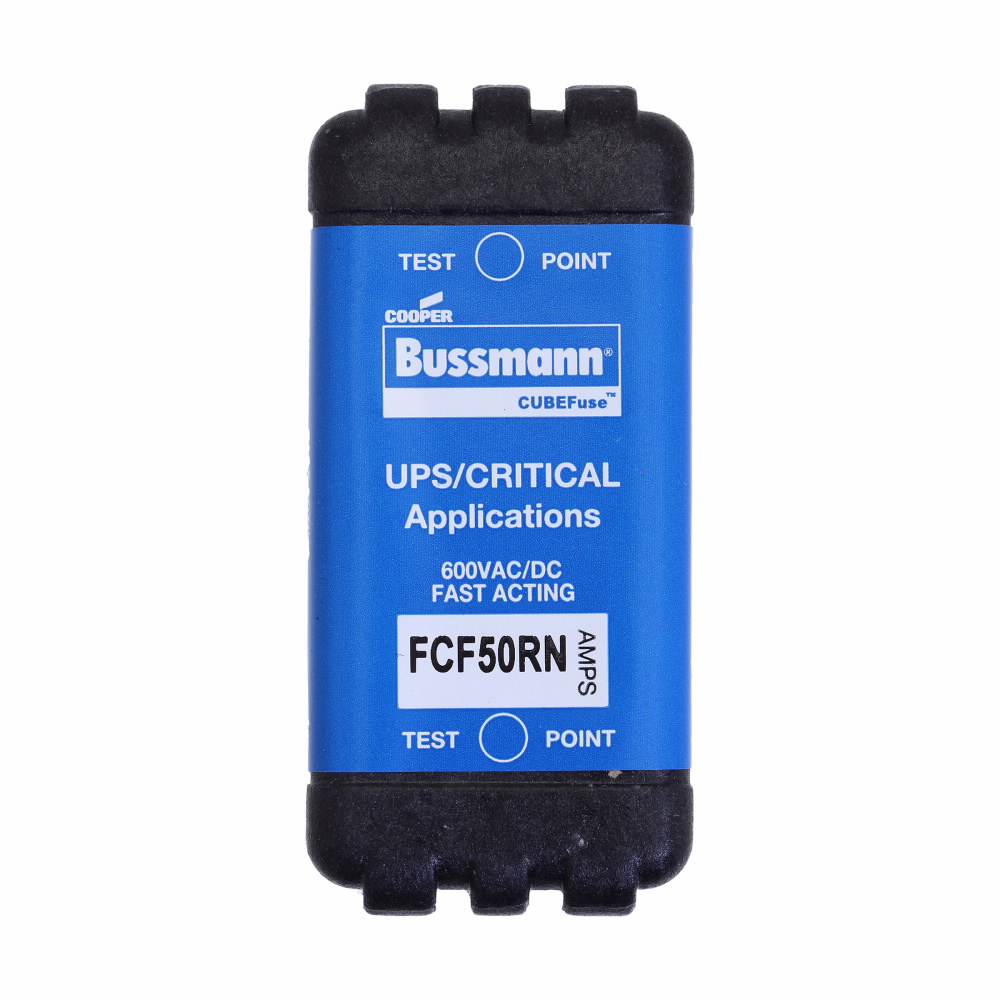

BUSS FCF50RN Fast Acting CUBEFuse 5
$112.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # FCF50RN
North Coast Part # 1828220

Specifications

  • Fuse Indicator: Non Indicating
  • Special Features: Finger safe
  • Interrupt Rating: 300 kAIC at 600 Vac, 50 kAIC at 600 Vdc
  • Number Of Elements: 1
  • Color: Black body
  • Connection: Blade End
  • Response Time: 6 min at 200%
  • Material Type: Glass filled PES
  • Amperage Rating: 50A
  • Frequency Rating Maximum: 60 HZ
  • Fuse Type: Fast Acting, class CF
  • Type: Fast acting
  • Used With: TCFH60N, CCP2-3-60CF
  • Amperage Rating Numeric: 50 A
  • Frequency Rating Minimum: 50 HZ
  • Class: Class CF
  • Operating Temperature: -40° to 80°C
  • Voltage Rating: 600 Vac, 600 Vdc
  • Terminal Material: Electroless tin plated copper alloy terminal
  • Application: Critical/UPS
  • Voltage Rating Numeric: 600 V
  • Packaging Type: Standard

General

  • UPC: 051712362528
  • Product Length/Depth: 2.13 IN
  • Product Height: 1.9 IN
  • Product Width: 1 IN
  • Product Weight: .17 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: UL Listed

Overview

UPC 05171236252
GTiN 00051712362528
Length 2.13 in
Width .001 in
Size 2.13 In Length X 1.00 In Width
Color Black
Operating Temperature -40 To 80 C
Voltage 600 Volt
Type Fast Acting
Material Glass Filled Polyethersulfone Case, Electroless Tin Plated Copper Alloy Terminal
Applications Ind Facilities & Factories - Facility: Safety and Security SystemsDatacenters - Facilities: Power DistributionCommercial / Institutional Buildings / Structures - Critical PowerInd Facilities & Factories - Facility: Power Distribution and ControlStationary Machinery and Equipment Outside Factory - HVAC
Height 1.9 in
Weight .17 lb
Connection Type Blade End
Family Brand Name Eaton
Class Class CF
Amperage 50 Amp
Response Time 6 Min at 200%
Interrupt Rating 600 V
Sub Brand Bussmann Series
TC Connection Blade End
Blade Dimensions 2.1300 IN X 1.0000 IN X 1.9000 IN
