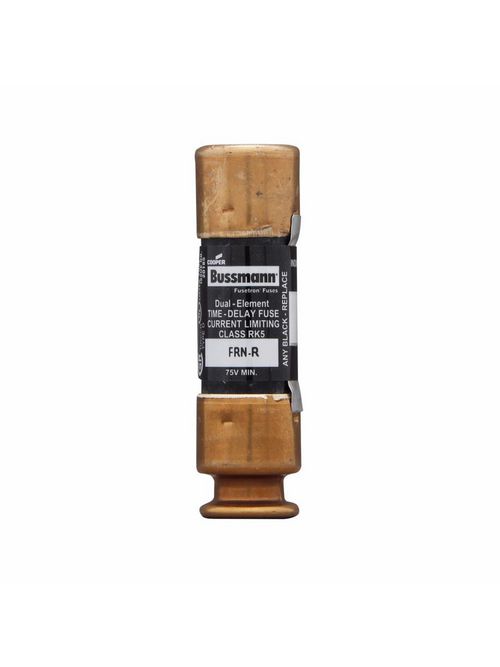

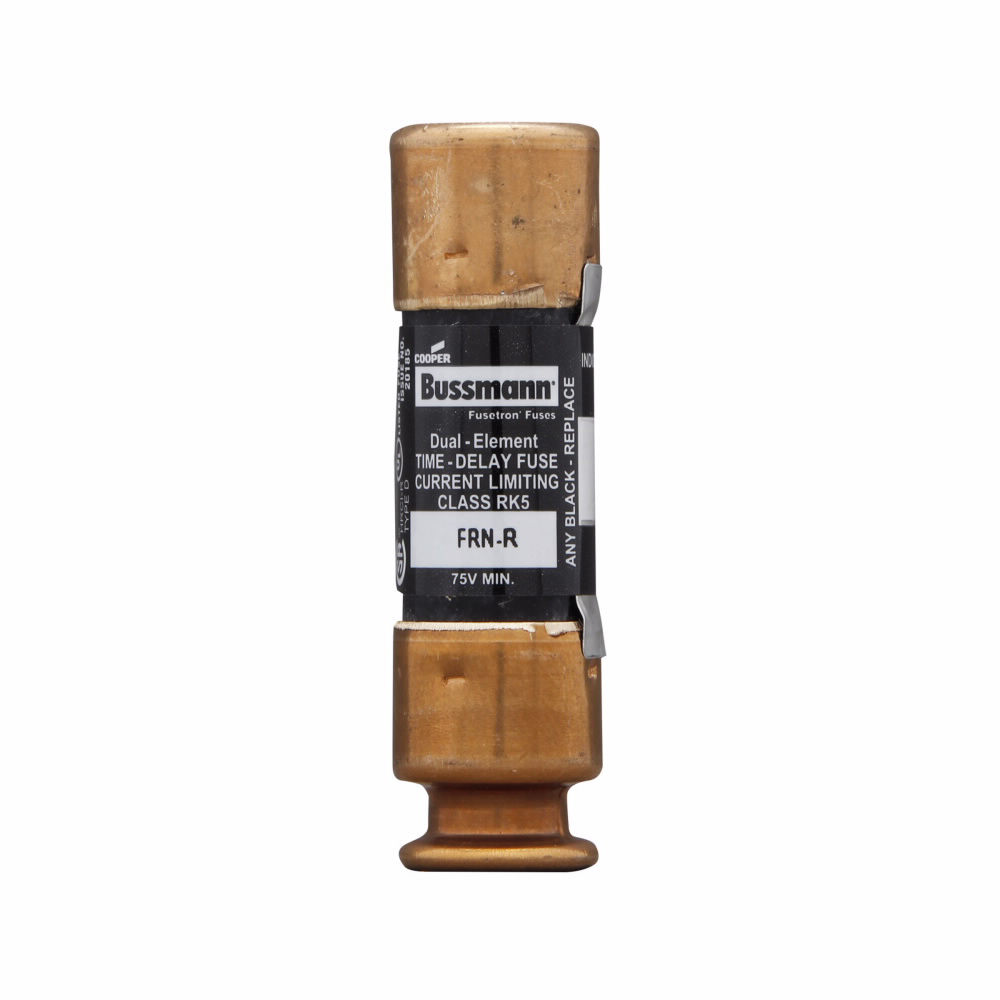

BUSS FRN-R-15ID FUSETRON DUAL-ELEME
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$14.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # FRN-R-15ID
North Coast Part # 1272166

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
  • Type: Current-limiting, time delay
  • Number Of Elements: Dual
  • Connection: Ferrule end X ferrule end
  • Response Time: 8s at 500%
  • Class: Class RK5
  • Voltage Rating: 250 Vac, 125 Vdc
  • Application: Combination starters, motor control centers, machinery disconnects, power panelboards
  • Amperage Rating: 15A
  • Diameter: .56 IN
  • Packaging Type: Standard

General

  • UPC: 051712204378
  • Product Length/Depth: 2 IN
  • Product Height: .56 IN
  • Product Width: .56 IN
  • Product Weight: .5 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Categories

Overview

UPC 05171220437
Item Long Description Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 15A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Ferrule end X ferrule end, Class RK5 - FRN-R-15ID
GTiN 00051712204378
Length 2 in
Width .54 in
Size 0.56 In Diameter X 2.00 In Length
Voltage 125 Volt
Type Current Limiting,Time Delay
Diameter .56 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .56 in
Weight .5 lb
Standard CE,CSA C22.2,UL 248-12
Connection Type Ferrule
Family Brand Name Eaton
Class RK5
TC Connection Ferrule end x ferrule end
Amperage 15 Amp
Response Time 8 seconds at 500%
End Type Ferrule
Interrupt Rating 20 kA
Element Dual
Sub Brand Bussmann Series
Blade Dimensions 2.0000 IN X 0.5600 IN X 0.5600 IN
