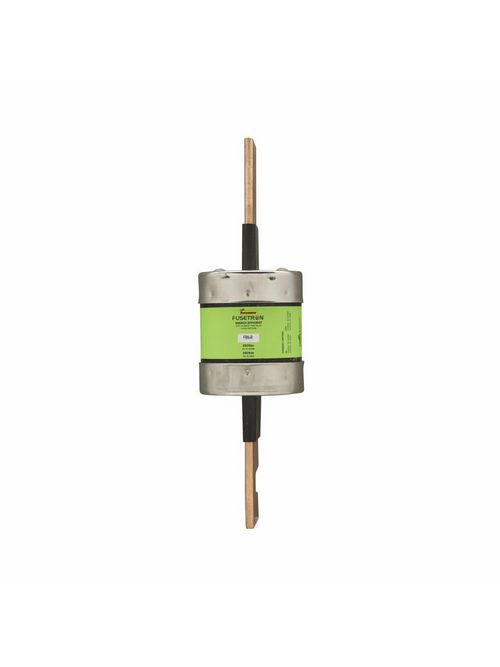

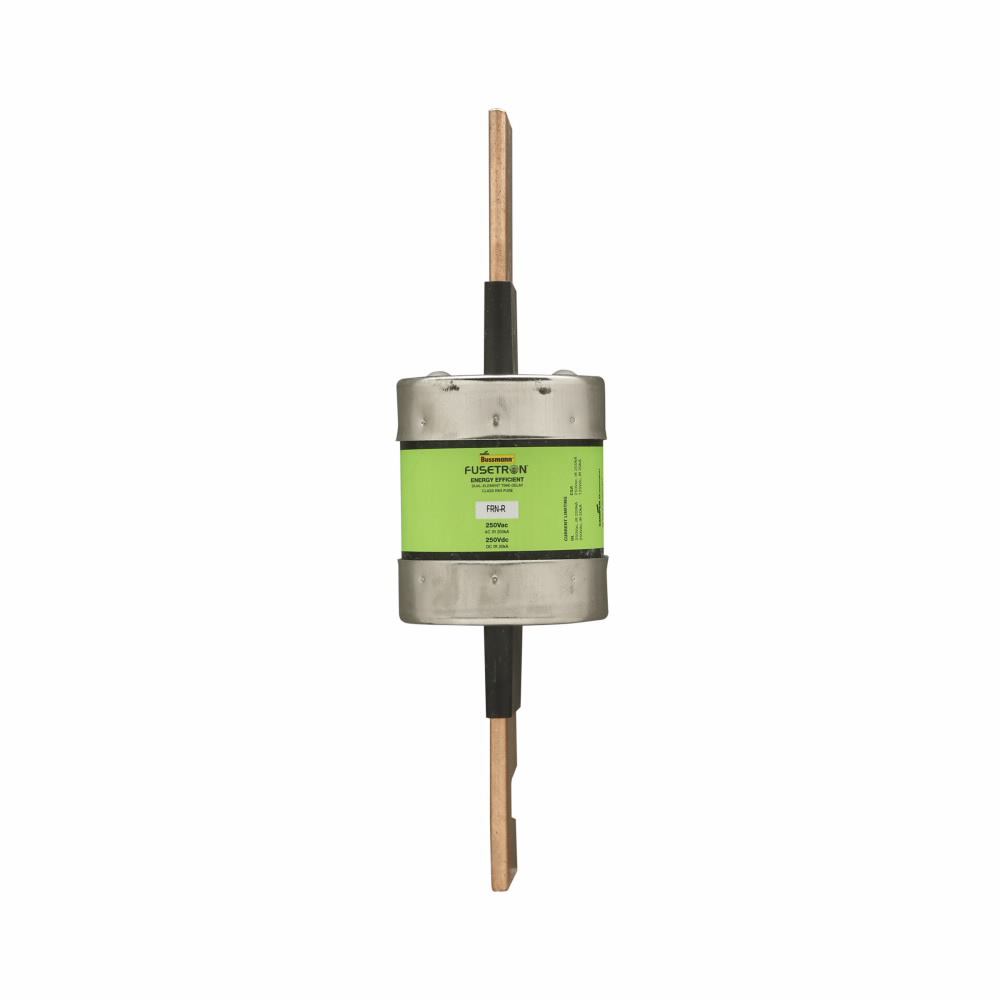

Bussmann Series FRN-R-500 Fusetron Dual Element
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$377.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # FRN-R-500
North Coast Part # 159547

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc
  • Type: Current-limiting, time delay
  • Number Of Elements: Dual
  • Connection: Blade end X blade end
  • Response Time: 10s at 500%
  • Class: Class RK5
  • Voltage Rating: 250 Vac, 125 Vdc
  • Application: Combination starters, motor control centers, machinery disconnects, power panelboards
  • Amperage Rating: 500A
  • Diameter: 2.88 IN
  • Packaging Type: Standard

General

  • UPC: 051712507554
  • Product Length/Depth: 3 IN
  • Product Height: .81 IN
  • Product Width: .81 IN
  • Product Weight: .11 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

UPC 05171250755
Item Long Description Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 500A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5
GTiN 00051712507554
Length 3 in
Width .81 in
Size 2.88 In Diameter X 10.38 In Length
Voltage 250 Volt
Type Current Limiting,Time Delay
Diameter 2.88 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .81 in
Weight .11 lb
Standard CE,CSA C22.2,UL 248-12
Connection Type Blade
Family Brand Name Bussmann Series
Class RK5
TC Connection Blade end x blade end
Amperage 500 Amp
Response Time 10 seconds at 500%
End Type Blade
Interrupt Rating 20 kA
Element Dual
Sub Brand Bussmann Series
Blade Dimensions 3.0000 IN X 0.8100 IN X 0.8100 IN
