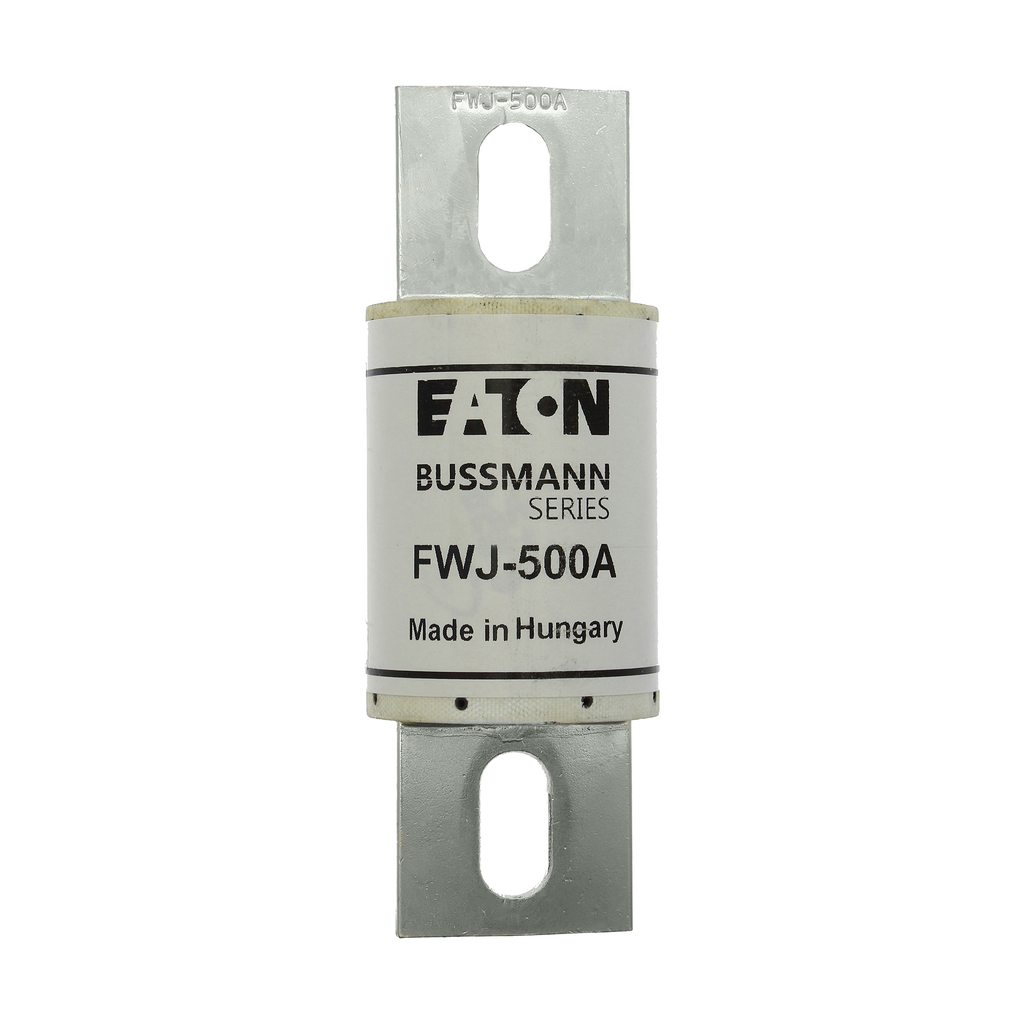

Bussmann Series FWJ-500A 500 Amp 1000 VAC Semiconductor High Speed Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$906.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # FWJ-500A
North Coast Part # 1828232

Specifications

  • Fuse Indicator: None
  • Interrupt Rating: 25 kAIC (35-200A), 100 kAIC (250-2000A), 50 kAIC at 800 Vdc (35-200A, 450-600A)
  • Construction Size: Other
  • Clearing (I2T): Clearing at 1000V: 329000
  • Connection: Blade end X blade end
  • Insulated Metal Gripping Lugs (IMGL): No
  • Amperage Rating: 500A
  • Utilization category: Other
  • Watt Losses: 95W
  • Mounting: Stud
  • Type: High speed fuse
  • Rated switching capacity: 100 A
  • Fuse Shape: centre-bolted tags
  • Amperage Rating Numeric: 500 A
  • Pre Arc (I2T): 39500
  • Voltage Rating: 700 Vac/dc
  • Application: protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
  • Voltage Rating Numeric: 1000 V
  • Voltage Type: AC/DC
  • Packaging Type: Standard

General

  • UPC: 051712796279
  • EAN: 5027590021340
  • Product Length/Depth: 183 MM
  • Product Height: 51 MM
  • Product Width: 51 MM
  • Product Weight: 2195.39 G
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: CSA Certified

Categories

Overview

UPC 05171279627
GTiN 00051712796279
Length 183 mm
Width 51 mm
Size 2.500 In Diameter X 7.201 In Length
Voltage 700 Volt
Type High Speed Fuse
Applications Ind Facilities & Factories - Facility: Safety and Security SystemsElec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - OtherElec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMsInd Facilities & Factories - Facility: Critical Power
Mounting Type Stud
Height 51 mm
Weight 2195.39 g
Standard CE,UL
Connection Type Blade
Family Brand Name Bussmann Series
TC Connection Blade end x blade end
Amperage 500 Amp
End Type Blade
Interrupt Rating 100 kA
Blade Dimensions 7.2047 IN X 2.0079 IN X 2.0079 IN
Sub Brand Bussmann Series
