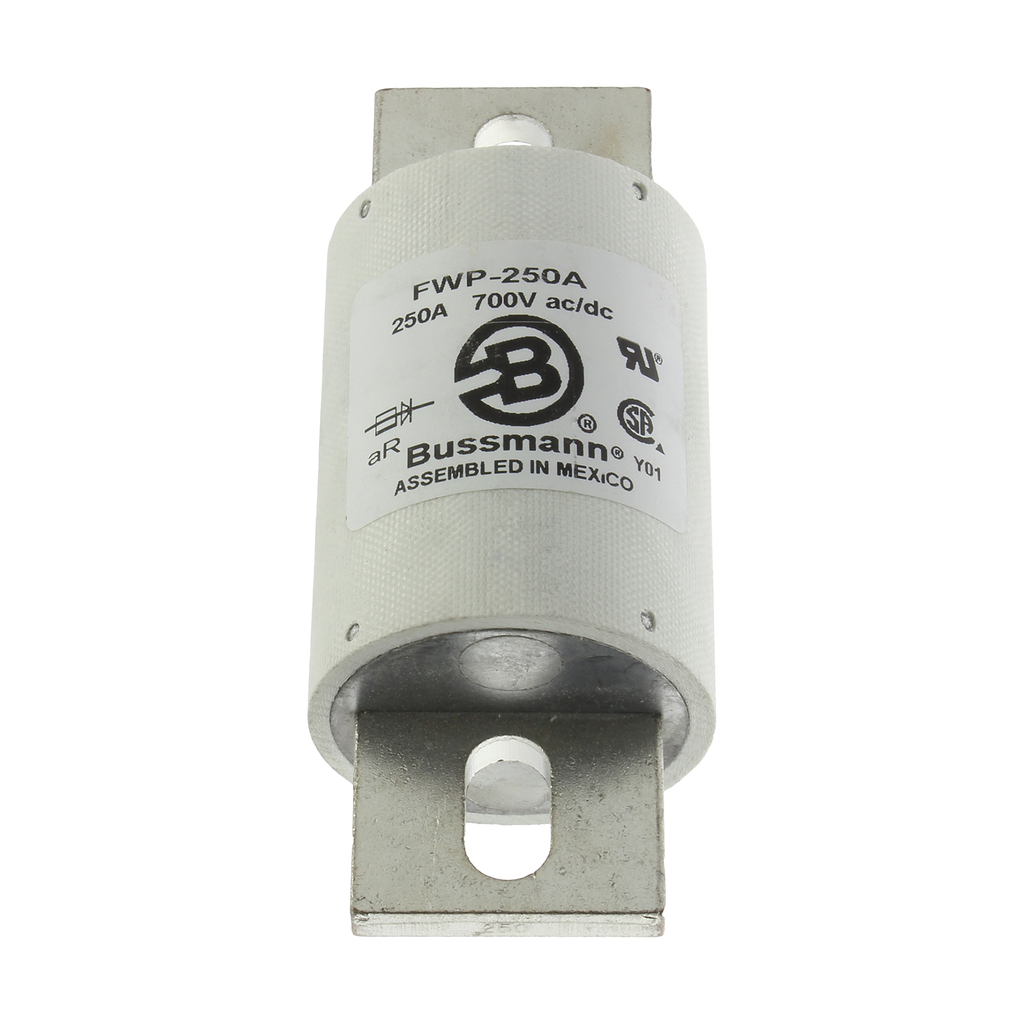

Bussmann Series FWP-250A 250 Amp High Speed Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # FWP-250A
North Coast Part # 151717


  • Height: 5.4 IN
  • Length: 2.4 IN
  • Width: 2.9 IN
  • Weight: 1.7 LB
  • Type: North American style
  • Application: DC common bus, DC drives, power converters/rectifiers, reduced voltage starters
  • Amperage Rating: 250A RMS
  • Interrupt Rating: 200 kAIC Vac, 50 kAIC at 700 Vdc
  • Connection: Blade end X blade end
  • Mounting: Stud
  • Packaging Type: Standard
  • Clearing (I2T): Clearing at 700V: 42500
  • Fuse Indicator: Non Indicating
  • Pre Arc (I2T): 10500
  • Watt Losses: 48W


UPC 05171215040
Item Long Description Eaton Bussmann series FWP high speed fuse, 250A RMS, 200 kAIC Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Blade end X blade end, Stud
GTiN 00051712150408
Length 2.4 in
Width 2.9 in
Size 2.00 In Diameter X 5.09 In Length
Type North American Style
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Mounting Type Stud
Height 5.4 in
Weight 1.7 lb
Connection Type Blade
Family Brand Name Bussmann Series
TC Connection Blade end x blade end
Amperage 250 Amp
End Type Blade
Interrupt Rating 200 kA
Blade Dimensions 2.4000 IN X 2.9000 IN X 5.4000 IN
Sub Brand Bussmann Series
Voltage 700 VAC//VDC
