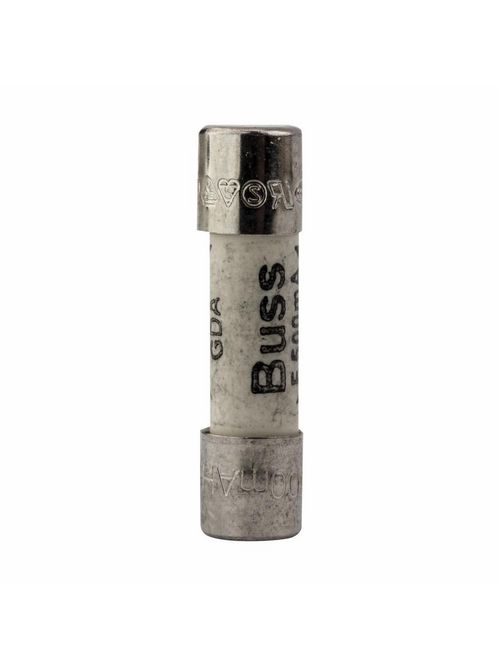

Bussmann Series GDA-630MA Small Dimension Fuse
Product image thumbnail 0
Product image thumbnail 1
$6.88/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # GDA-630MA
North Coast Part # 10133

Specifications

  • Height: .25 IN
  • Length: .75 IN
  • Width: .25 IN
  • Weight: .002 LB
  • Type: Electronic, European (IEC)
  • Application: Electronic circuits
  • Voltage Rating: 250V
  • Amperage Rating: 630 mA
  • Interrupt Rating: 1.5 kAIC at 250 Vac
  • Connection: Ferrule end X ferrule end
  • Material Type: Ceramic tube with nickel-plated endcaps
  • Packaging Type: Standard
  • Frequency Rating Maximum: 50 HZ
  • Melting (L2T): Typical: .064A
  • Resistance: Typical DC cold: .34 ohms
  • Voltage Drop: Typical: 1200 mV
  • Fuse Indicator: Non Indicating
  • Notes: High breaking capacity

Overview

UPC 05171243127
GTiN 00051712431279
Length .75 in
Width .25 in
Size 5.20 mm Diameter X 20.00 mm Height
Voltage 250 Volt
Type Electronic, European (IEC)
Applications Electronic Circuits
Height .25 in
Weight .002 lb
Connection Type Ferrule
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 630 mA
End Type Ferrule
Interrupt Rating 1.5 kA
