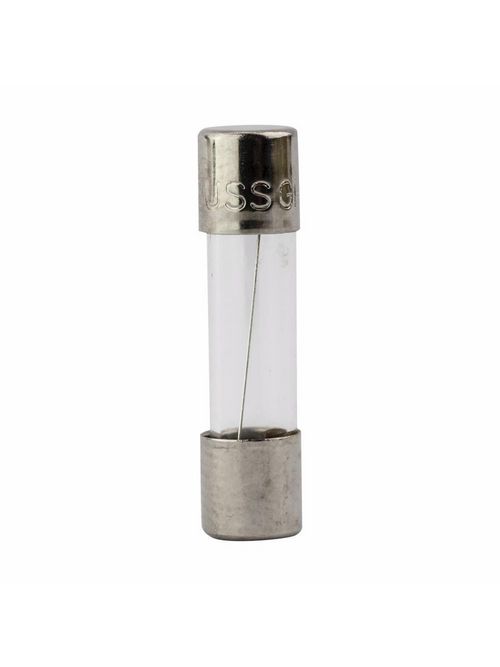

Bussmann Series GMA-15-R 15 Amp Fuse
Product image thumbnail 0
Product image thumbnail 1
$82.65/c (100 ea)
Usually ships within 6 to 8 Days
ea
Adding...
Order in multiples of 5 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # GMA-15-R
North Coast Part # 429315

Specifications

  • Height: .25 IN
  • Length: .75 IN
  • Width: .25 IN
  • Weight: .002 LB
  • Type: Electronic- small dimension
  • Application: Electronic circuits
  • Voltage Rating: 125 Vac, 32 Vdc
  • Amperage Rating: 15A
  • Interrupt Rating: 150 AIC at 125 Vac
  • Connection: Ferrule end X ferrule end
  • Material Type: Glass tube, nickel-plated brass endcaps
  • Packaging Type: Standard
  • Fuse Indicator: Non Indicating
  • Response Time: 60 min maximum at 135%, 2 min maximum at 200%

Overview

UPC 05171264787
GTiN 00051712647878
Length .75 in
Width .25 in
Size 5.20 mm Diameter X 20.00 mm Height
Voltage 125 Volt
Type Electronic,Small Dimension
Applications Electronic Circuits
Height .25 in
Weight .002 lb
Standard CE,CSA,UL 248-14
Connection Type Ferrule
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 15 Amp
Response Time 2 minutes maximum at 200%,60 minutes maximum at 135%
End Type Ferrule
Interrupt Rating 150 A
