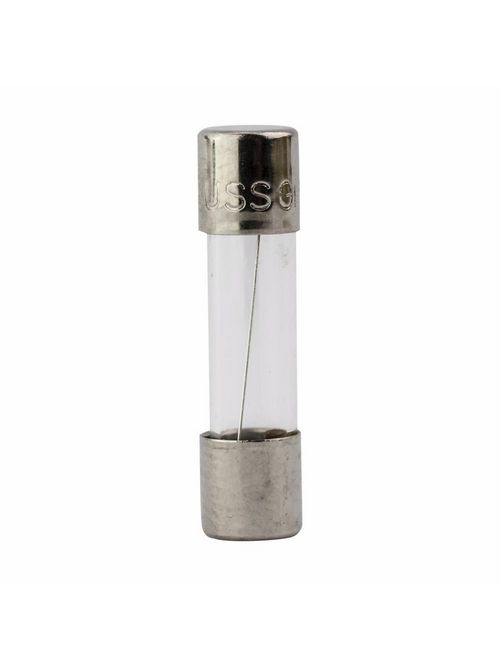

Bussmann Series GMA-5-R 5 Amp Fuse
Product image thumbnail 0
Product image thumbnail 1
$79.35/c (100 ea)
In Stock | 35 available at 1 location
Adding...
Order in multiples of 5 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # GMA-5-R
North Coast Part # 155320

Specifications

  • Type: Electronic- small dimension
  • Application: Electronic circuits
  • Amperage Rating: 5A
  • Voltage Rating: 125 Vac, 32 Vdc (self certified)
  • Interrupt Rating: 10 kAIC at 125 Vac (p.f.=.7-.8)
  • Fuse Indicator: Non Indicating
  • Packaging Type: Standard
  • Response Time: 60 min maximum at 135%, 2 min maximum at 200%
  • Material: Glass tube, nickel-plated brass endcaps
  • Connection: Ferrule end X ferrule end
  • Height: .25 IN
  • Length: .75 IN
  • Width: .25 IN
  • Weight: .002 LB

Product Compliance

  • CE Marked
  • RoHS Compliant

Categories

Overview

UPC 05171264798
GTiN 00051712647984
Length .75 in
Width .25 in
Size 5 mm Diameter X 20 mm Length
Voltage 125 Volt
Type Electronic,Small Dimension
Material Brass,Glass,Nickel-Plated
Applications Electronic Circuits
Height .25 in
Weight .002 lb
Standard CE,CSA,UL 248-14
Connection Type Ferrule End X Ferrule End
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 5 Amp
Response Time 2 Min Maximum At 200%,60 Min Maximum At 135%
Interrupt Rating 10 kA
Indicator Non Indicating
