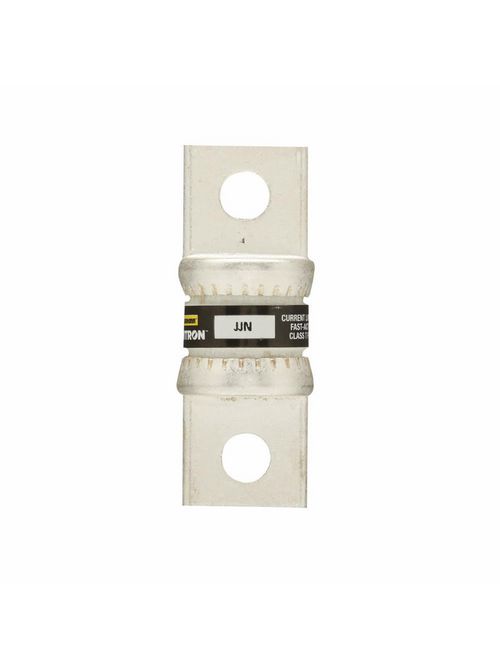

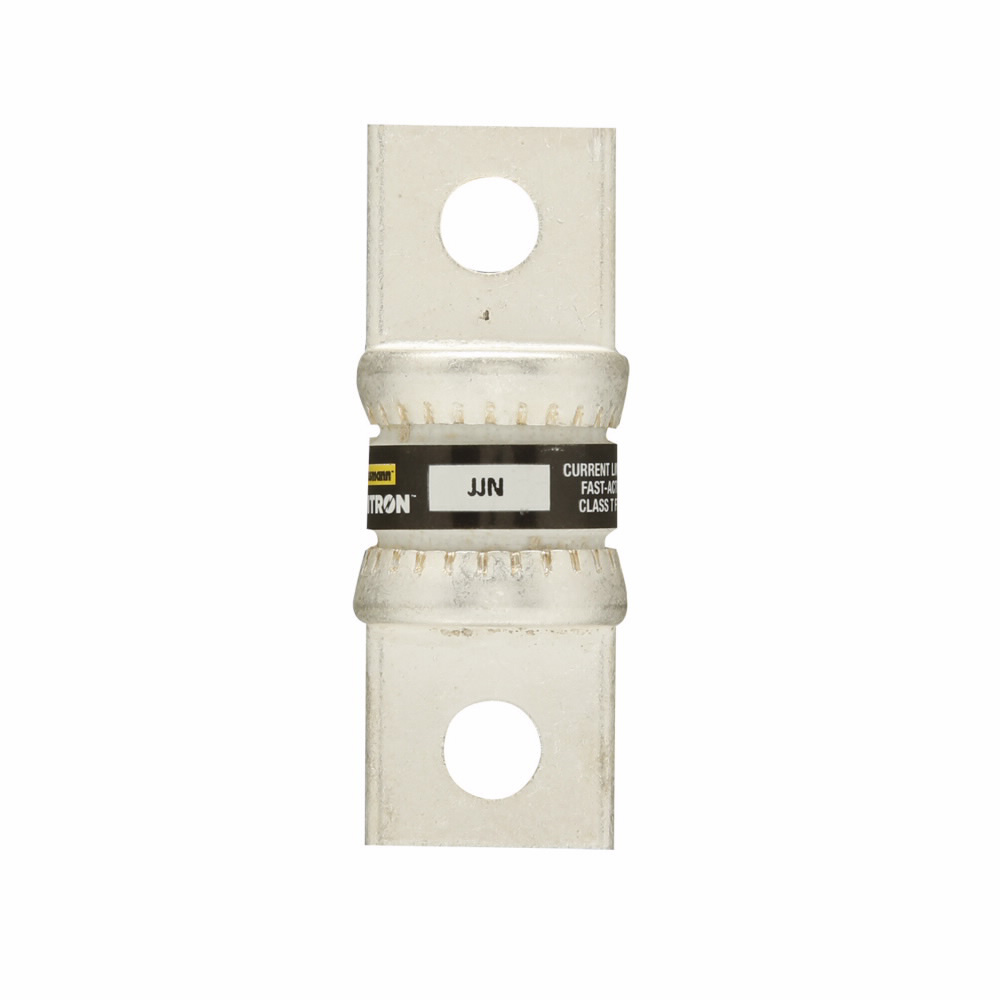

Bussmann Series JJN-70 Class T Tron Fast Acting Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$28.10/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # JJN-70
North Coast Part # 151707

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 200 kAIC at 300 Vac, 20 kAIC at 160 Vdc
  • Type: Current-limiting, Very Fast Acting Fuse
  • Connection: Bolted blade end X bolted blade end
  • Quantity: Carton: 5
  • Class: Class T
  • Voltage Rating: 300 Vac, 160 Vdc
  • Application: Large apartment complexes, multi-family meter stacks, VFD line protection
  • Amperage Rating: 70A
  • Diameter: .75 IN
  • Packaging Type: Standard

General

  • UPC: 051712627702
  • EAN: 5027590508773
  • Product Length/Depth: .75 IN
  • Product Height: 2.16 IN
  • Product Width: .001 IN
  • Product Weight: .78 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Categories

Overview

UPC 05171262770
GTiN 00051712627702
Length .75 in
Size 0.75 In Diameter X 2.16 In Length
Voltage 160 Volt
Type Very Fast Acting,Current Limiting
Diameter .75 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 2.16 in
Weight .78 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class T
TC Connection Bolted blade end x bolted blade end
Amperage 70 Amp
End Type Blade,Bolted
Interrupt Rating 200 kA
Sub Brand Bussmann Series
Blade Dimensions 0.7500 IN X 0.0010 IN X 2.1600 IN
