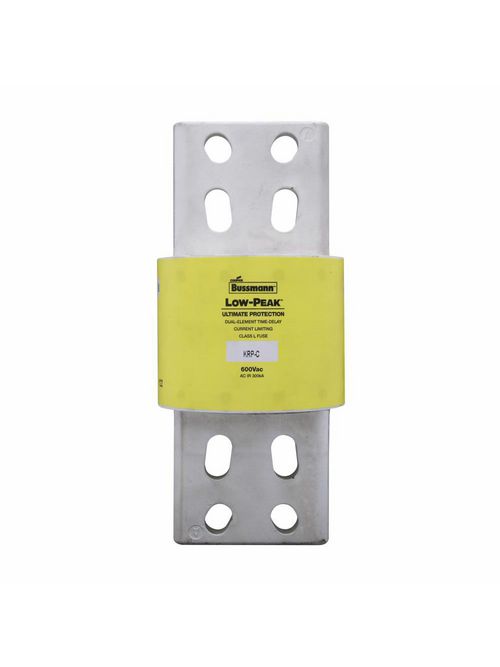

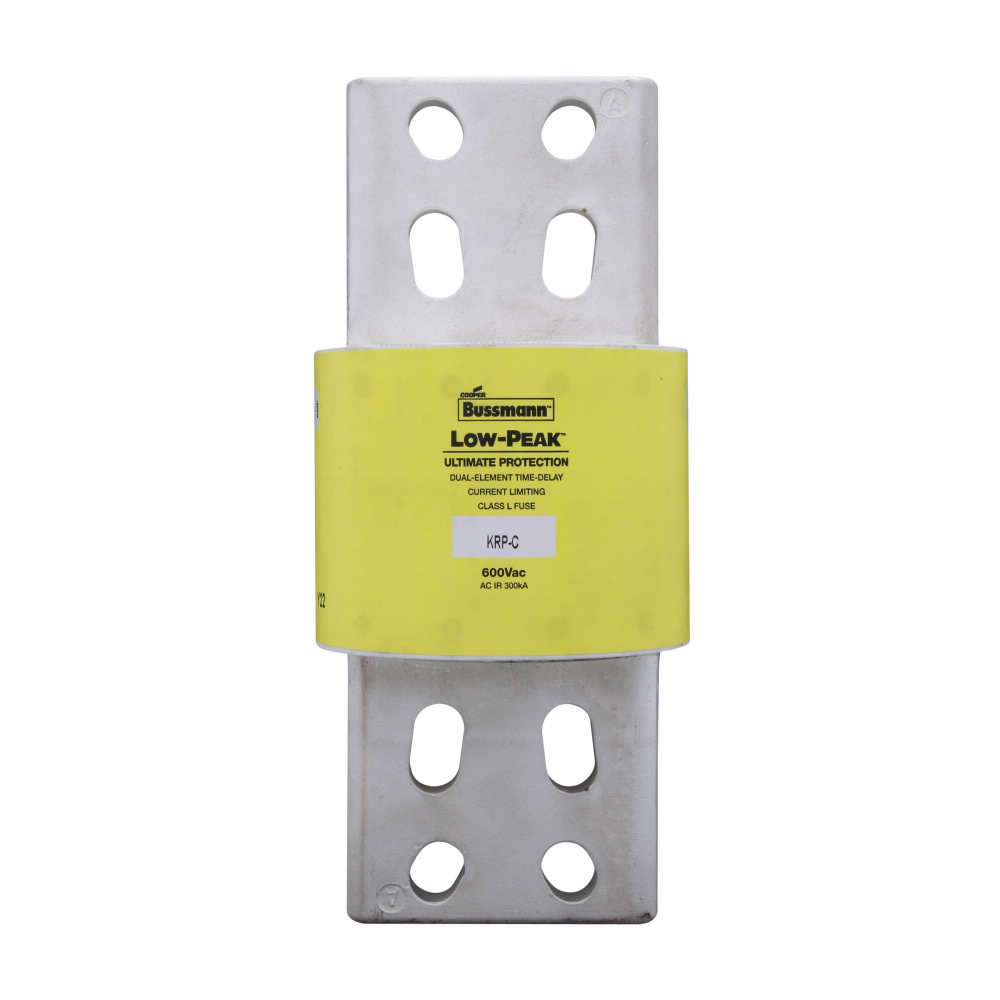

Bussmann Series KRP-C-3000SP Low Peak Fuse Time Delay
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,612.01/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # KRP-C-3000SP
North Coast Part # 157546

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC Vdc
  • Type: Current-limiting, Time-delay
  • Connection: Bolted blade end X bolted blade end
  • Response Time: 4 S at 500%
  • Class: Class L
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Large distribution switchboards, large machinery disconnects, power panelboards
  • Amperage Rating: 3000A
  • Diameter: 5 IN
  • Packaging Type: Standard

General

  • UPC: 051712605304
  • Product Length/Depth: 10.75 IN
  • Product Height: 5.03 IN
  • Product Width: 5.03 IN
  • Product Weight: 16.9 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Categories

Overview

UPC 05171260530
GTiN 00051712605304
Length 10.75 in
Width 5.3 in
Size 5.00 In Diameter X 10.75 In Length
Voltage 300 Volt
Type Current Limiting,Time-Delay
Diameter 5 in
Material Melamine Glass Tube
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 5.03 in
Weight 16.9 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class L
TC Connection Bolted blade end x bolted blade end
Amperage 3000 Amp
Response Time 4 sec at 500%
End Type Blade,Bolted
Interrupt Rating 100 kA
Sub Brand Bussmann Series
Blade Dimensions 10.7500 IN X 5.0300 IN X 5.0300 IN
