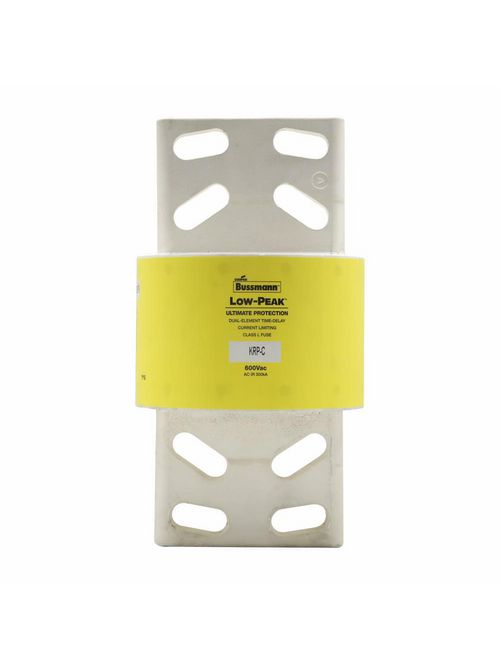

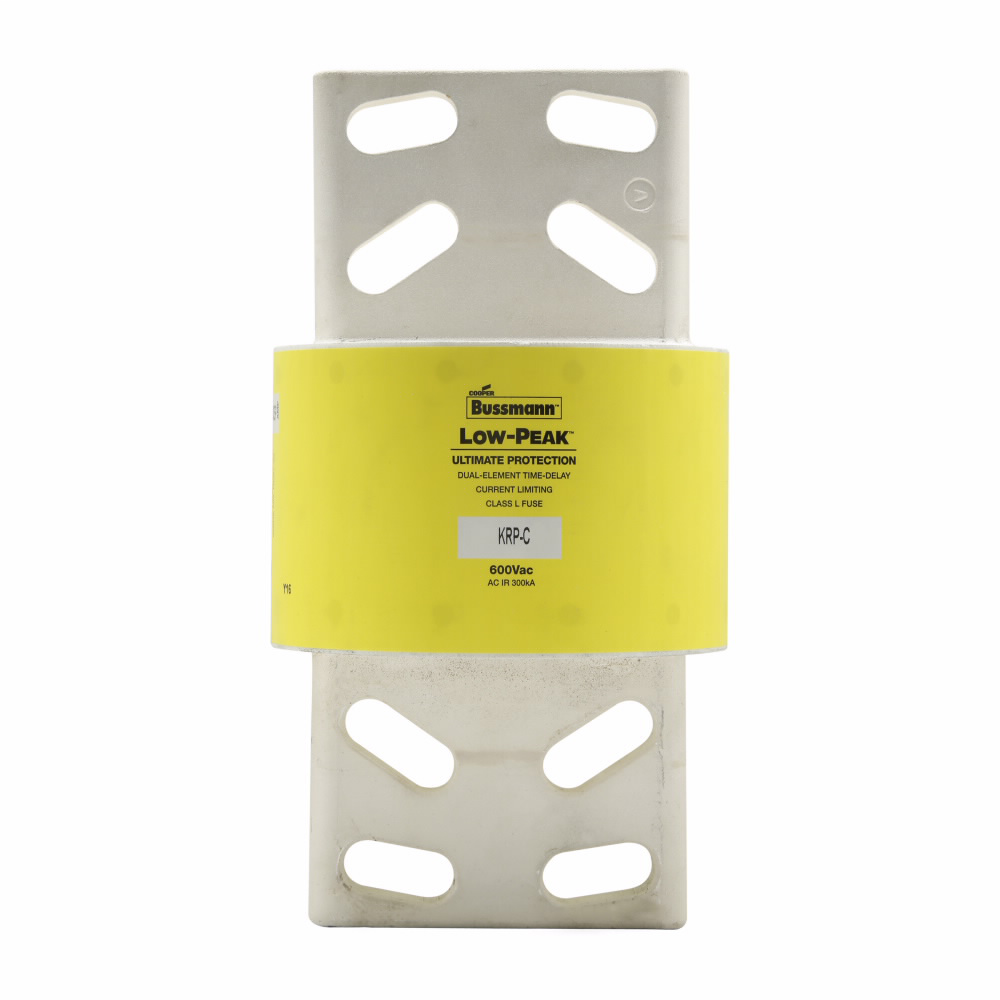

Bussmann Series KRP-C-3500SP 3500 Amp 600 VAC Class L Time Delay Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # KRP-C-3500SP
North Coast Part # 680716


  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 300 kAIC at 600 Vac
  • Type: Current-limiting, Time Delay
  • Connection: Bolted blade end X bolted blade end
  • Response Time: 4 S at 500%
  • Class: Class L
  • Voltage Rating: 600V
  • Application: Large distribution switchboards, large machinery disconnects, power panelboards
  • Amperage Rating: 3500A
  • Diameter: 5.75 IN
  • Packaging Type: Standard


  • UPC: 051712605359
  • Product Length/Depth: 10.75 IN
  • Product Height: 5.79 IN
  • Product Width: 5.79 IN
  • Product Weight: 22.15 LB
  • Warranty: Not Applicable
  • Compliances: RoHS Compliant


UPC 05171260535
Item Long Description Eaton Bussmann Series KRP-C Fuse, Current-limiting, Time Delay, 600V, 3500A, 300 kAIC at 600 Vac, Class L, Bolted blade end X bolted blade end, 1700, 5.75, Inch, Non Indicating, 4 S at 500%
GTiN 00051712605359
Length 10.75 in
Width 5.79 in
Size 5.75 In Diameter X 10.75 In Length
Voltage 300 Volt
Type Current Limiting,Time Delay
Diameter 5.75 in
Material Melamine Glass Tube
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 5.79 in
Weight 22.15 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class L
TC Connection Bolted blade end x bolted blade end
Amperage 3500 Amp
Response Time 4 S At 500%
End Type Blade,Bolted
Interrupt Rating 300 kA
Sub Brand Bussmann Series
Blade Dimensions 10.7500 IN X 5.7900 IN X 5.7900 IN
