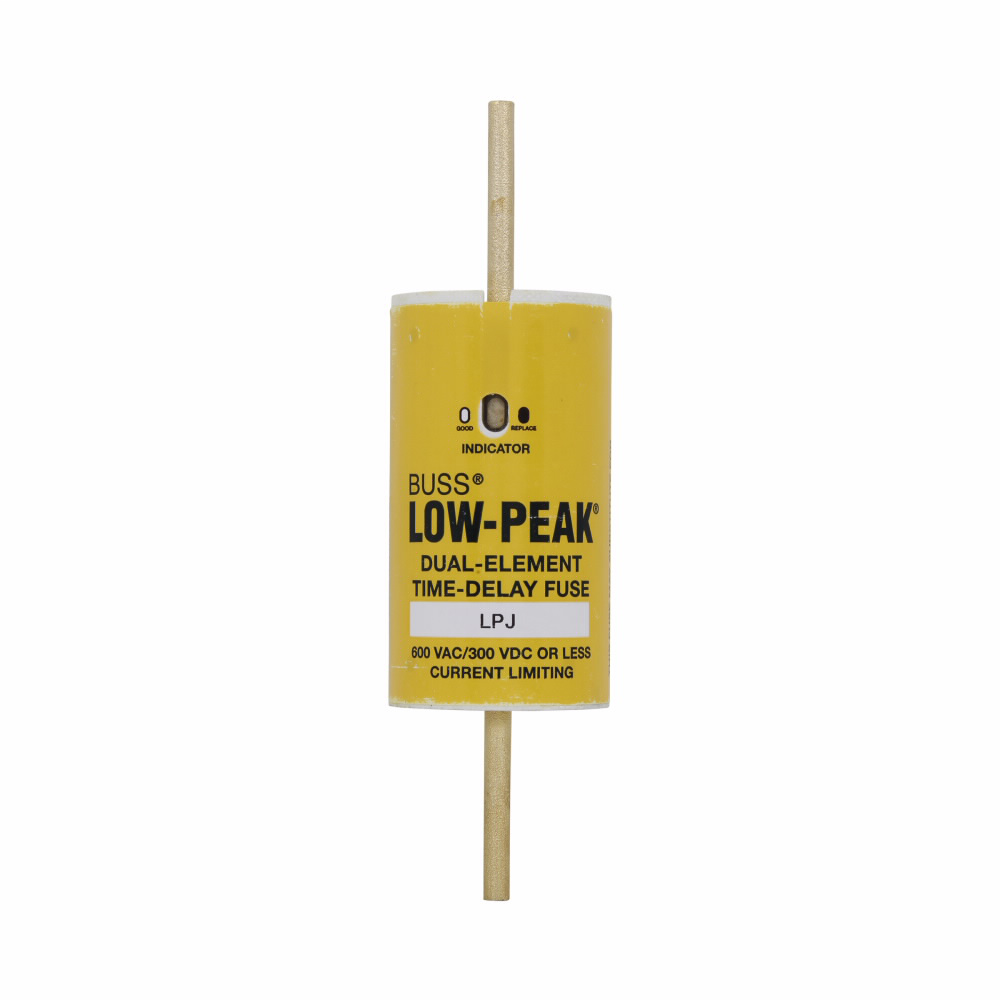

Bussmann Series LPJ-110SPI 110 Amp 600 VAC 300 VDC Class J Dual Element Time Delay Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$380.77/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # LPJ-110SPI
North Coast Part # 266757

Specifications

  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC Vdc
  • Type: Current-limiting, Time-delay
  • Number Of Elements: Dual
  • Connection: Bolted blade end X bolted blade end
  • Response Time: 10 S at 500%
  • Class: Class J
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Specialized circuits and industrial control
  • Amperage Rating: 110A
  • Diameter: 1.63 IN
  • Packaging Type: Standard

General

  • UPC: 051712627696
  • Product Length/Depth: 2.25 IN
  • Product Height: .81 IN
  • Product Width: .81 IN
  • Product Weight: .73 LB
  • Warranty: Not Applicable
  • Compliances: RoHS Compliant

Overview

UPC 05171262769
GTiN 00051712627696
Length 2.25 in
Size 1.63 In Diameter X 5.75 In Length
Voltage 300 Volt
Type Current Limiting,Time-Delay
Diameter 1.63 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .81 in
Weight .73 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class J
TC Connection Bolted blade end x bolted blade end
Amperage 110 Amp
Response Time 10 seconds at 500%
End Type Blade,Bolted
Interrupt Rating 100 kA
Sub Brand Bussmann Series
Blade Dimensions 2.2500 IN X 0.8100 IN X 0.8100 IN
Standard CE,CSA C22.2,UL
Element Dual
