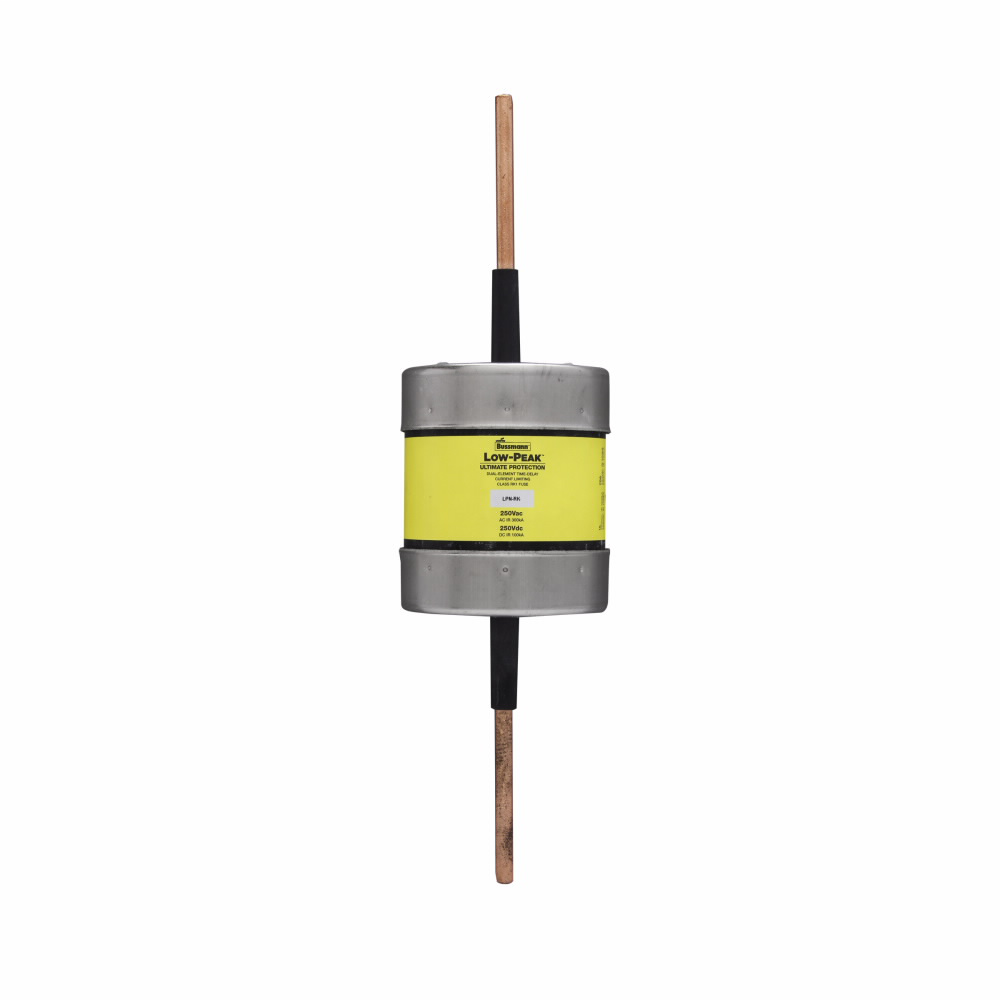

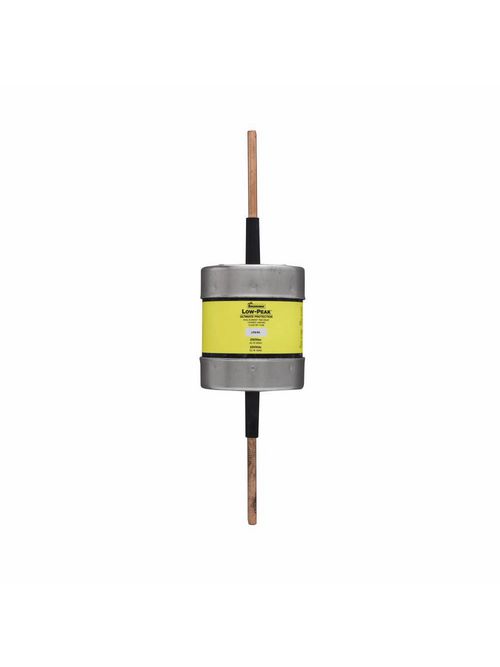

Bussmann Series LPN-RK-600SP Low Peak Dual Element Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$489.81/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # LPN-RK-600SP
North Coast Part # 156903

Specifications

  • Fuse Indicator: Non Indicating
  • Special Features: Electrically isolated end cap
  • Interrupt Rating: 300 kAIC at 250 Vac, 100 kAIC at 250 Vdc
  • Number Of Elements: Dual
  • Connection: Blade end X blade end
  • Quantity: Carton: 1
  • Amperage Rating: 600A
  • Type: Current-limiting, Time-delay
  • Class: Class RK1
  • Voltage Rating: 250 Vac, 250 Vdc
  • Application: Large distribution switchboards, power panelboards, motor control centers
  • Diameter: 2.88 IN
  • Packaging Type: Standard

General

  • UPC: 051712538589
  • Product Length/Depth: 10.38 IN
  • Product Height: 2.88 IN
  • Product Width: 2.88 IN
  • Product Weight: 3.25 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

GTiN 00051712538589
Length 10.38 Inch
Size 2.88 In Diameter X 10.38 In Length
Voltage 250 Volt
Type Current Limiting,Time-Delay
Diameter 2.88 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height 2.88 in
Weight 3.25 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class RK1
TC Connection Blade end x blade end
Amperage 600 Amp
Response Time 10 seconds at 500%
End Type Blade
Interrupt Rating 100 kA
Sub Brand Bussmann Series
Product UPC 05171253858
Blade Dimensions 10.3800 IN X 2.8800 IN X 2.8800 IN
Standard CE,CSA C22.2,UL
Element Dual
