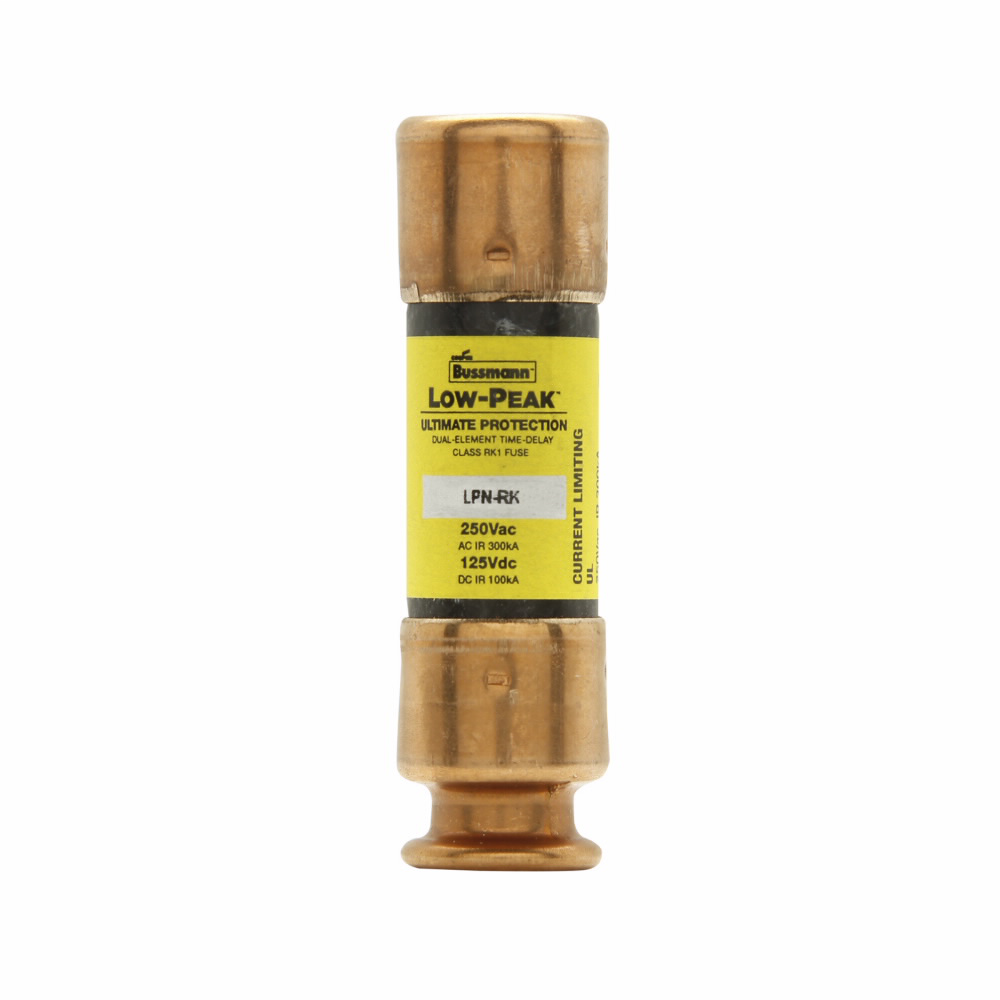

Bussmann Series LPN-RK-6SP Low Peak Dual Element Fuse
Product image thumbnail 0
Product image thumbnail 1
$14.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # LPN-RK-6SP
North Coast Part # 71798

Specifications

  • Fuse Indicator: Non Indicating
  • Special Features: Electrically isolated end cap
  • Interrupt Rating: 300 kAIC at 250 Vac, 100 kAIC at 125 Vdc
  • Number Of Elements: Dual
  • Connection: Ferrule end X ferrule end
  • Quantity: Carton: 10
  • Response Time: 8s at 500%
  • Amperage Rating: 6A
  • Type: Current-limiting, Time-delay
  • Class: Class RK1
  • Voltage Rating: 250 Vac, 125 Vdc
  • Application: Large distribution switchboards, power panelboards, motor control centers
  • Diameter: .56 IN
  • Packaging Type: Standard

General

  • UPC: 051712538251
  • EAN: 5027590091596
  • Product Length/Depth: 2 IN
  • Product Height: .56 IN
  • Product Width: .56 IN
  • Product Weight: .5 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

UPC 05171253825
GTiN 00051712538251
Length 2 in
Size 0.56 In Diameter X 2.00 In Length
Voltage 125 Volt
Type Current Limiting,Time-Delay
Diameter .56 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .56 in
Weight .5 lb
Standard CE,CSA C22.2,UL
Connection Type Ferrule
Family Brand Name Bussmann Series
Class Class RK1
TC Connection Ferrule end x ferrule end
Amperage 6 Amp
Response Time 8 seconds at 500%
End Type Ferrule
Interrupt Rating 100 kA
Element Dual
Sub Brand Bussmann Series
Blade Dimensions 2.0000 IN X 0.5600 IN X 0.5600 IN
