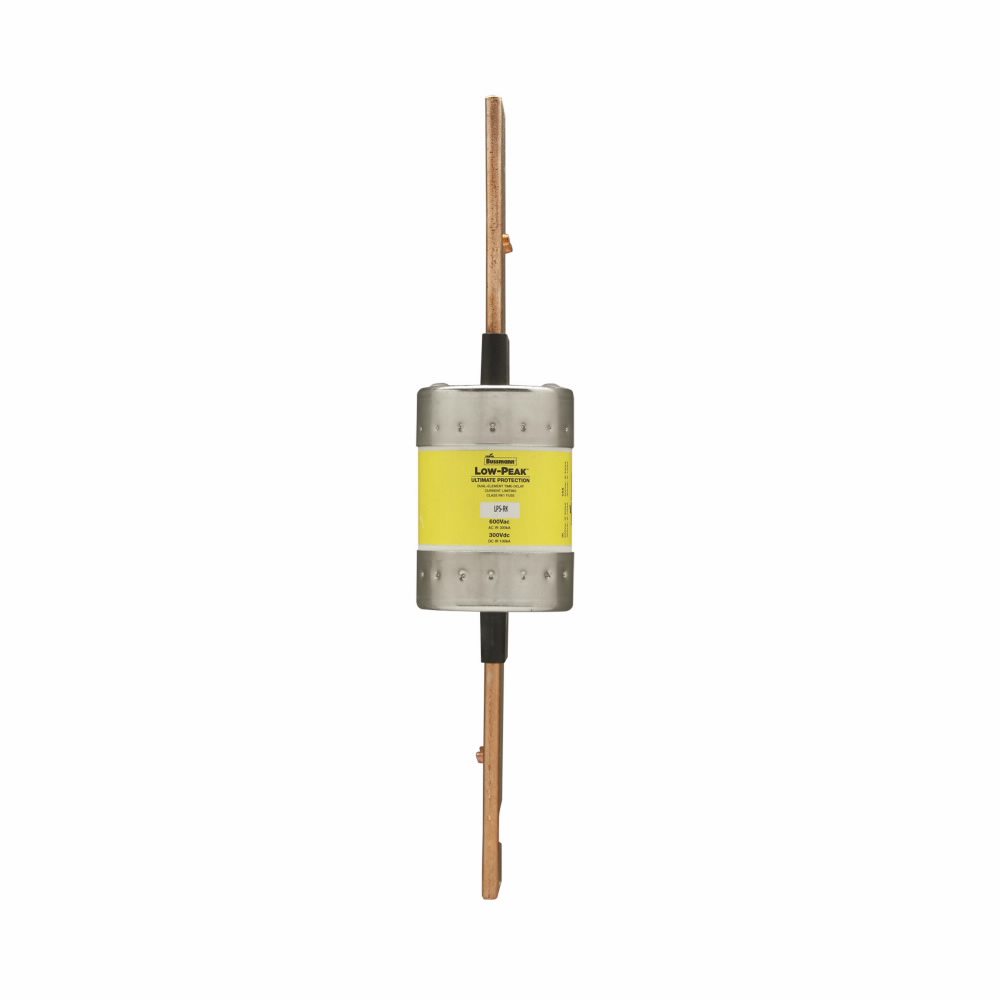

Bussmann Series LPS-RK-300SP Low Peak Dual Element Fuse

$577.32/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

Fuse Indicator: Non Indicating
Special Features: Electrically isolated end cap
Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Number Of Elements: Dual
Connection: Blade end X blade end
Quantity: Carton: 1
Amperage Rating: 300 A
Type: Current-limiting, Time-delay
Class: Class RK1
Voltage Rating: 600 Vac, 300 Vdc
Application: Large distribution switchboards, power panelboards, motor control centers
Diameter: 2.36 IN
Packaging Type: Standard

> View Substitutes (1)

UPC	05171254853
GTiN	00051712548533
Length	11.63 in
Size	2.36 In Diameter X 11.63 In Length
Voltage	300 Volt
Type	Current Limiting,Time-Delay
Diameter	2.36 in
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	2.36 in
Weight	4.6 lb
Connection Type	Blade
Family Brand Name	Bussmann Series
Class	Class RK1
TC Connection	Blade end x blade end
Amperage	300 Amp
Response Time	10 S at 500%
End Type	Blade
Interrupt Rating	100 kA
Sub Brand	Bussmann Series
Blade Dimensions	11.6300 IN X 2.3600 IN X 2.3600 IN
