Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # LPS-RK-350SPI
North Coast Part # 1834321


  • Fuse Indicator: Non Indicating
  • Special Features: Electrically isolated end cap
  • Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
  • Number Of Elements: Dual
  • Connection: Blade end X blade end
  • Quantity: Carton: 1
  • Amperage Rating: 350 A
  • Type: Current-limiting, Time-delay
  • Class: Class RK1
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Large distribution switchboards, power panelboards, motor control centers
  • Diameter: 2.36 IN
  • Packaging Type: Standard


  • UPC: 051712627429
  • Product Length/Depth: 11.63 IN
  • Product Height: 2.36 IN
  • Product Width: 2.36 IN
  • Product Weight: 4.6 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked


UPC 05171262742

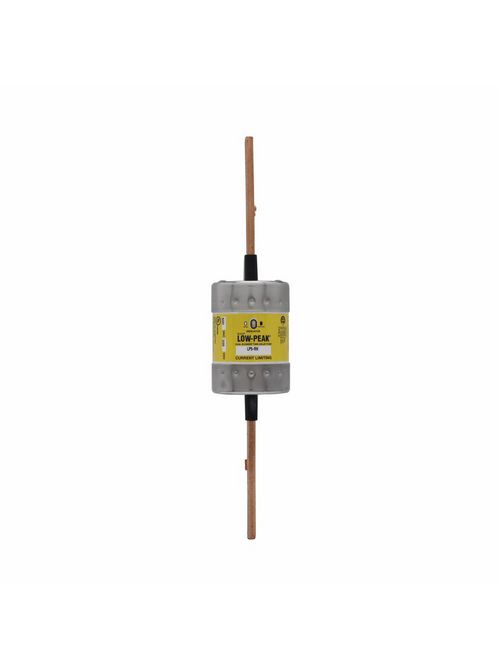

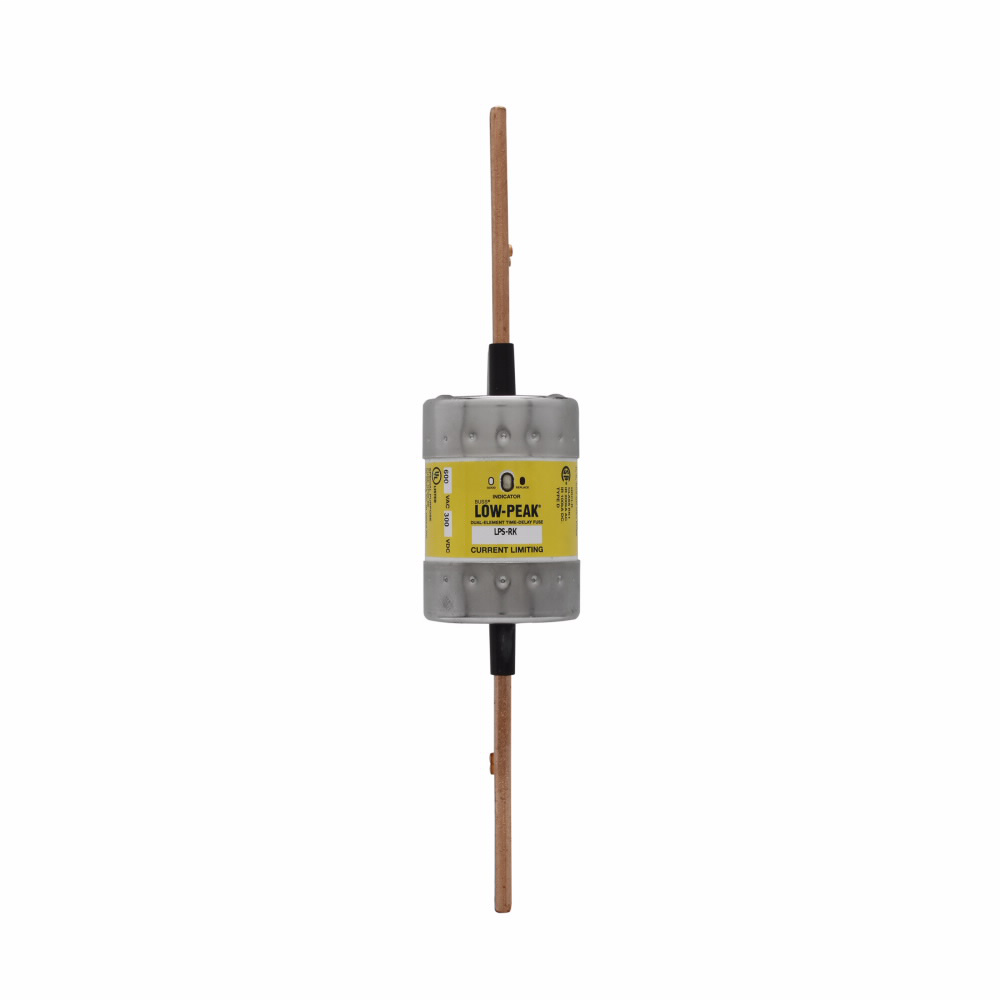

Item Long Description Eaton Bussmann Series LPS-RK Fuse,Low Peak Fuse,Current-Limiting,time delay,Electrically isolated end cap,350 A,600 Vac,300 Vdc,300 kAIC at 600 Vac,100 kAIC at 300 Vdc,Class RK1,Dual element,Indicating,1 unit,LPS-RK1 series
GTiN 00051712627429
Length 11.63 in
Width 2.26 in
Size 2.36 In Diameter X 11.63 In Length
Voltage 300 Volt
Type Current Limiting,Time-Delay
Diameter 2.36 in
Applications Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Machinery Disconnect Switches
Height 2.36 in
Weight 4.6 lb
Connection Type Blade
Family Brand Name Bussmann Series
Class Class RK1
TC Connection Blade End X Blade End
Amperage 350 Amp
Response Time 10 S at 500%
End Type Blade
Interrupt Rating 100 kA
Sub Brand Low-Peak
