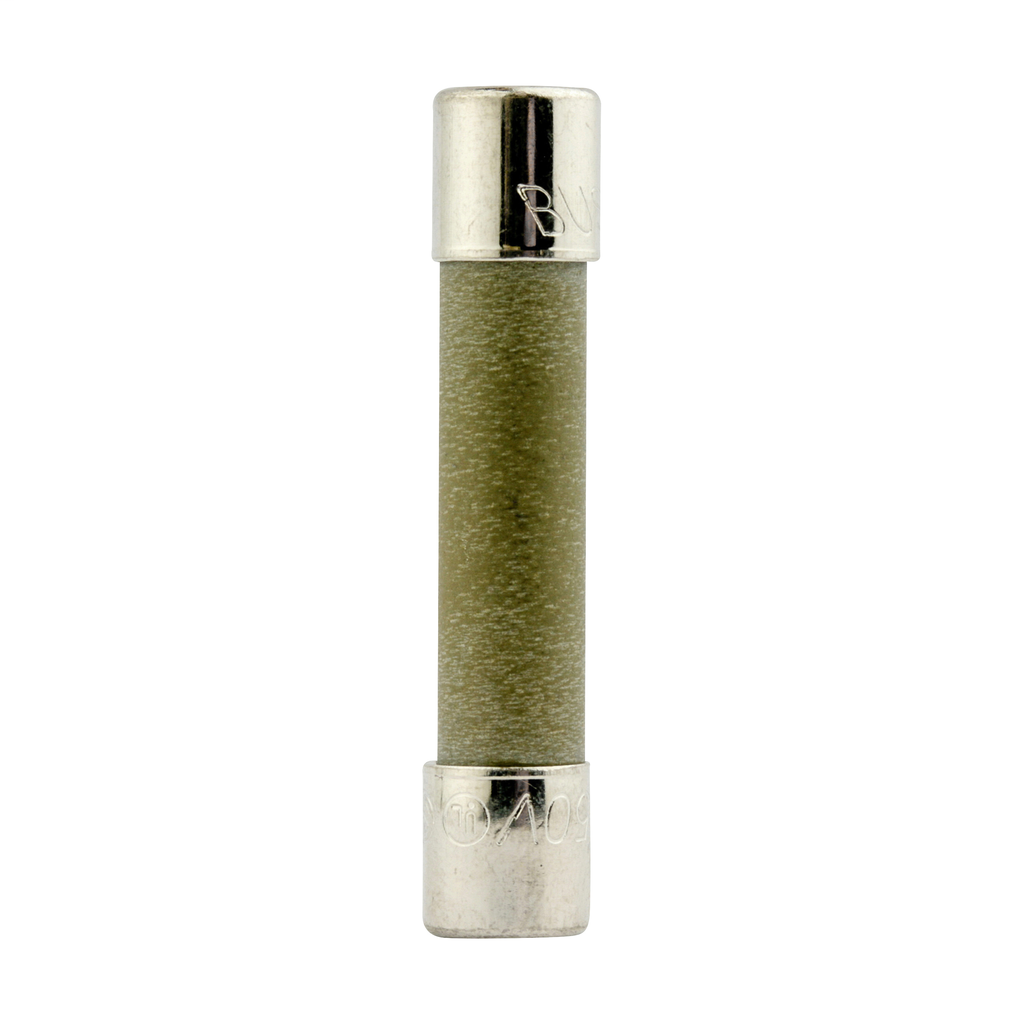

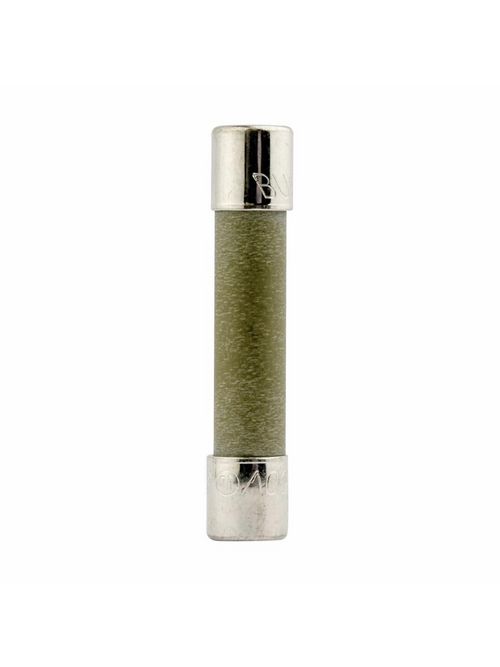

BUSS MDA-25-R ROHS COMPLIANT
Product image thumbnail 0
Product image thumbnail 1
$2.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # MDA-25-R
North Coast Part # 1341601

Specifications

  • Height: 1.25 IN
  • Length: .25 IN
  • Width: .25 IN
  • Weight: .4 LB
  • Type: Electronic
  • Application: Electronic Circuits
  • Voltage Rating: 250 Vac, 125 Vdc
  • Amperage Rating: 25A
  • Interrupt Rating: 1.5 kAIC at 250 Vac, 10 kAIC at 125 Vac/dc
  • Connection: Ferrule end X ferrule end
  • Material Type: Ceramic tube, nickel-plated brass endcaps
  • Packaging Type: Standard
  • Diameter: .25 IN
  • Melting (L2T): Typical: 734.69
  • Resistance: Typical DC cold: .0031 ohms
  • Voltage Drop: Typical: .105 mV
  • Fuse Indicator: Non Indicating
  • Response Time: 60 min. maximum at 135%, 120 secs. maximum at 200%

Overview

UPC 05171254250
GTiN 00051712542500
Length .25 in
Width .25 in
Size 1/4 In Diameter X 1-1/4 In Length
Voltage 125 Volt
Type Electronic
Diameter .25 in
Applications Electronic Circuits
Height 1.25 in
Weight .4 lb
Standard CE,CSA,UL 248-14
Connection Type Ferrule
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 25 Amp
Response Time 120 seconds maximum at 200%,60 minutes maximum at 135%
End Type Ferrule
Interrupt Rating 1.5 kA
