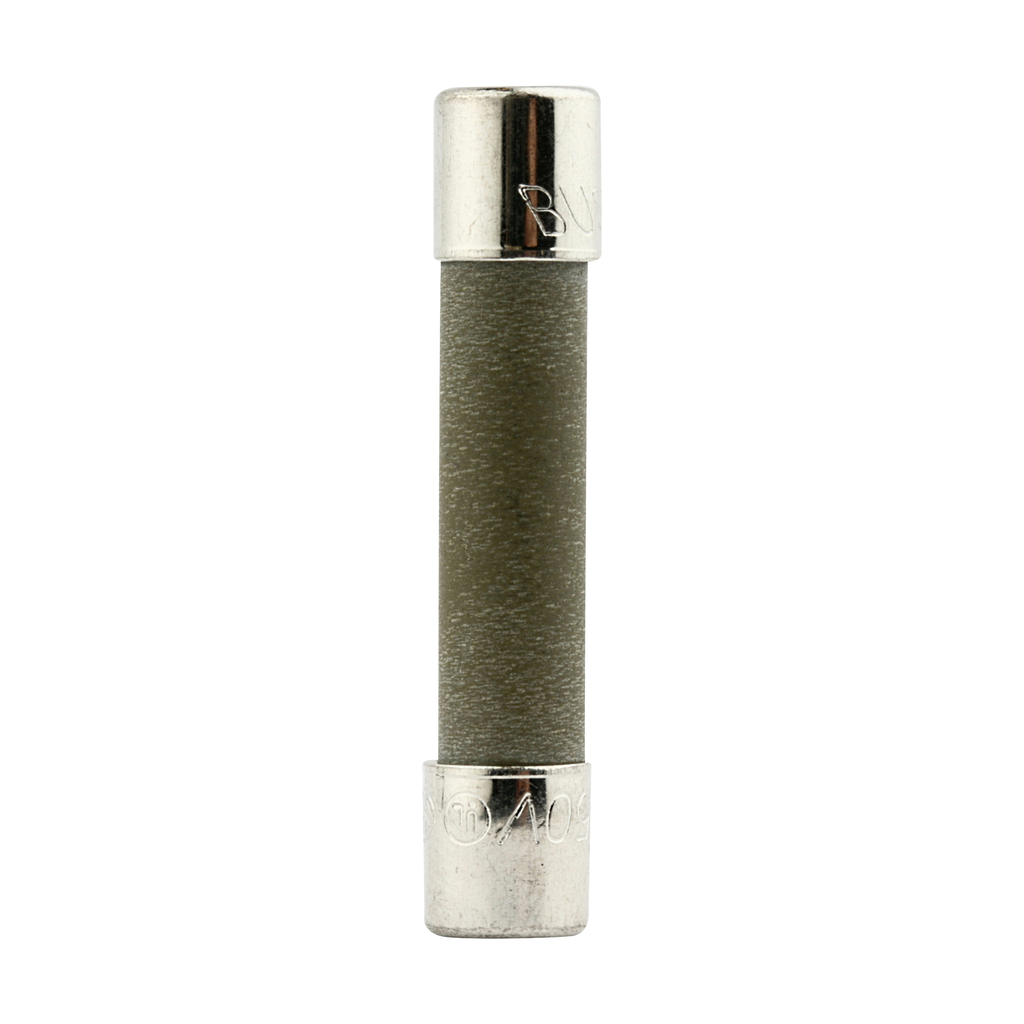

Bussmann Series MDA-8-R Small Dimension Fuse
$2.03/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # MDA-8-R
North Coast Part # 1161808

Specifications

  • Height: .25 IN
  • Length: 1.25 IN
  • Width: .25 IN
  • Weight: .005 LB
  • Type: Electronic
  • Application: Electronic Circuits
  • Voltage Rating: 250V
  • Amperage Rating: 8A
  • Interrupt Rating: 200 AIC at 250 Vac, 10 kAIC at 125 Vac
  • Connection: Ferrule end X ferrule end
  • Material Type: Ceramic tube, nickel-plated brass endcaps
  • Packaging Type: Standard
  • Diameter: .25 IN
  • Melting (L2T): Typical: 1038.4
  • Resistance: Typical DC cold: .013 ohms
  • Voltage Drop: Typical: .134 mV
  • Fuse Indicator: Non Indicating
  • Response Time: 60 min. maximum at 135%, 120 secs. maximum at 200%

Overview

UPC 05171264539
GTiN 00051712645393
Length 1.25 in
Width .25 in
Size 1/4 In Diameter X 1-1/4 In Length
Voltage 250 Volt
Type Electronic
Diameter .25 in
Applications Electronic Circuits
Height .25 in
Weight .005 lb
Standard CE,CSA,UL 248-14
Connection Type Ferrule
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 8 Amp
Response Time 120 seconds maximum at 200%,60 minutes maximum at 135%
End Type Ferrule
Interrupt Rating 10 kA
