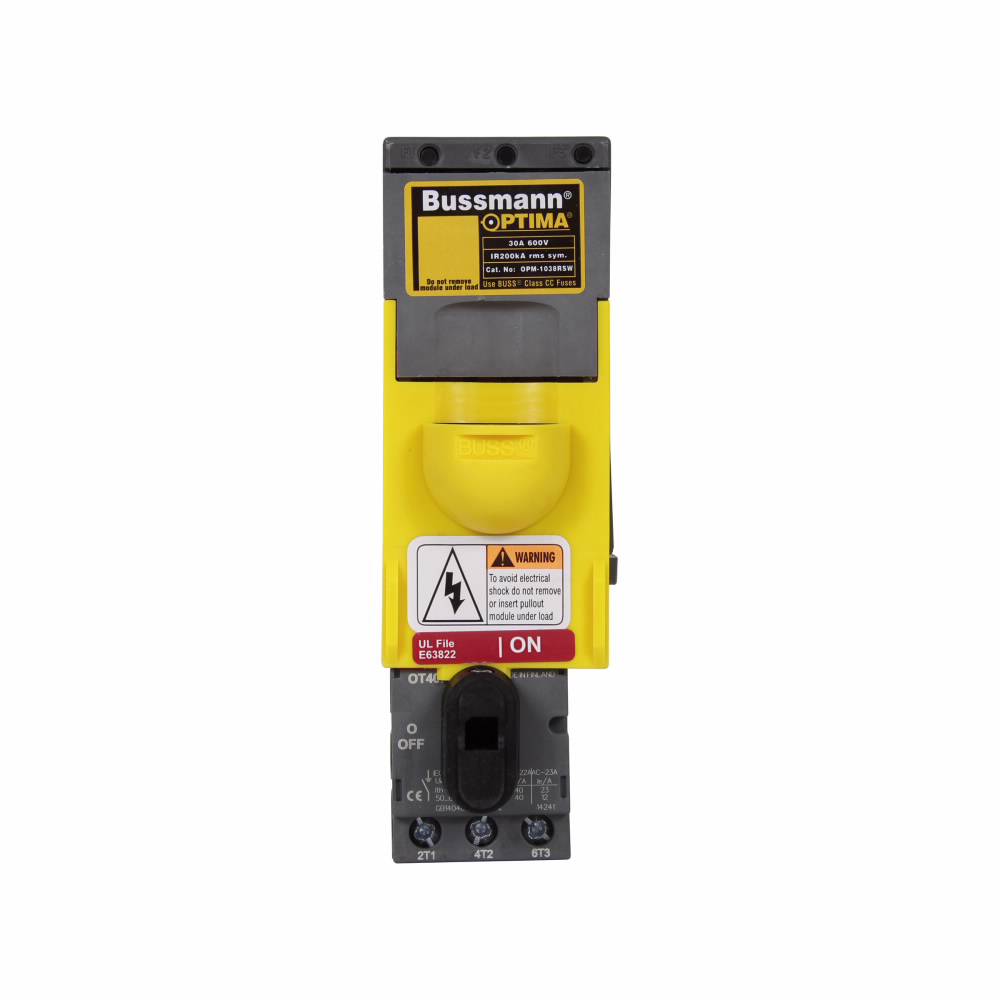

Bussmann Series OPM-1038SW 30 Amp 600 VAC/VDC Non-Rejection Fuse Holder and Disconnect Switch
$267.80/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # OPM-1038SW
North Coast Part # 15684

Specifications

  • Interrupt Rating: 100 kAIC
  • Type: Fuse Holders
  • Connection: #8-18 AWG stranded, #10-18 AWG solid
  • Material Type: Thermoplastic
  • Voltage Rating: 600V (UL/CSA), 660V (IEC)
  • Amperage Rating: 30A (UL/CSA), 32A (IEC)
  • Number of Poles: Three-pole

General

  • UPC: 051712797214
  • Product Length/Depth: 1.76 IN
  • Product Height: 5.72 IN
  • Product Width: 3.74 IN
  • Product Weight: .8 LB
  • Warranty: Not Applicable
  • Compliances: RoHS Compliant
  • Certifications: CSA Certified

Overview

UPC 05171279721
GTiN 00051712797214
Length 1.76 in
Size 1.76 In Width X 3.74 In Depth X 5.72 In Height
Color Gray
Voltage 660 Volt
Type Fuse Holders
Material Thermoplastic
Applications Industrial Control, Process Control Systems, Automated Warehouse Systems, Individual Control Circuits
Mounting Type 35 Mm DIN Rail Or #8 Screw
Height 5.72 in
Weight .8 lb
Standard UL 508,CSA C22.2,IEC
Connection Type #8-18 AWG Stranded, #10-18 AWG Solid
Family Brand Name Bussmann Series
Amperage 32 Amp
Number of Poles 3
Interrupt Rating 100 kA
Sub Brand Optima
