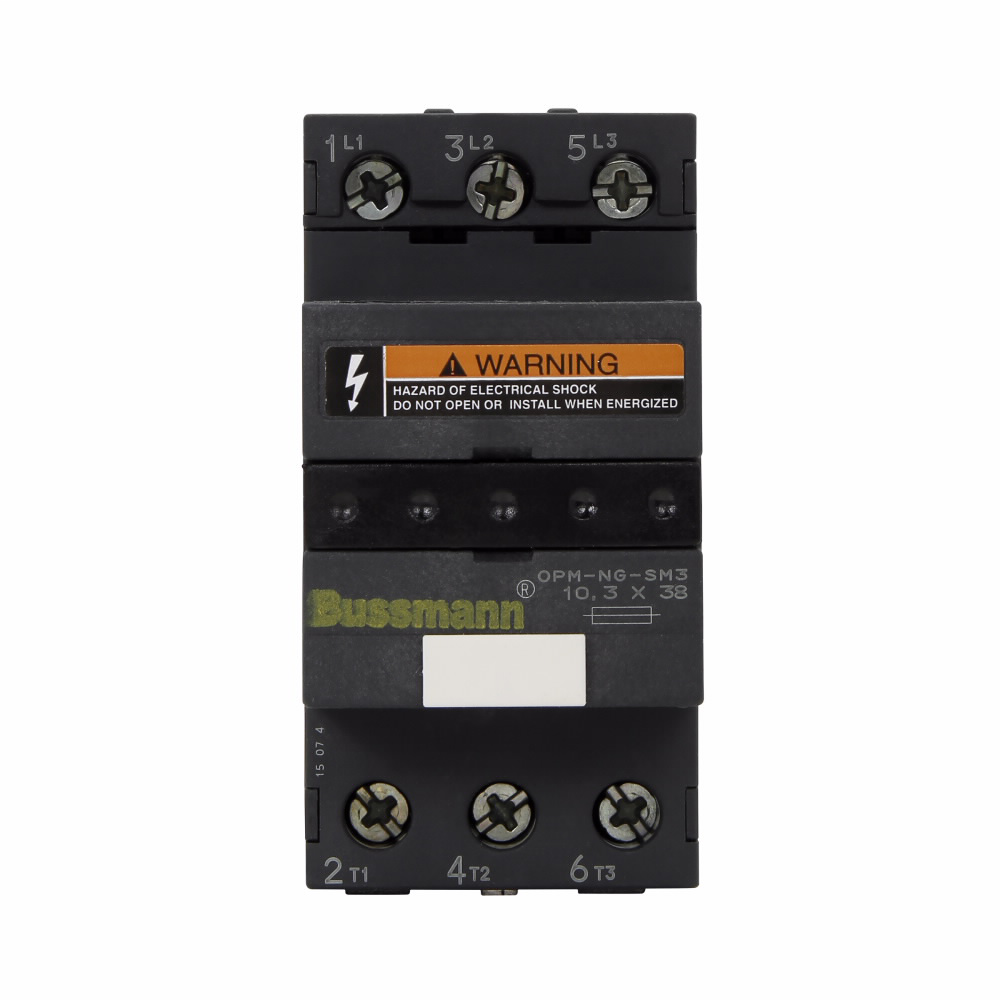

BUSS OPM-NG-SM3 45MM 3 PHASE FUSE H
Product image thumbnail 0
Product image thumbnail 1
$123.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # OPM-NG-SM3
North Coast Part # 600745

Specifications

  • Interrupt Rating: 200 kAIC
  • Type: Fuse Holders
  • Connection: Philslot Screws/Pressure Plate
  • Material Type: Thermoplastic
  • Voltage Rating: 600 Vac or less (UL/CSA 30A), 690 Vac or less (IEC 32A)
  • Amperage Rating: 0-30A
  • Number of Poles: Three-pole

General

  • UPC: 051712674164
  • Product Length/Depth: 3.75 IN
  • Product Height: 3 IN
  • Product Width: 2 IN
  • Product Weight: .354 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: Contact Manufacturer

Overview

UPC 05171267416
GTiN 00051712674164
Length 3.75 in
Size 2.70 In Length X 1.80 In Width X 3.50 In Height
Operating Temperature 65 C
Voltage 30 A
Type Fuse Holders
Material Plated Steel Saddle Screw,Stainless Steel Din Rail Spring,Thermoplastic Housing,Tin Plated Copper Alloy Clip
Mounting Type 35 Mm DIN Rail Or #8 Screw
Height 3 in
Weight .354 lb
Standard CSA C22.2,UL 512
Connection Type Philslot Screws/Pressure Plate
Family Brand Name Bussmann Series
TC Connection Philslot Screws/Pressure Plate
Amperage 0-30 Amp
Number of Poles 3
Interrupt Rating 200 kA
Sub Brand Optima
