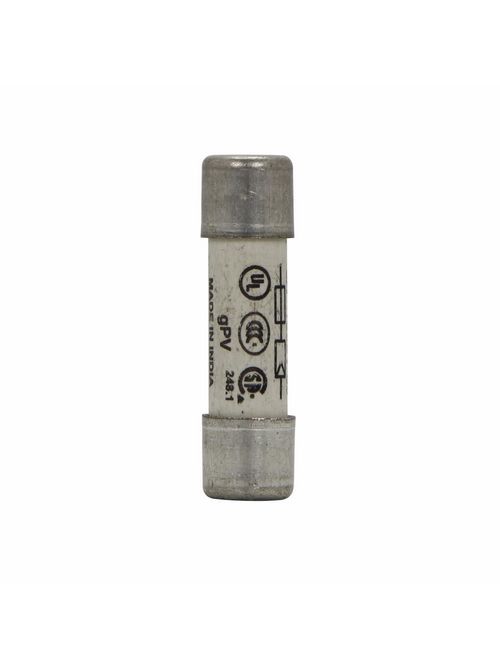

BUSS PV-5A10F 5AMP 1000V DC SOLAR
Product image thumbnail 0
Product image thumbnail 1
$41.15/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # PV-5A10F
North Coast Part # 878427

Specifications

  • Interrupt Rating: 50 kAIC
  • Release Characteristic: Other
  • Amperage Rating: 5A
  • Accessories: BM Series, CHPV, 1A3400 Fuseclips, HPV
  • Amperage Rating Numeric: 5 A
  • With Striker: No
  • Voltage Rating: 1000 Vdc
  • Diameter: 10 MM
  • Total I2T: Total at 1000V: 50
  • Fuse Indicator: Non Indicating
  • Special Features: 1.3 x In, Time constant: 1-3 ms
  • Construction Size: 10 x 38 mm
  • Color: Yellow
  • Connection: Ferrule end x ferrule end
  • Quantity: 10
  • Material Type: Ceramic body
  • Watt Losses: 1W
  • Utilization category: Other
  • Type: Fuse
  • Used With: BM Series, CHPV, 1A3400 Fuseclips, HPV
  • Fuse Shape: cylindrical
  • Breaking Capacity: 50 A
  • Class: Class gPV
  • Pre Arc (I2T): 19
  • Terminal Material: Tin plated Brass
  • Application: Solar panel combiner boxes
  • Voltage Rating Numeric: 1000 V
  • Voltage Type: DC
  • Packaging Type: Standard

General

  • UPC: 051712245203
  • EAN: 5027590506328
  • Product Length/Depth: 38 MM
  • Product Height: 10.4 MM
  • Product Width: 10.4 MM
  • Product Weight: 9.4 G
  • Warranty: Not Applicable
  • Compliances: RoHS Compliant
  • Certifications: IEC Rated

Overview

UPC 05171224520
GTiN 00051712245203
Length 38 mm
Size 10.30 mm Diameter X 38.00 mm Length
Color Yellow
Voltage 1000 Volt
Type Fuse
Diameter 10 mm
Applications Generation - Renewable Energy - Alternative EnergyGeneration - Renewable Energy - Storage SystemsGeneration - Renewable Energy - Solar
Height 10.4 mm
Weight 9.4 g
Standard CCC,CE,CSA,IEC 60269,UL 2579
Connection Type Ferrule
Family Brand Name Eaton
Class Class GPV
TC Connection Ferrule end x ferrule end
Amperage 5 Amp
End Type Ferrule
Interrupt Rating 50 kA
Material Ceramic
Blade Dimensions 1.4961 IN X 0.4095 IN X 0.4095 IN
Sub Brand Bussmann Series
