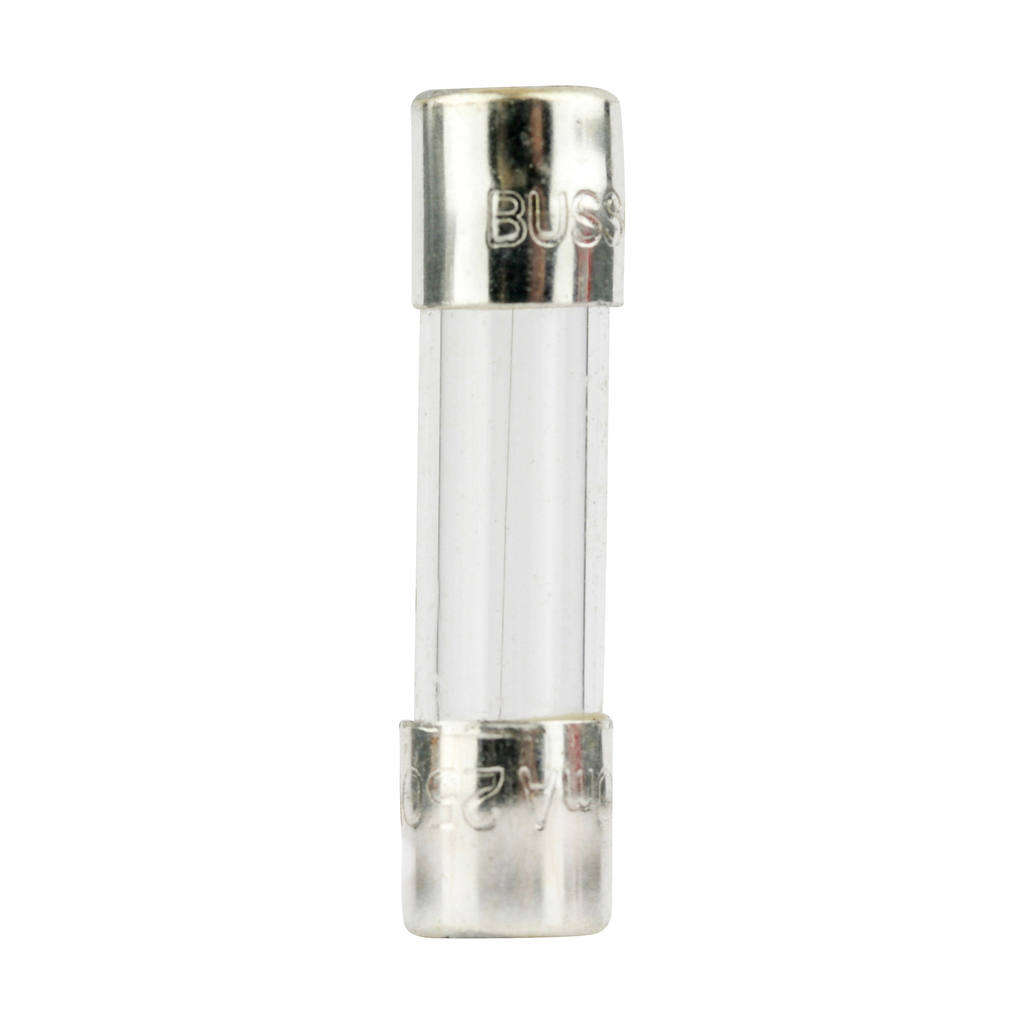

BUSS S506-4-R S506 4A BUSS FUSE
$1.93/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # S506-4-R
North Coast Part # 1165533

Specifications

  • Type: Small dimension, European (IEC)
  • Application: Electronic circuits
  • Amperage Rating: 4A
  • Voltage Rating: 250 Vac or less, 32 Vdc (self certified)
  • Interrupt Rating: 35A at 250 Vac
  • Fuse Indicator: Non Indicating
  • Packaging Type: Standard
  • Voltage Drop: Maximum: 67 mV
  • Material: Glass tube, nickel-plated brass endcaps
  • Frequency Rating: 50 Hz
  • Connection: Ferrule end X ferrule end
  • Height: .25 IN
  • Length: .75 IN
  • Width: .25 IN
  • Weight: .002 LB

Product Compliance

  • CCC Marked
  • VDE
  • RoHS Compliant

Overview

UPC 05171263977
GTiN 00051712639774
Length .75 in
Width .25 in
Size 5.20 mm Diameter X 20.00 mm Height
Voltage 250 Volt
Type European (IEC),Small Dimension
Material Brass,Glass,Nickel-Plated
Applications Electronic Circuits
Height .25 in
Weight .002 lb
Standard BSI,CCC,CSA,IMQ,PSE/JET,SEMKO,UL (CANADA AND US),UR,VDE
Frequency 50 Hz
Connection Type Ferrule End X Ferrule End
Family Brand Name Bussmann Series
TC Connection Ferrule End X Ferrule End
Amperage 4 Amp
Interrupt Rating 35 A
Indicator Non Indicating
