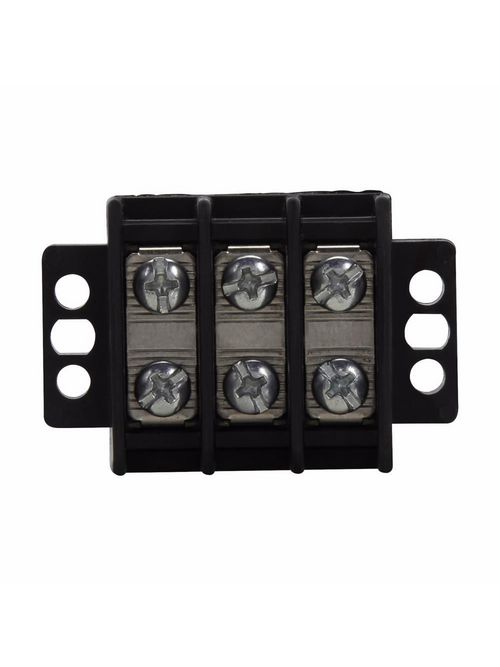

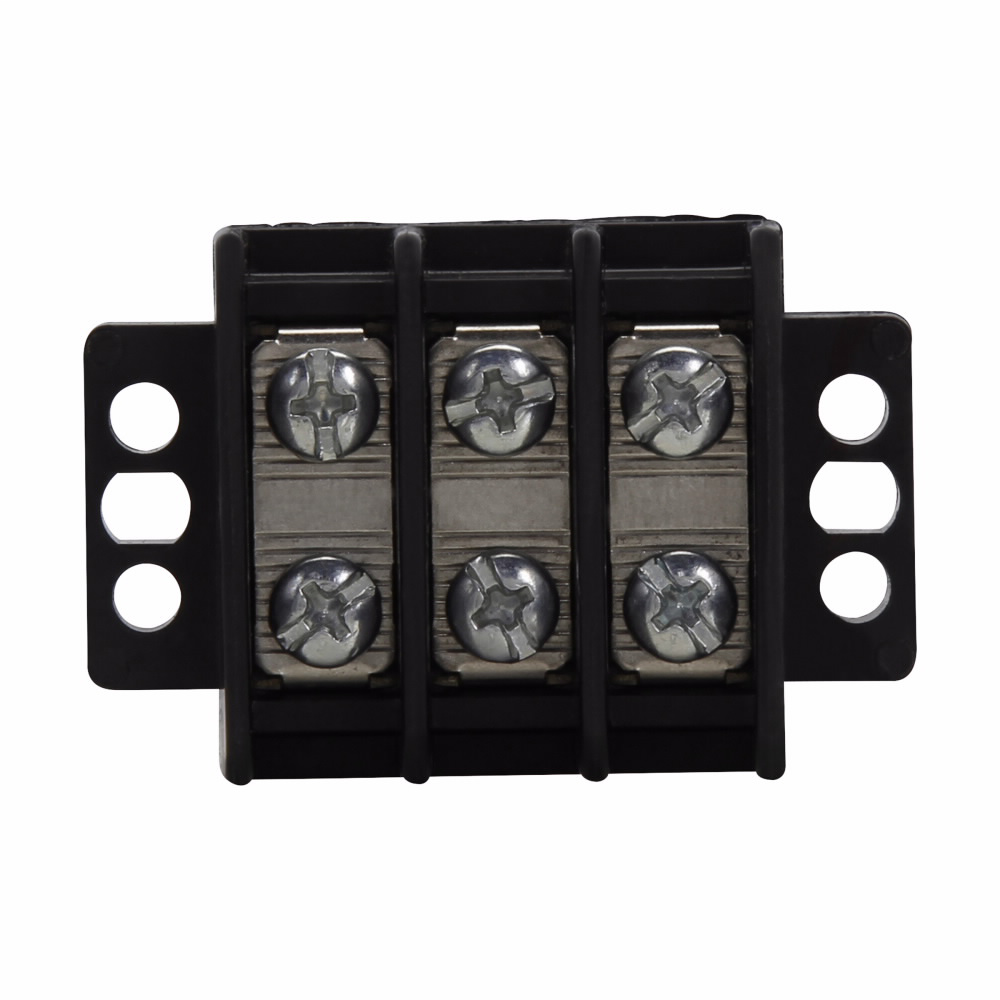

BUSS TB200HB-08 BARRIER BLOCK
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$8.45/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # TB200HB-08
North Coast Part # 673300

Specifications

  • Mounting: Screw
  • Special Features: Breakdown voltage 4800V
  • Type: Double row, high barrier
  • Color: Black
  • Connection: #6-32 TPI Screw
  • Material: Tin-plated brass terminal, Zinc-plated Steel philslot screw
  • Operating Temperature: -40° to 130°C
  • Voltage Rating: 600V
  • Amperage Rating: 30A
  • Torque Rating: 9 lb-in
  • Number Of Poles: Eight-pole

General

  • UPC: 051712602310
  • Product Length/Depth: 2.51 IN
  • Product Height: .75 IN
  • Product Width: 1.37 IN
  • Product Weight: .5 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: Contact Manufacturer

Overview

UPC 05171260231
GTiN 00051712602310
Length 2.51 in
Width 1.37 in
Color Black
Operating Temperature -40 To 130 C
Voltage 600 Volt
Type Double Row,High Barrier
Material Brass,Tin-Plated
Mounting Type Screw
Height .75 in
Weight .5 lb
Threads Per Inch 32
Screw Size #6
Connection Type Screw
Screw Type Phil-Slot
Family Brand Name Eaton
Amperage 30 Amp
Number of Poles 8 Pole
Screw Material Zinc-Plated
Applications Stationary Mach Equip In Factory - Robotics
Blade Dimensions 2.5100 IN X 1.3700 IN X 0.7500 IN
