Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # TB300-16
North Coast Part # 680845



  • UPC: 051712194990
  • Product Length/Depth: 3.25 IN
  • Product Height: .81 IN
  • Product Width: 1.33 IN
  • Product Weight: .116 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: Contact Manufacturer


UPC 05171219499

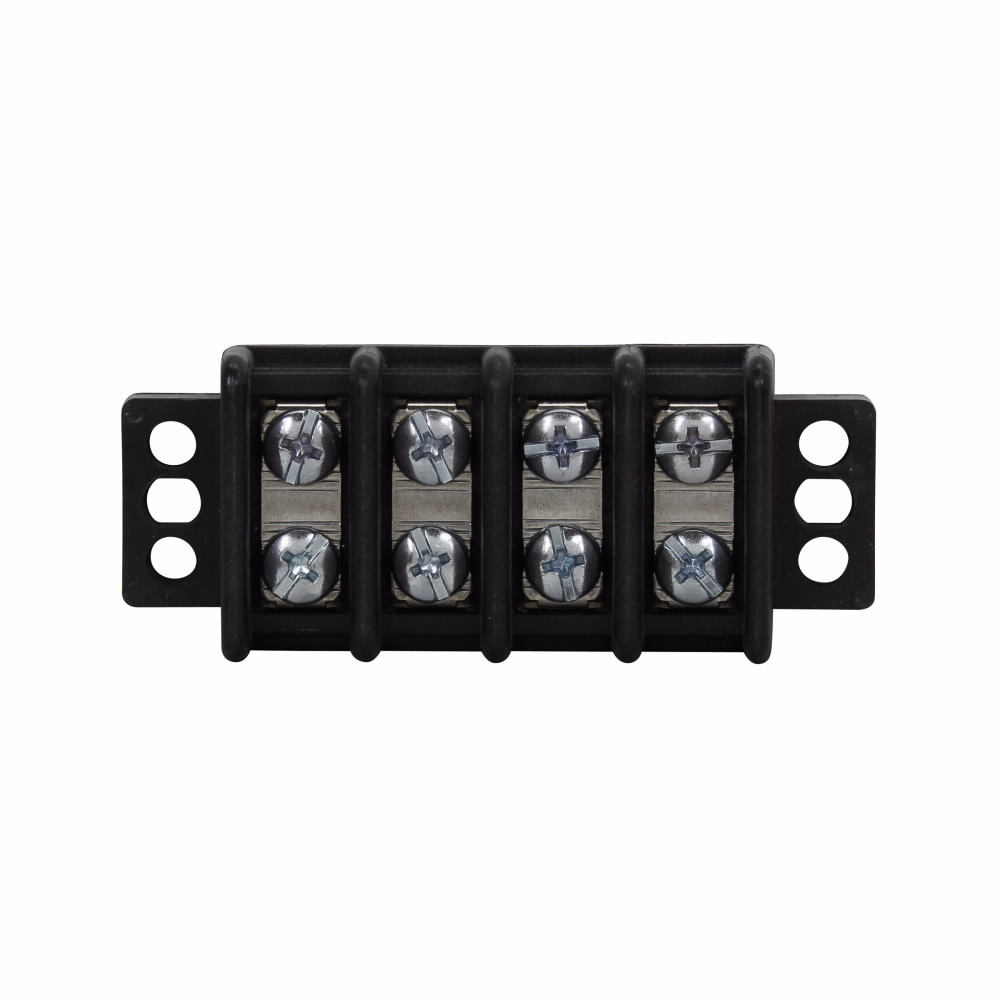

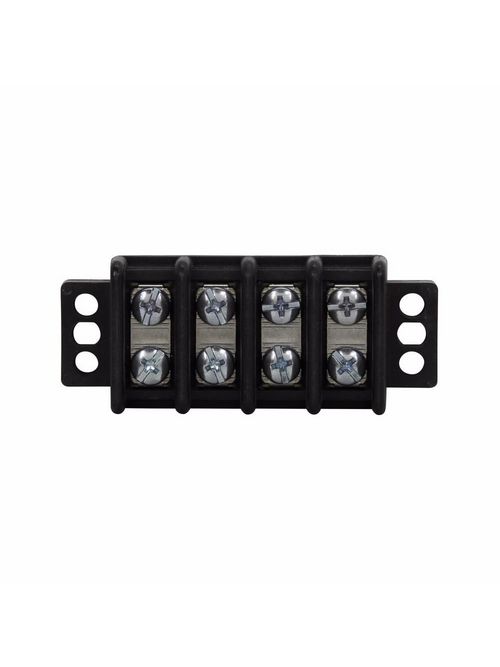

Item Long Description 30AMP 600V 16PL DBL ROW TERM BLCK
GTiN 00051712194990
Length 3.25 in
Width 1.33 in
Size 9.99 In Length X 1.33 In Width X 0.81 In Height
Color Black
Operating Temperature -40 To 130 C
Voltage 600 Volt
Type Barrier,Double Row
Material Tin-Plated Brass
Mounting Type Panel
Height .81 in
Weight .116 lb
Threads Per Inch 32
Screw Size #8
Standard CE,CSA,IEC,UL
Connection Type #8-32 TPI Screw
Base Material Molded Thermoplastic
Screw Type Phil-Slot
Family Brand Name Bussmann Series
TC Connection #8-32 TPI Screw
Amperage 30 Amp
Number of Poles 16
Screw Material Zinc-Plated Steel
Applications Stationary Mach Equip In Factory - Robotics
Blade Dimensions 3.2500 IN X 1.3300 IN X 0.8100 IN
