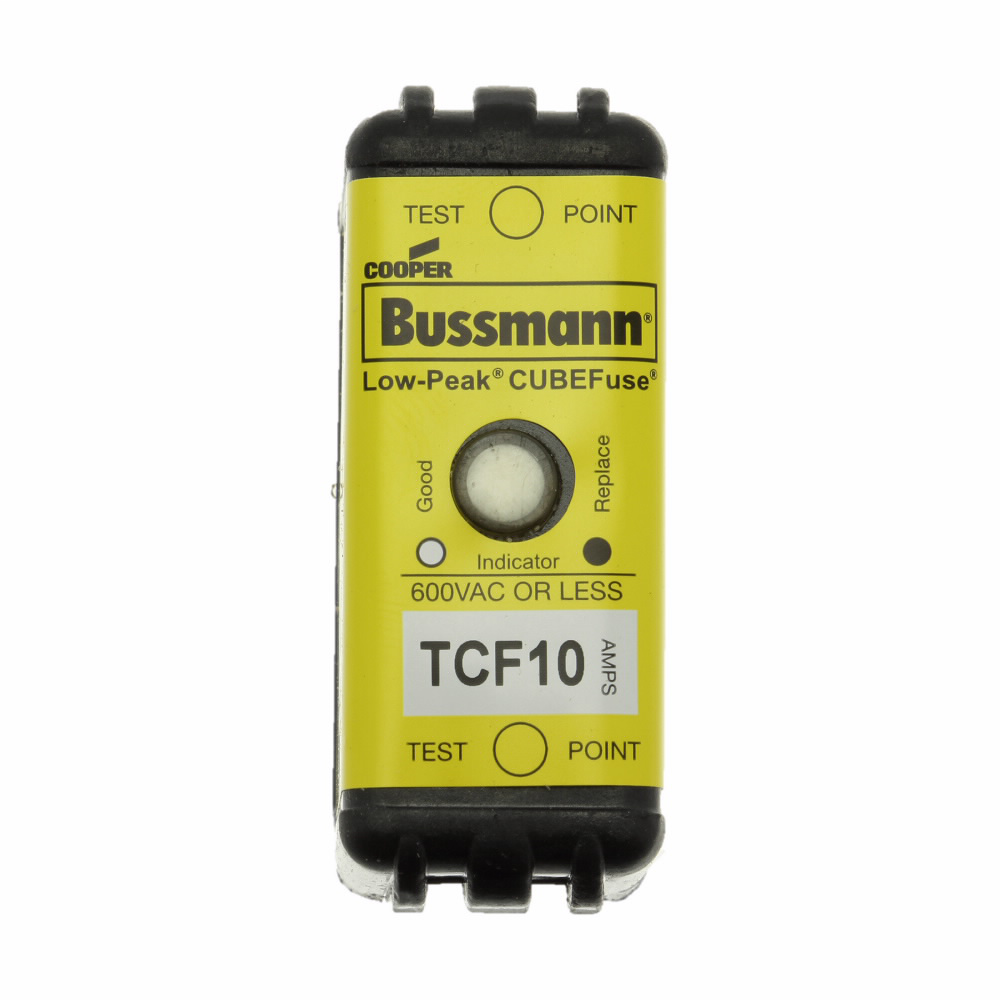

Bussmann Series TCF10 10 Amp Fuse Assembly
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$60.53/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # TCF10
North Coast Part # 343892

Specifications

  • Fuse Indicator: With Indicator
  • Special Features: Finger safe
  • Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
  • Number Of Elements: Dual
  • Color: Black body
  • Connection: Blade End
  • Response Time: 10 s at 500%
  • Material Type: Glass filled PES
  • Amperage Rating: 10A
  • Frequency Rating Maximum: 60 HZ
  • Mounting: 35 mm Din Rail, chassis
  • Fuse Type: Time-Delay, class CF
  • Type: Time-delay fuse
  • Used With: TCFH30N, CCP2-3-30CF
  • Amperage Rating Numeric: 10 A
  • Frequency Rating Minimum: 50 HZ
  • Class: Class CF
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Electrical panelboards, industrial control, machinery disconnects, required finger safe systems
  • Voltage Rating Numeric: 600 V
  • Packaging Type: Standard

General

  • UPC: 051712614986
  • EAN: 5027590184397
  • Product Length/Depth: 1.88 IN
  • Product Height: 1.75 IN
  • Product Width: .75 IN
  • Product Weight: .08 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: UL Listed

Overview

UPC 05171261498
GTiN 00051712614986
Length 1.88 in
Color Black
Voltage 300 Volt
Type Time-delay Fuse
Material Glass Filled PES
Applications Ind Facilities & Factories - Facility: Safety and Security SystemsDatacenters - Facilities: Power DistributionCommercial / Institutional Buildings / Structures - Critical PowerInd Facilities & Factories - Facility: Power Distribution and ControlStationary Machinery and Equipment Outside Factory - HVAC
Mounting Type 35 mm
Weight .08 lb
Standard CE,CSA,UL
Connection Type Blade End
Family Brand Name Bussmann Series
Class CF
Amperage 10 Amp
Response Time 10 S At 500%
Interrupt Rating 100 kA
Element Dual
Sub Brand Bussmann Series
Height 1.75 in
TC Connection Blade End
Blade Dimensions 1.8800 IN X 0.7500 IN X 1.7500 IN
