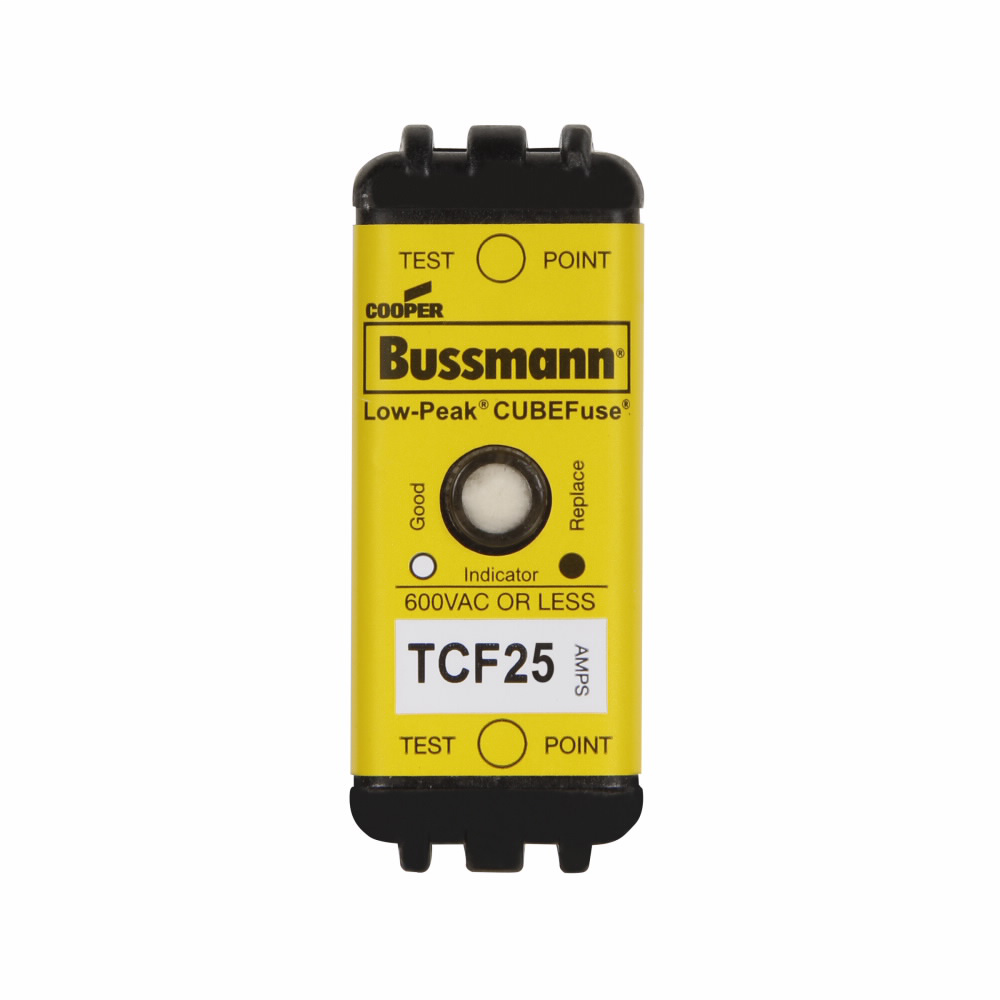

Bussmann Series TCF25 25 Amp Cubefuse
Product image thumbnail 0
Product image thumbnail 1
$67.74/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # TCF25
North Coast Part # 487176

Specifications

  • Fuse Indicator: With Indicator
  • Special Features: Finger safe
  • Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
  • Number Of Elements: Dual
  • Color: Black body
  • Connection: Blade End
  • Response Time: 10 s at 500%
  • Material Type: Glass filled PES
  • Amperage Rating: 25A
  • Frequency Rating Maximum: 60 HZ
  • Mounting: 35 mm Din Rail, chassis
  • Fuse Type: Time-Delay, class CF
  • Type: Time-delay fuse
  • Used With: TCFH30N, CCP2-3-30CF
  • Amperage Rating Numeric: 25 A
  • Frequency Rating Minimum: 50 HZ
  • Class: Class CF
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Electrical panelboards, industrial control, machinery disconnects, required finger safe systems
  • Voltage Rating Numeric: 600 V
  • Packaging Type: Standard

General

  • UPC: 051712615020
  • EAN: 5027590116961
  • Product Length/Depth: 1.88 IN
  • Product Height: 1.75 IN
  • Product Width: .75 IN
  • Product Weight: .08 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: UL Listed

Overview

UPC 05171261502
Item Long Description 25A 600V Special Purpose CUBEFUSE Fuse, Dual Element Time Delay
GTiN 00051712615020
Type Time Delay, Inrush Current Withstand
Material Glass Filled PES
Applications Electrical Panelboards, Industrial Control, Machinery Disconnects, Required Finger Safe Systems
Family Brand Name Bussmann Series
Response Time 10 S at 500%
Interrupt Rating 300000 Amp (RMS Symmetrical UL), 200000 Amp (RMS Symmetrical CSA), 100000 Amp (DC UL/CSA)
Sub Brand Edison
Length 1.88 in
Color Black
Voltage 600 Volt
Mounting Type 35 mm
Height 1.75 in
Weight .08 lb
Connection Type Blade End
Amperage 25 Amp
Class Class CF
TC Connection Blade End
Blade Dimensions 1.8800 IN X 0.7500 IN X 1.7500 IN
